Custom Aluminum CNC Turning and Milling Enquiries for Stepped Round Parts with 5-Axis Setup Review
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeMilling
-
Material CapabilitiesBrass, Aluminum, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, OtherMicro Machining or NotMicro Machining
-
Model NumberS2411MaterialHardened Metals
-
ProcessCNC Machining Milling TurningSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing Format2D/(PDF/CAD/DWG/DXF)3D(IGES/STEP/VDA)ColorCustomized Panton Color or Ral Color
-
Processing TypeAxis CNC Machining Service

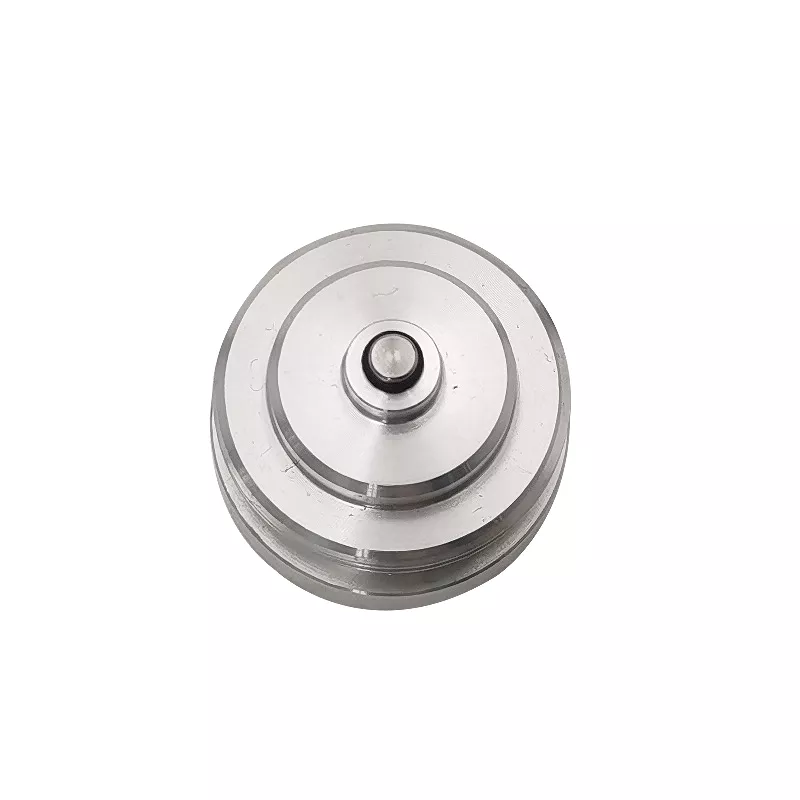

Concentric steps and raised center

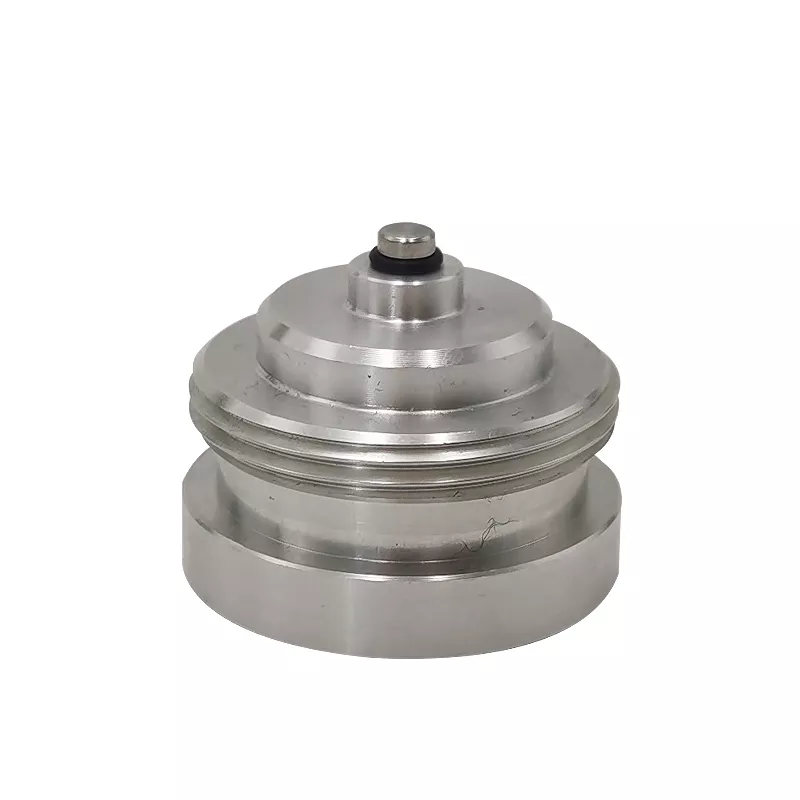

The main example has several circular diameter changes, grooves around the upper body and a smaller raised feature at the center. Define the axial section and seating faces, including the relationship between the outer steps and central feature. Identify any inserts or companion parts included in the requested supply.
Model S2411 lists CNC milling and turning with aluminum among machining capabilities. Confirm the actual grade, quantities and drawing in PDF, CAD, DWG, DXF, IGES, STEP or VDA format. State any five-axis setup requirement for review. Specify mating dimensions and finish; the profile alone does not establish a radiator connection, equipment fitment or pressure rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
