Custom Aluminum Female Pin CNC Parts | 1 Inch Anodized Marine Fitting Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)
Forked end with a transverse pin interface

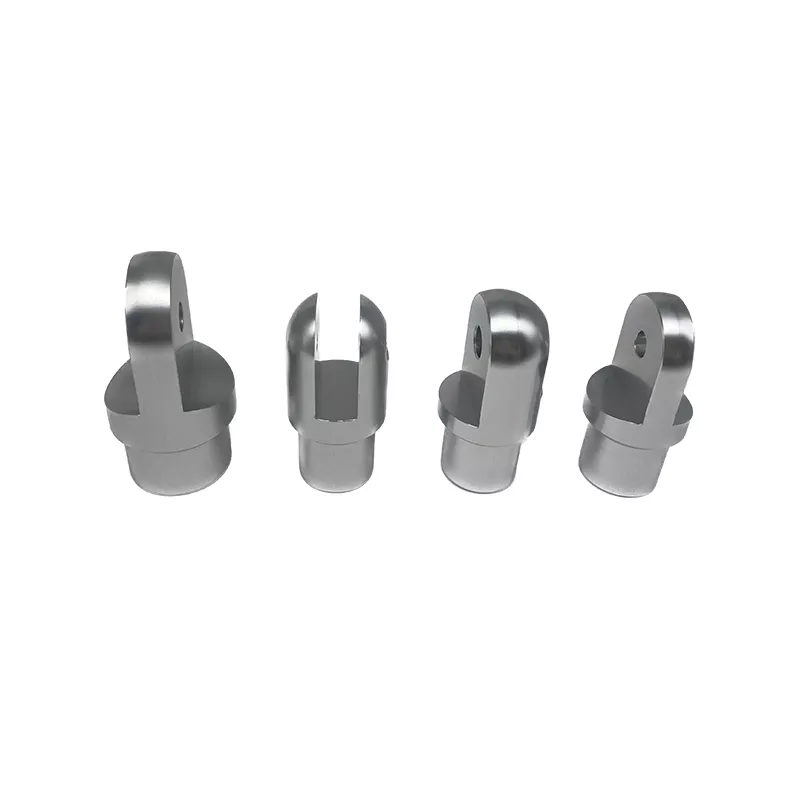

The example has two projecting arms, a transverse opening and a stepped cylindrical mounting end. Define arm spacing, hole alignment and the mounting diameter from common references.
Clarify the nominal one-inch requirement
Identify which interface is intended by the title's one-inch wording and provide the actual dimensions. The photograph and general custom-size entry do not establish a standard mating fit.
Specify the aluminum alloy, quantities and anodized finish. Include inspection criteria for the arms, bore and mounting section, with any service or load tests required for a marine assembly. No rated capacity or corrosion performance is verified by the image.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
