Custom Precision Aluminum Alloy CNC Milling and Drilling Parts with Stepped Bores
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2004453Product namehardware machined part aluminum cnc machining part
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

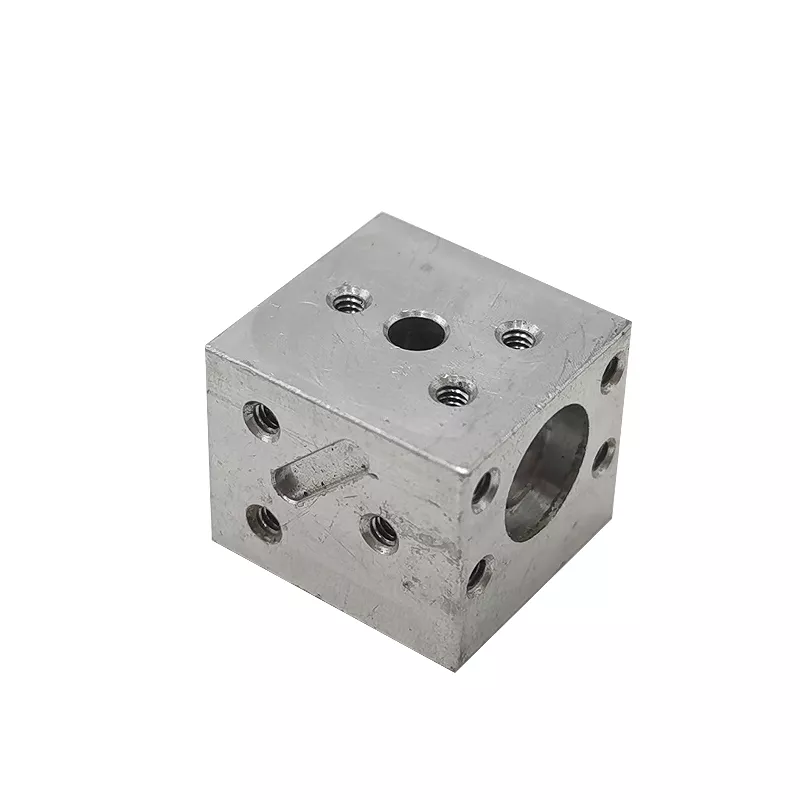

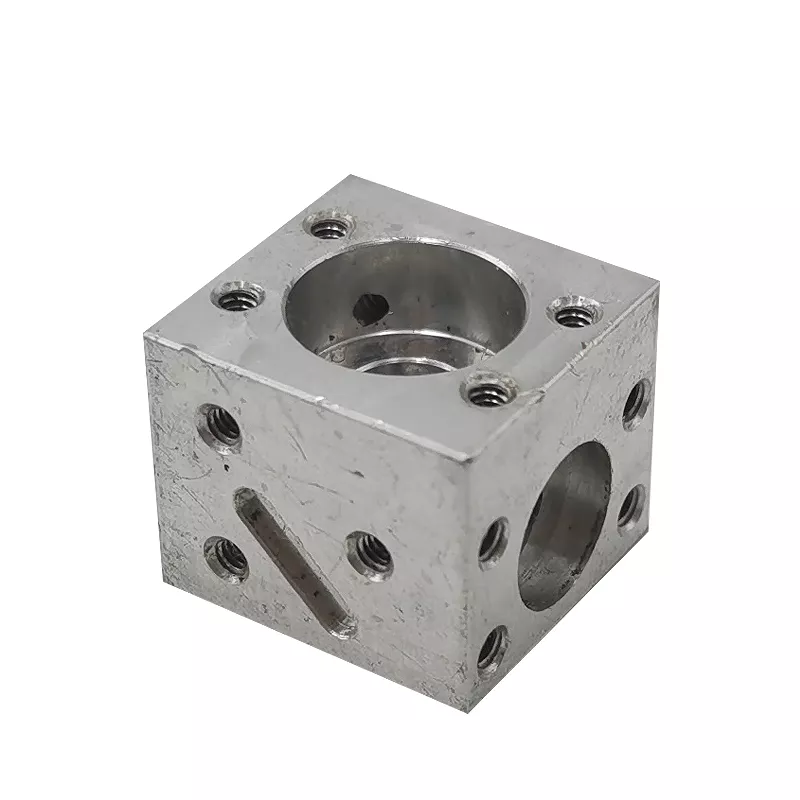

This aluminum hardware example combines a stepped central bore with a side opening, threaded fixing holes and an oblong side slot. CNC milling and drilling define several connected features within one block, making their positions relative to each other an essential part of the drawing.
Specify the connected features
Show the bore diameters and depths, side-opening location, thread details and slot dimensions. Select references for checking bore alignment and the relationship between the fixing holes and fitted faces. Mark edges requiring deburring, particularly where openings intersect.
Material and supply condition
S2004453 is listed in aluminum alloy with customized sizes. Anodizing, oxide finishing and powder coating are available for review; specify surfaces requiring masking or checks after finishing. PDF, CAD, IGES and STEP drawing formats are listed, with a minimum order of 100 pieces. Include quantity, alloy selection and drawing revision for the manufacturing quotation.
