Custom CNC Turning and Machining Parts with Forked Ends and Single Hole Mounting Tabs
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2407Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm

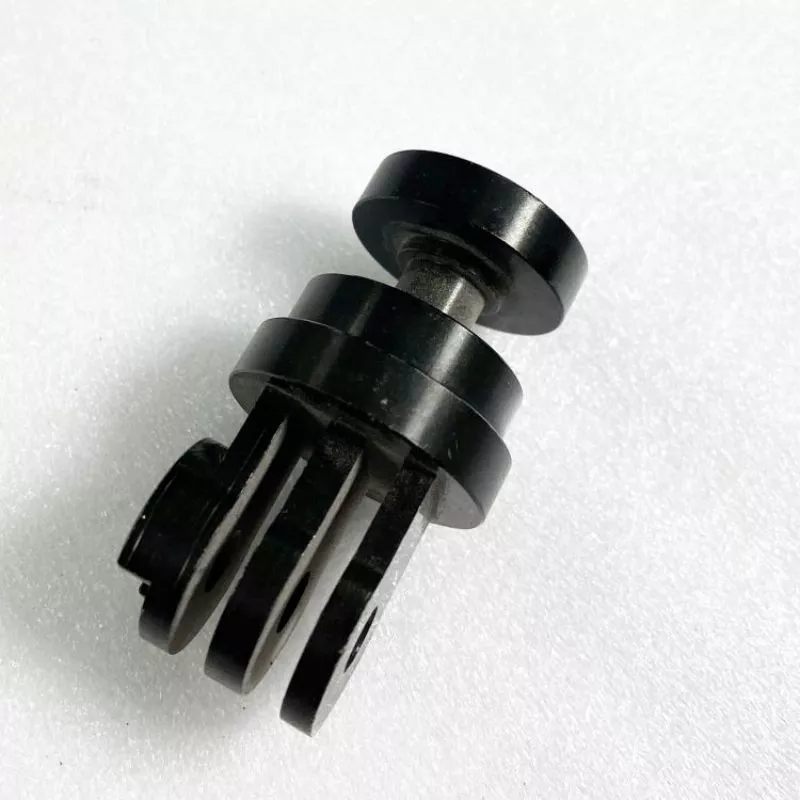

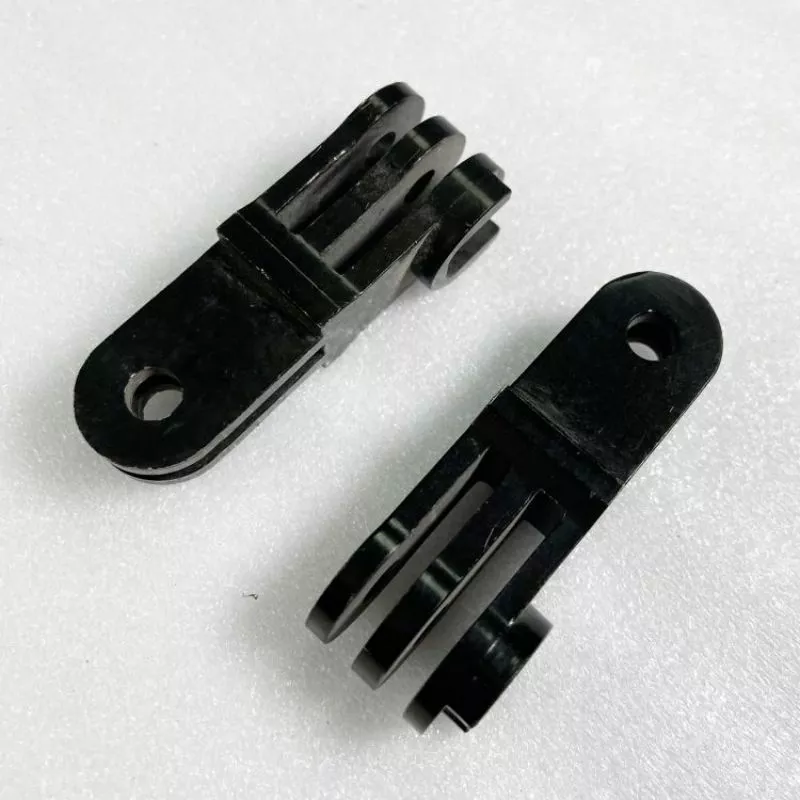

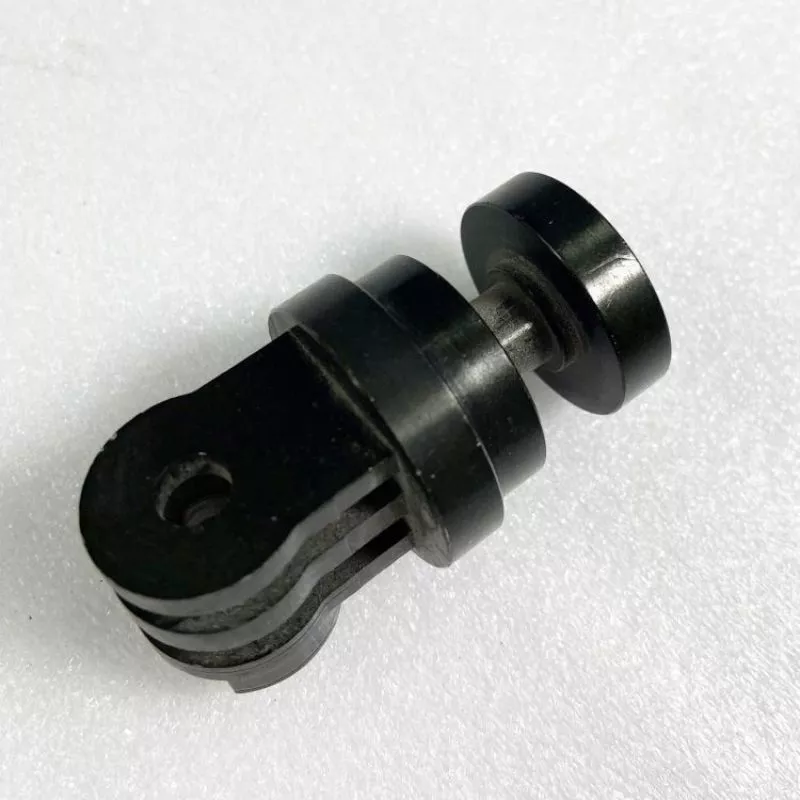

The main examples have forked ends, narrow spaces between the lugs and single-hole tabs at the opposite ends. Their mounting geometry needs to be defined as a complete component, including the relationship between the fork bores and tab hole.
Custom turning and secondary machining
Show lug thickness, internal spacing and bore alignment, then identify any turned features and fitted faces. S2407 lists aluminum alloy, CNC machining, deburring and surface treatment, with MOQ 100 pieces. Submit PDF, CAD, IGES or STEP drawings and specify the required finish, quantities and drawing revision.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
