Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2012Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

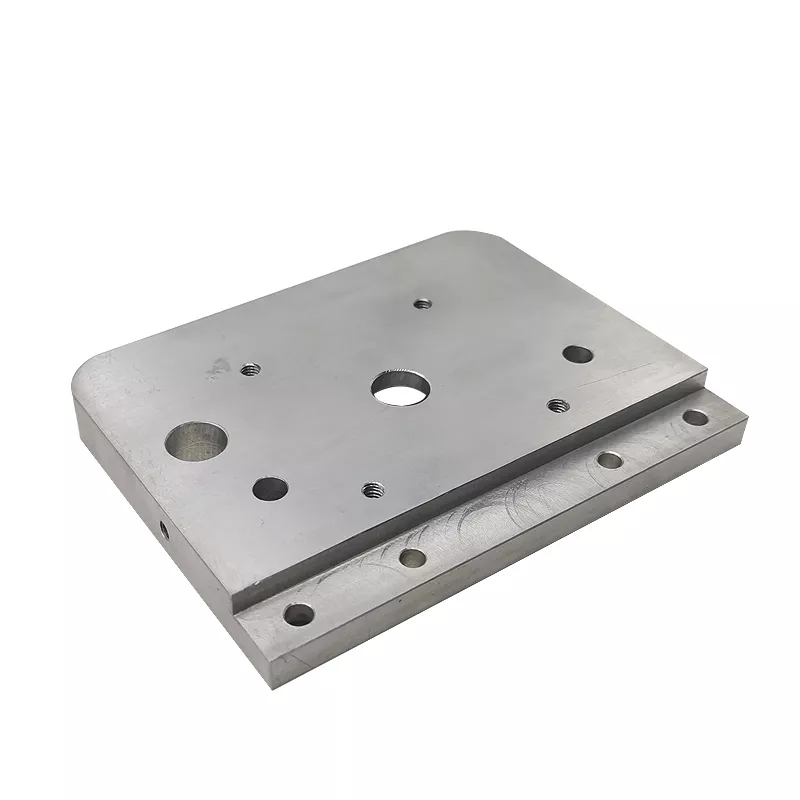

A recessed center within a drilled mounting plate
The current example is a broad plate with a central pocket, a round opening and several fixing holes. Define the plate reference face, pocket depth and hole pattern on its drawing.
Separate a shaft enquiry from the plate example
If a turned shaft is required, provide its own axis, diameters and end features. Specify aluminum or steel grade, or titanium separately for review; the general aluminum material field does not establish every title option.
Include quantities, finish and inspection dimensions at the pocket, bore and mounting contacts. The photograph does not define a shaft design or verify a titanium component.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
