Custom 6061 6063 Aluminum LED Heat Sink Profiles with CNC Machining and Anodizing
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel Number2306
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysProduct nameCNC Machining Extrusion Aluminum Alloy Heat Sink for Led
-
Material6063/ 6061 etcMachiningAvailable
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
Surface ColorCustomized Panton Colors

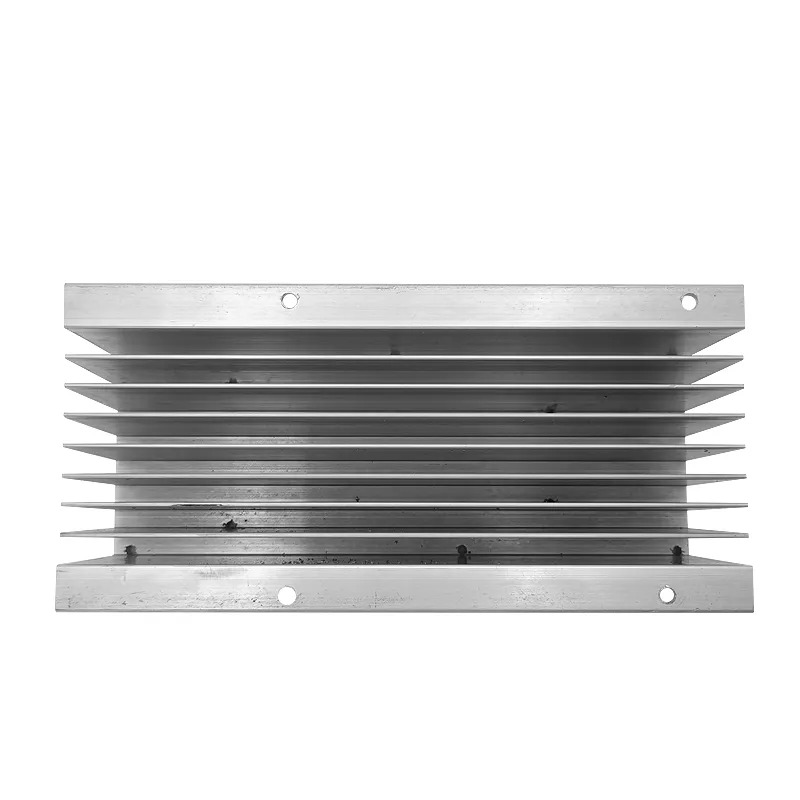

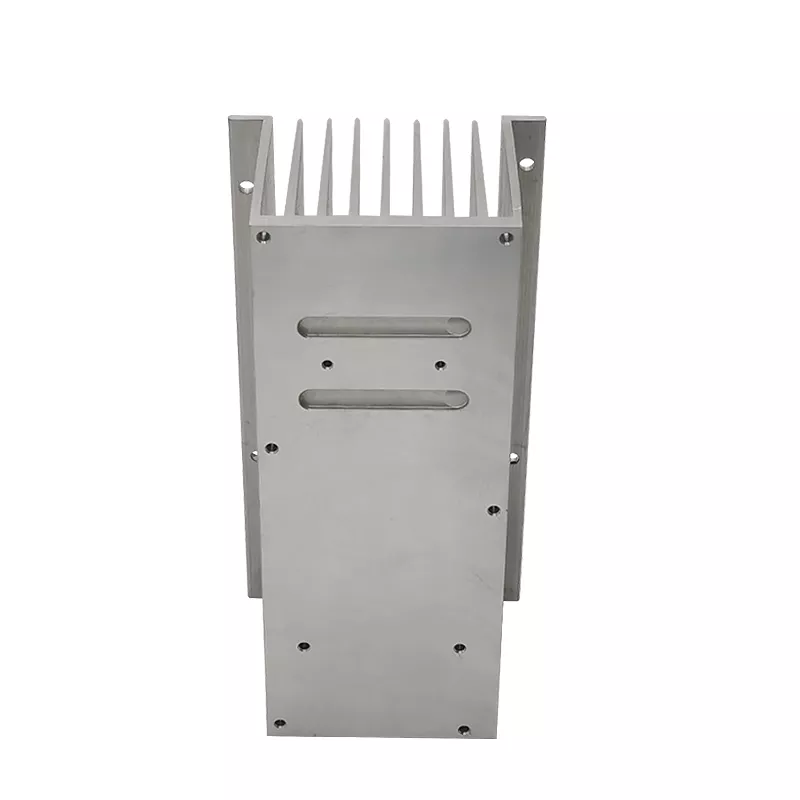

An LED heat sink profile needs to match the light assembly's mounting arrangement and thermal design. Model 2306 covers custom CNC machined extrusion aluminum alloy heat sinks for LED use, with 6063 and 6061 material options. Customized dimensions, anodized or oxide finishes and powder coating enquiries allow the profile configuration to be discussed alongside its appearance.
Design the profile around the LED assembly
For a 2306 LED heat sink, provide the complete section, cut length and the available installation space. Locate the LED mounting surface and the positions of any fixing holes required by your design. The heat sink geometry should be assessed with the intended airflow and heat input, rather than selecting a section only because it uses a familiar aluminum alloy.
Identify the machined mounting details
Machining is available for the 2306 extrusion profile, with cutting, punching, bending and other processing services identified. Mark the contact faces and attachment features that need secondary work. Agree the required flatness, dimensions and measurement conditions for the LED mounting interface; no universal tolerance or thermal rating should be inferred from the broad profile specification.
Confirm alloy temper and surface condition
Choose between the requested 6061 or 6063 material and specify the order's temper and finish requirements. Include a color reference where the LED assembly needs a particular appearance, and identify any contact areas affected by the finish. Send the current drawing and quantity so the customized 2306 heat sink can be reviewed against both assembly needs and the project's thermal acceptance criteria.
