Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeMilling
-
Material CapabilitiesBrass, Aluminum, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, OtherMicro Machining or NotMicro Machining
-
Model NumberS2411MaterialHardened Metals
-
ProcessCNC Machining Milling TurningSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing Format2D/(PDF/CAD/DWG/DXF)3D(IGES/STEP/VDA)ColorCustomized Panton Color or Ral Color
-
Processing TypeAxis CNC Machining Service

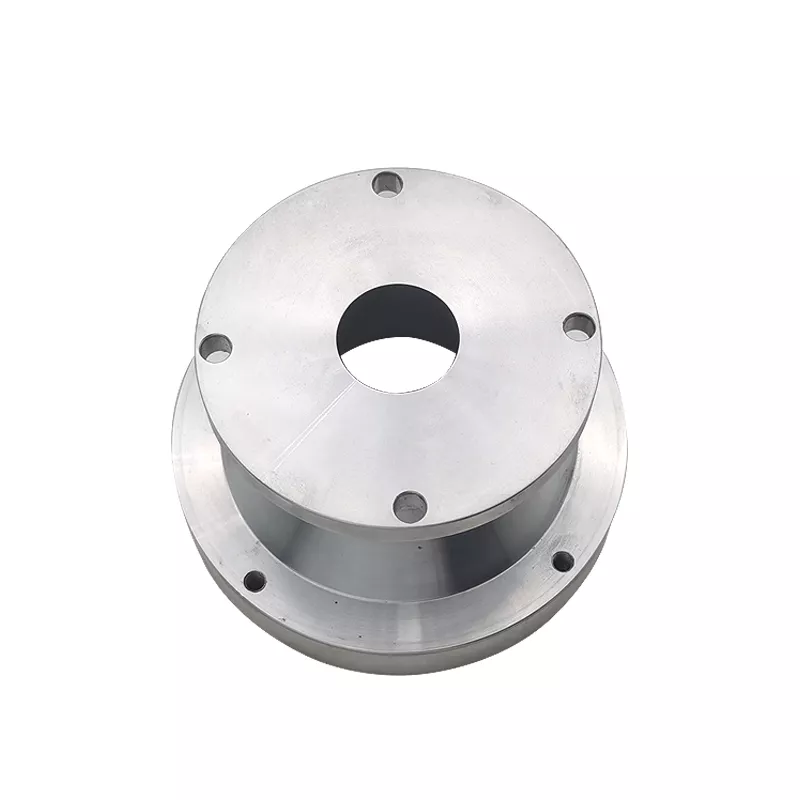

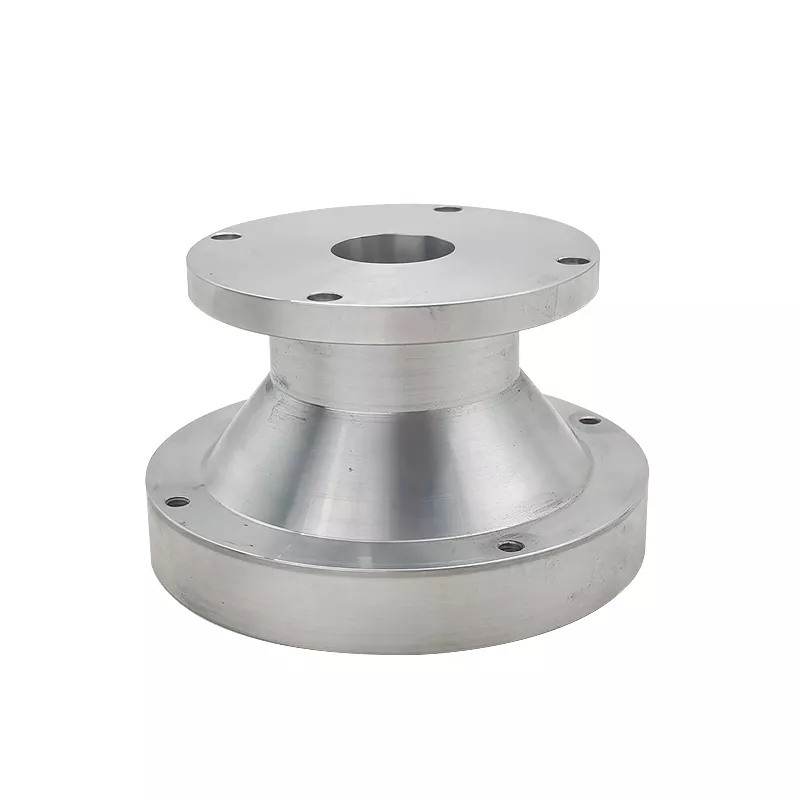

Central bore between circular mounting faces
The retained example has broad round faces, a central opening and several fixing holes. Dimension the bore, flange spacing and hole circles from common references, including the contact faces of the mating assembly.
Material and black-anodizing requirements
State the aluminum alloy if an aluminum version is requested. Specify the coating and masking requirements separately; the pictured metallic finish does not show a completed black-anodized version.
Include quantities and inspection criteria for bore fit, face alignment and hole positions. A broad hardened-metal field or shared catalog view does not establish the chemistry, hardness or distinct dimensions of this component.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
