Custom 6061 6063 CNC Aluminum Extruded Heat Sink Profiles with Closely Spaced Fins
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-200329
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable

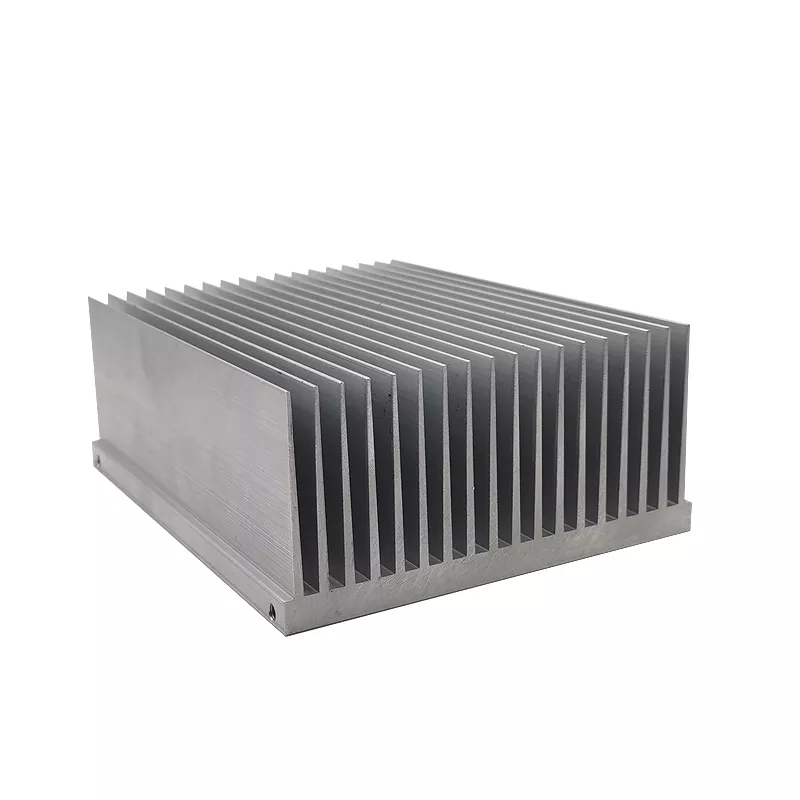

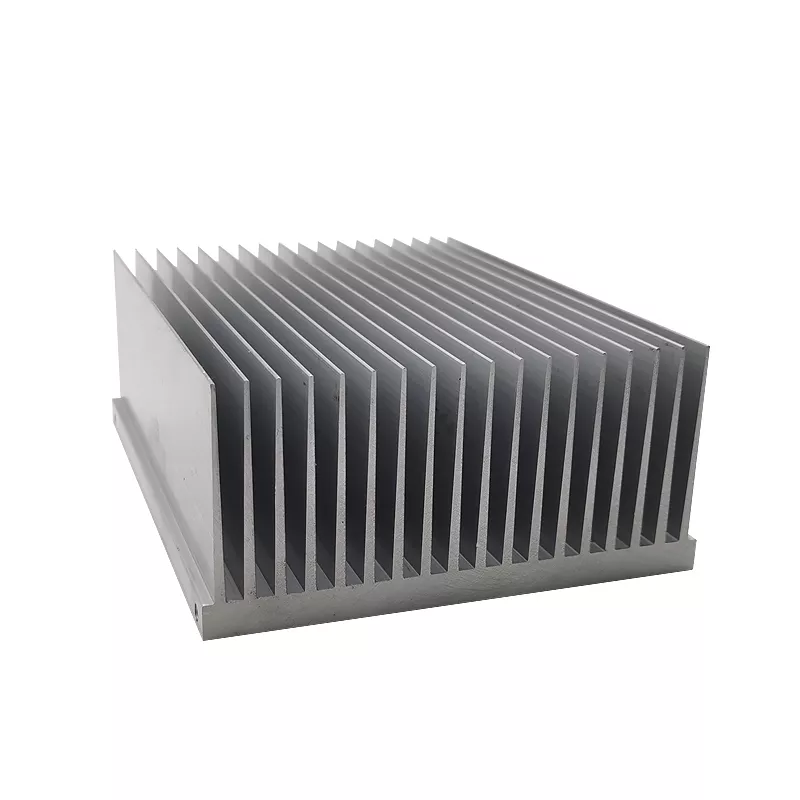

Closely spaced fins with a rectangular base
The illustrated section has many parallel fins on a flat base. Define the fin height, thickness and spacing with the base dimensions and profile length. Show the direction of the fins relative to the intended installation.
6061 and 6063 are advertised alloy options for custom enquiries. Specify the selected alloy and temper and identify the features requiring CNC machining, including holes, contact areas or end details.
Review fit and thermal requirements
Include the heat-source dimensions, available clearance, airflow and thermal design requirement. State the finish and inspection criteria for the mounting interface, then provide quantities and a drawing revision.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
