Custom Aluminum Fin Heat Sink Profiles with Extended Mounting Bases for Extrusion Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationTransportation Tools, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDM2012
-
Tolerance±1%Processing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable

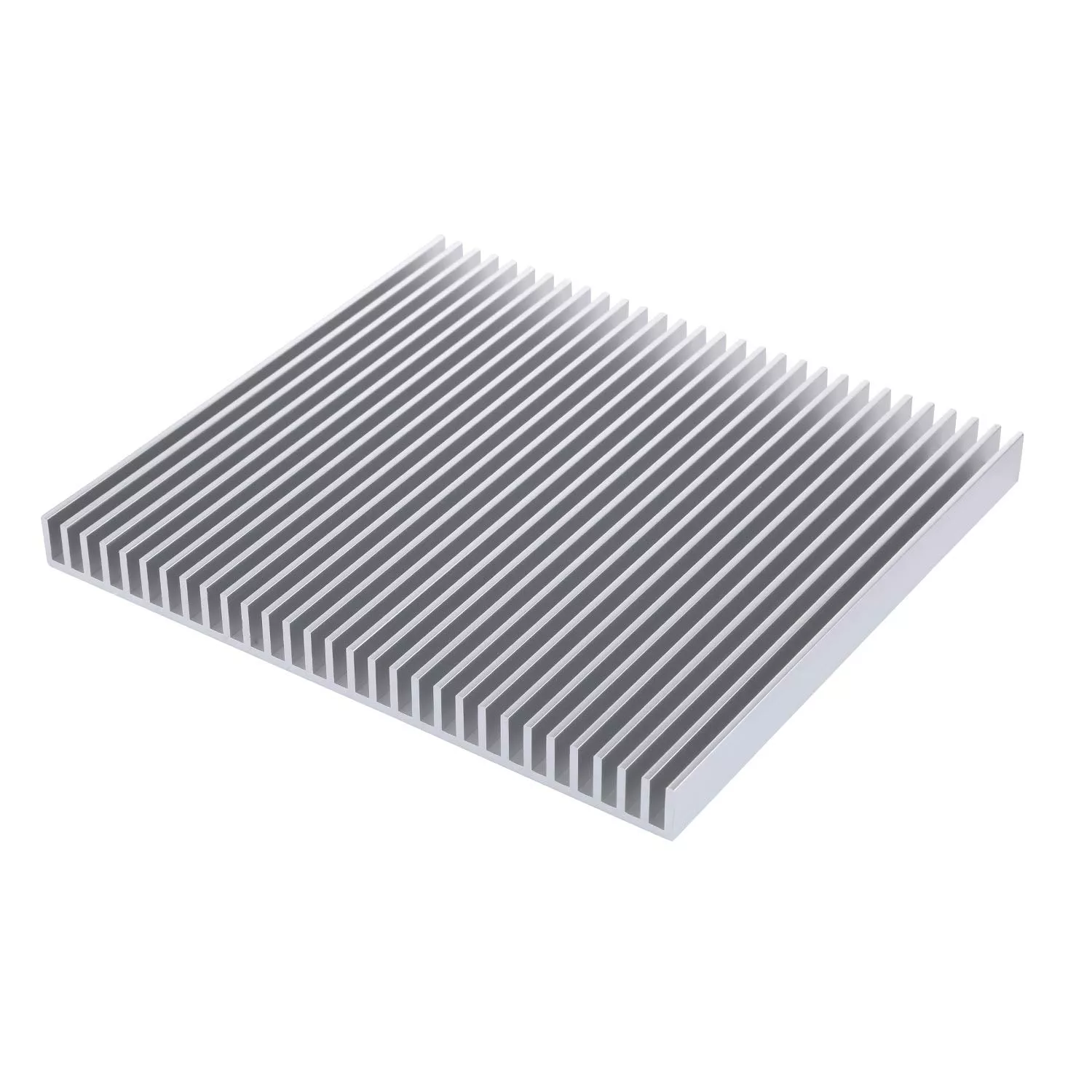

Parallel fins with an extended base
The example has a long row of thin fins on a flat base extending beyond the fin field. Define the base outline, mounting areas and fin envelope together, with any holes or secondary features needed for installation.
For an aluminum extrusion enquiry, provide the alloy, temper, section drawing and cut length. If the design specifically requires a skived-fin manufacturing route, identify that requirement separately for review; a photograph does not establish how the fins were formed.
Define the working conditions
Include the heat-source contact area, mounting arrangement, available airflow and thermal design requirement. State the finish, quantities and inspection dimensions for the part drawing.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
