Custom Precision Aluminum CNC Lathe Turning and Milling Parts with Tapered Flanged Bores
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes

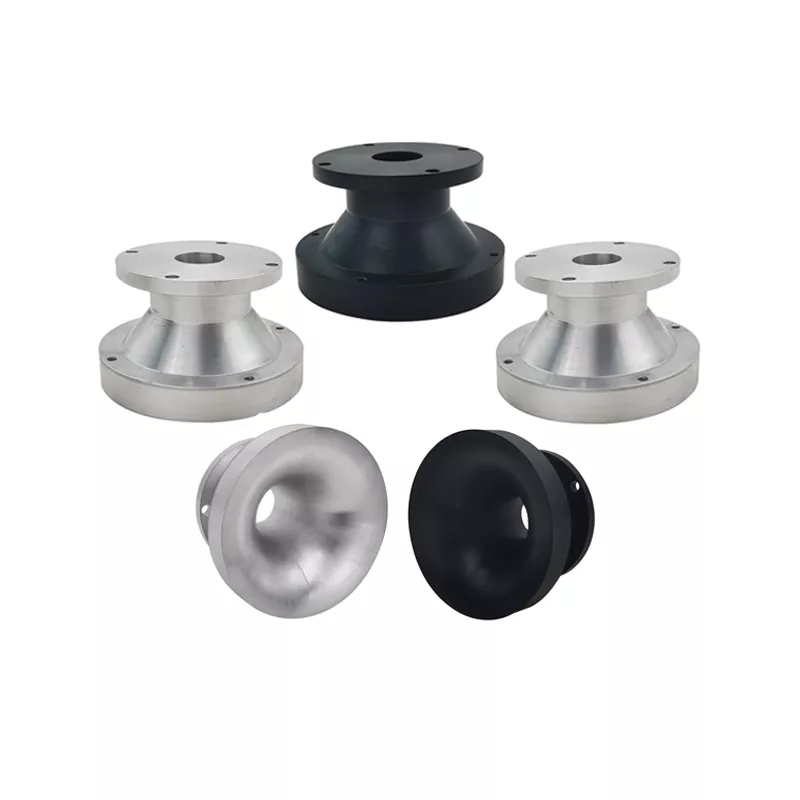

The component examples have a tapered passage between circular end flanges, with mounting holes around the flange faces. Their internal profile, end diameters and flange relationships should be defined as one complete custom aluminum part.
Turned passage and drilled flanges
Show the bore profile, transition lengths, wall dimensions and end-face positions. Dimension the hole pattern from the bore axis and identify fitted surfaces or faces requiring additional milling. Include the mating components where they determine alignment or clearance.
Aluminum is among the listed materials for the CNC lathe, turning and milling service. Specify the alloy and required anodized, powder-coated or plated finish for review. PDF, CAD, IGES and STEP drawing formats are listed. Include quantity, revision and dimensional acceptance requirements with the quotation request.
