Custom Aluminum Extrusion Enclosure Box Profiles with External Heat Sink Fins
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-200329
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Hollow enclosure geometry with outside fins

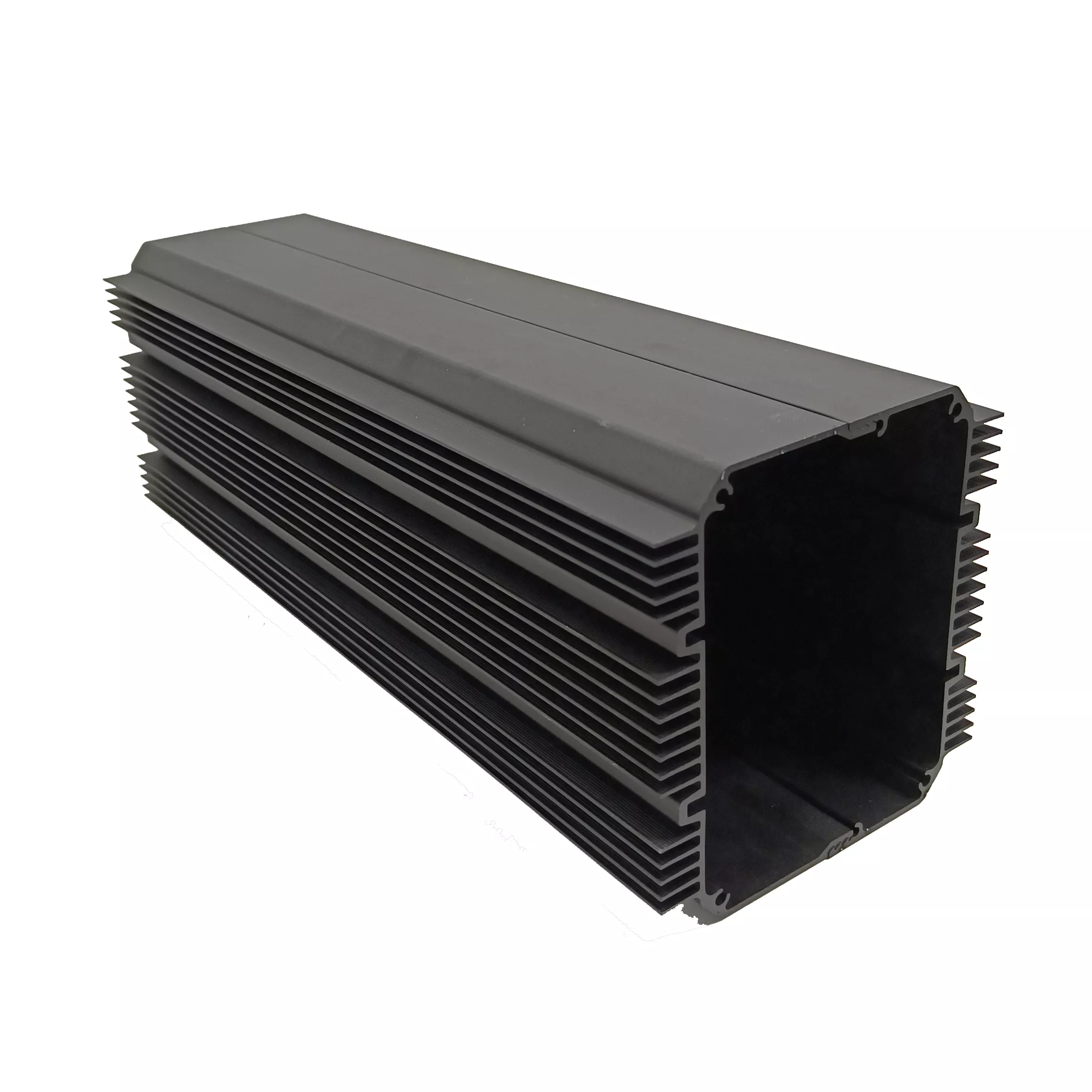

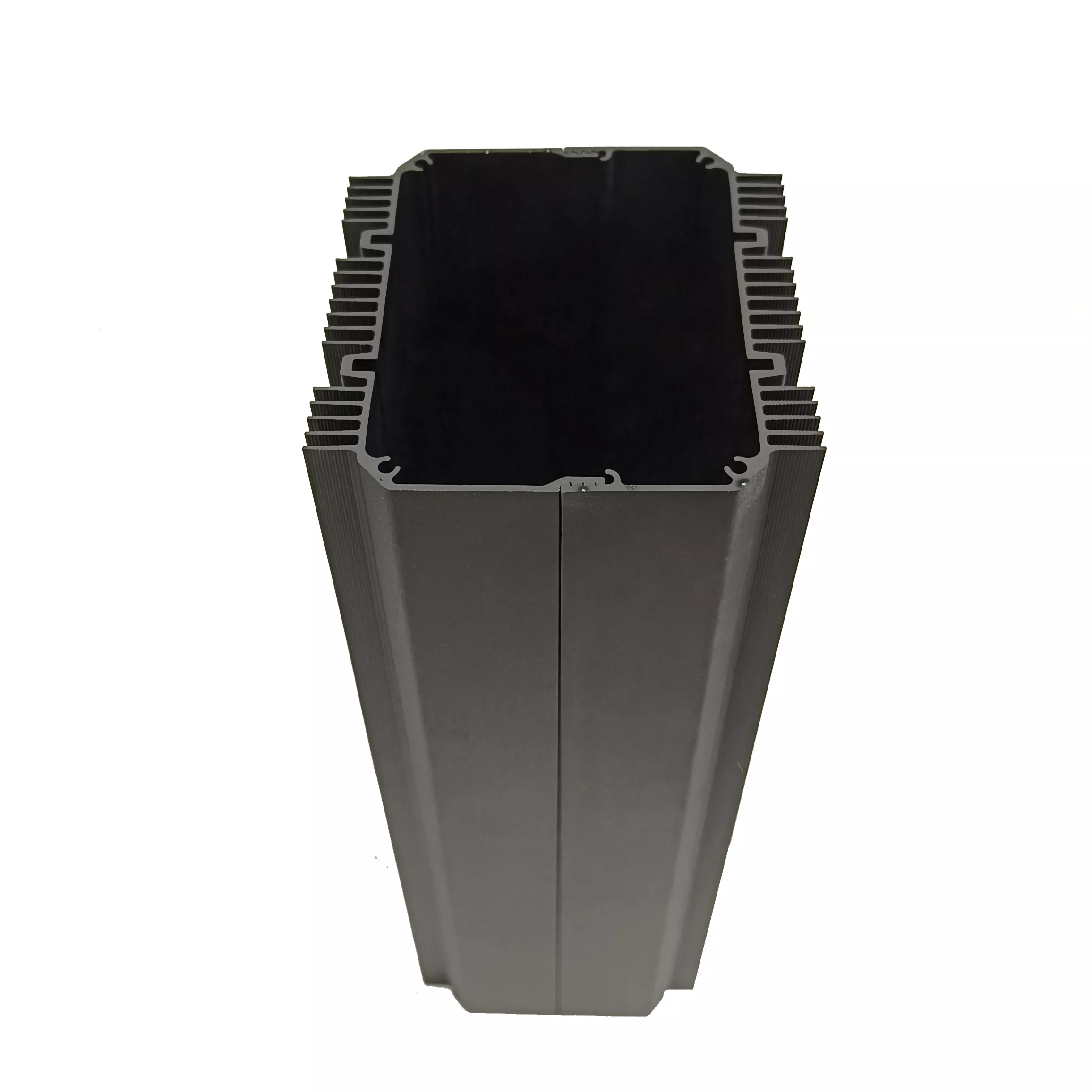

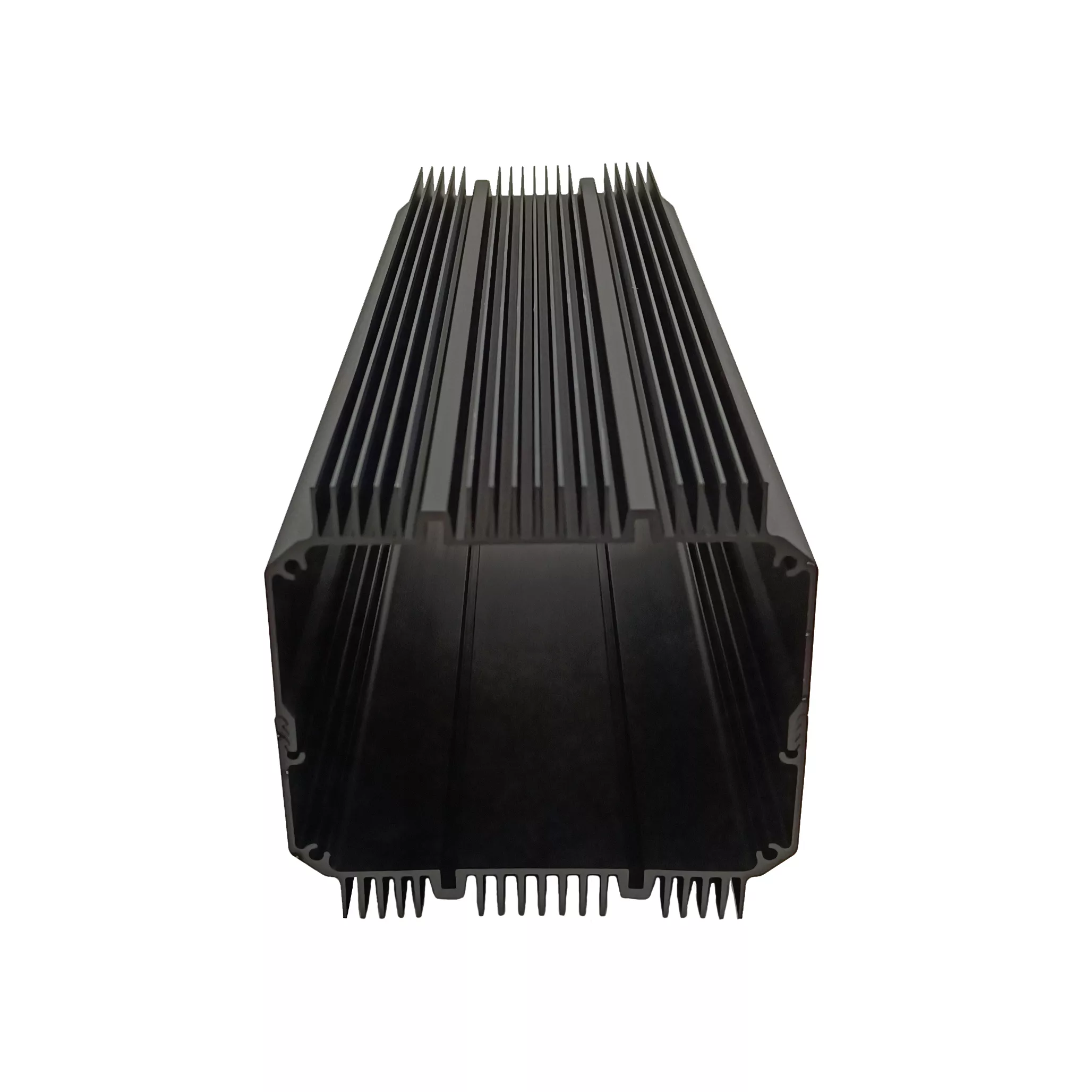

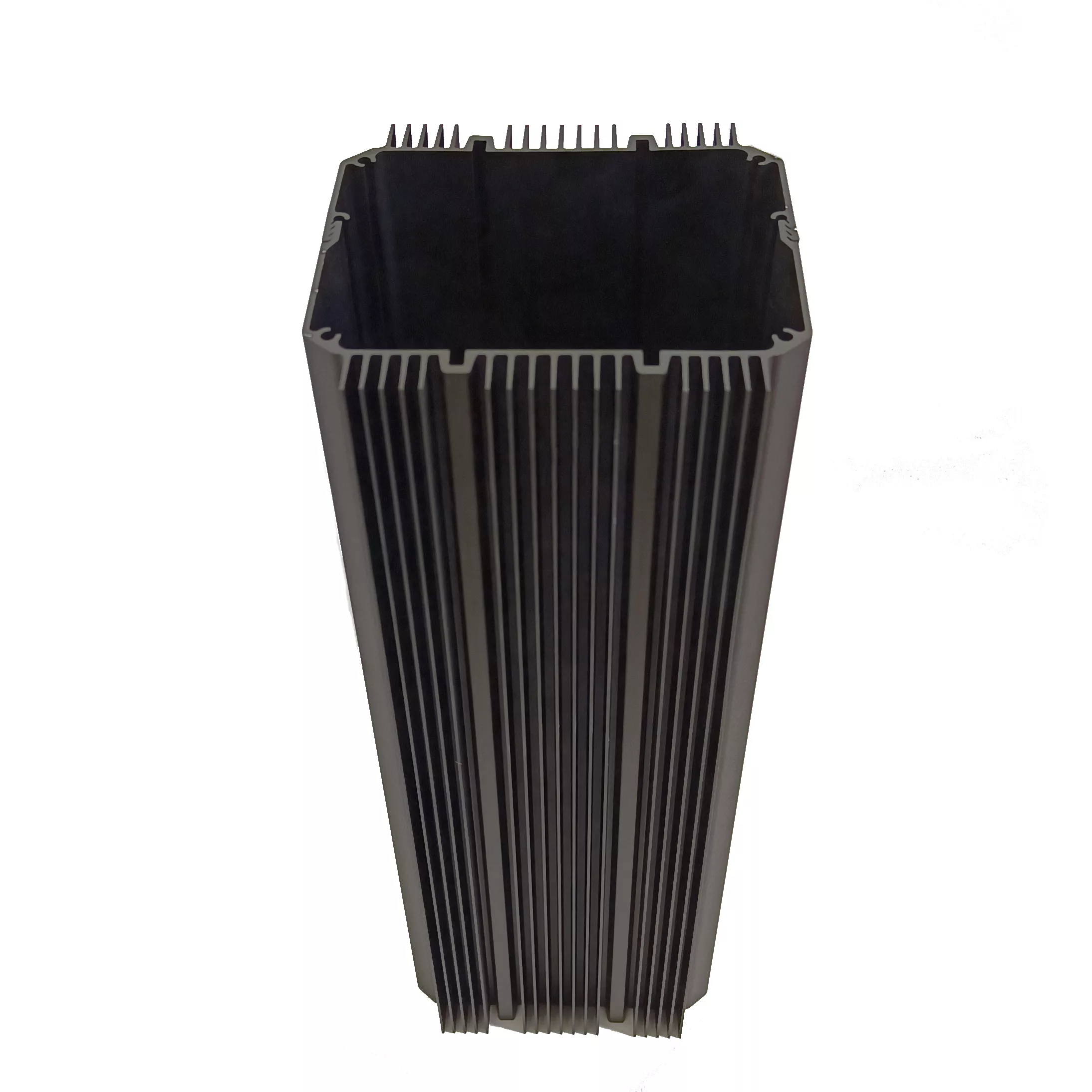

The illustrated profile has a hollow rectangular interior with rounded corners and finned external sides. Define the usable opening, wall sections and any internal locating features before specifying the outer fin envelope.
End panels and component fit
For a custom aluminum extrusion enquiry, show the equipment that must fit inside and the interfaces to end panels, fasteners or mounting hardware. State the alloy and temper, profile length and any secondary openings or machined details.
Include the required finish, cosmetic surfaces and quantities. If heat dissipation is part of the design, provide the heat-source interface and thermal installation requirements with the drawing revision.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
