Custom Anodized Aluminum Extrusion Heat Sink Housings with Finned Sides and Mounting Feet
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-200329
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Define the housing and its separate closure parts

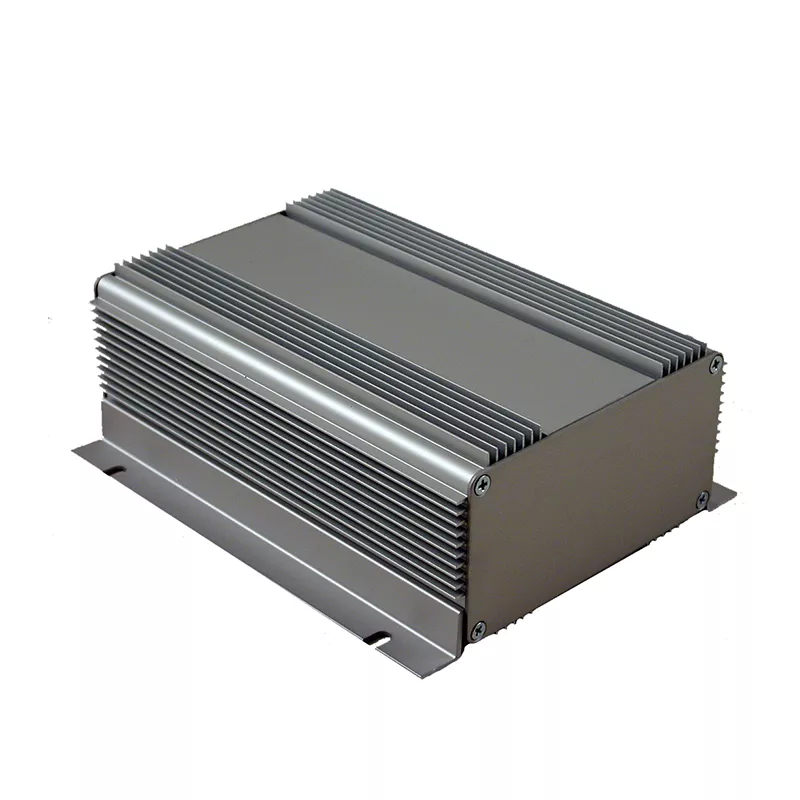

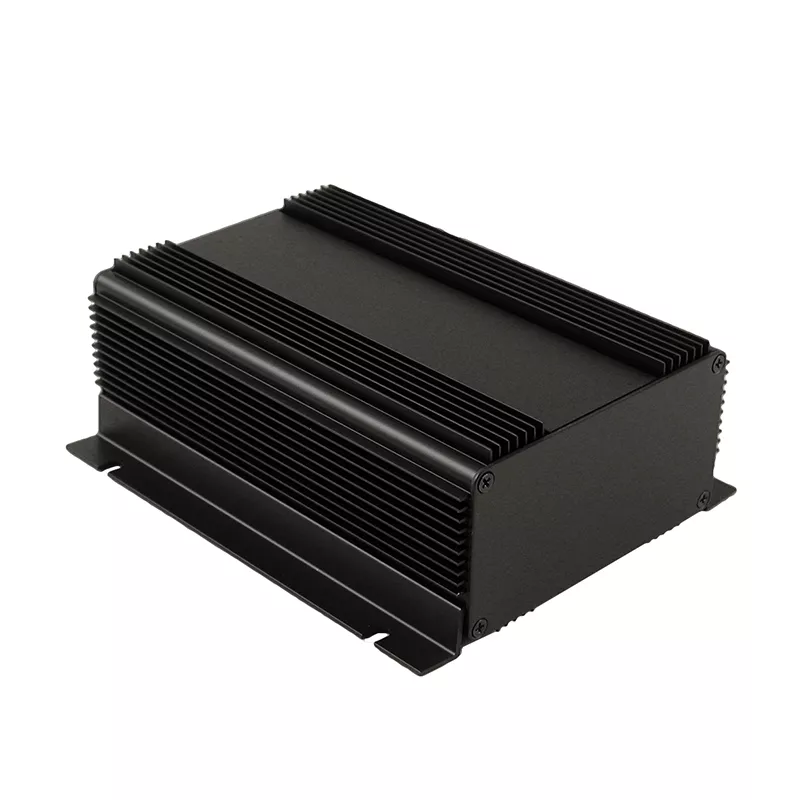

The example shows a rectangular housing with finned sides, an end panel and outward mounting feet. Specify the internal clearance, section length and end-panel interfaces, and identify the components to be included in the enquiry.
For an aluminum extrusion housing, state the alloy and temper, mounting-foot hole pattern and any secondary machining. Define the anodizing finish and mark mating or contact surfaces requiring a particular condition.
Assembly requirements
Provide the internal component layout, fastening details and quantities. Include any thermal, sealing or other enclosure requirements for review rather than assuming a rating from the sample construction.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
