Custom Aluminum LED Heat Sink Profiles with Dense Fins and Skived Fin Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDM2012
-
Tolerance±1%Processing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Start with the LED contact face and cooling space

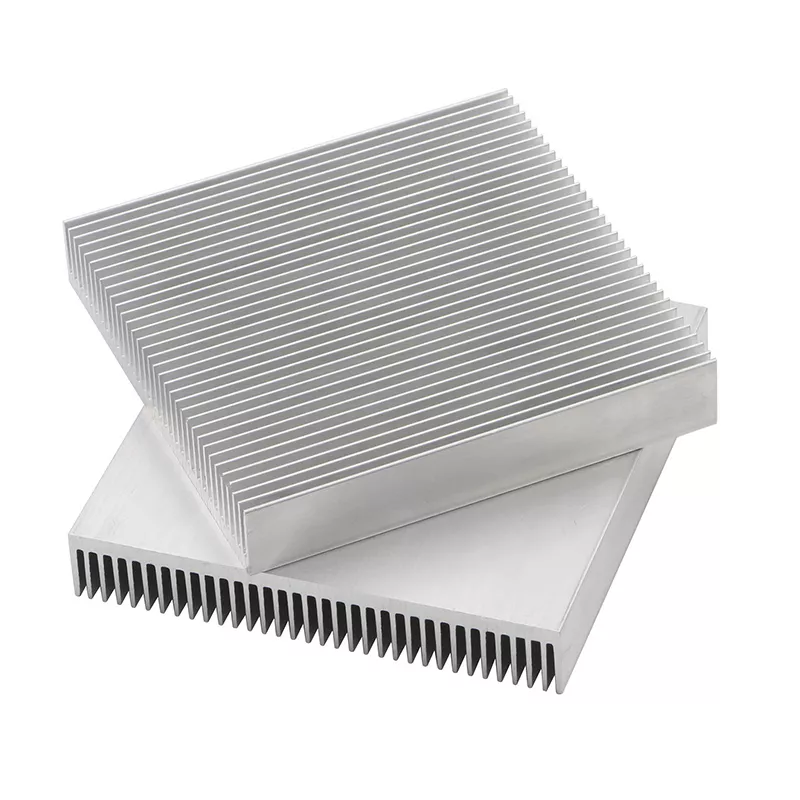

The examples show rectangular finned sections, including a broad flat face on the lower component. Identify the face that contacts the LED assembly and dimension its outline, flatness requirement and fixing points independently of the fin envelope.
For a custom aluminum profile enquiry, specify the alloy, temper and length. State whether extrusion or a specifically required skived-fin route is to be reviewed, with the fin dimensions and secondary-machining details.
Define the operating conditions
Include the LED heat-source layout, mounting arrangement and available airflow. Provide the required thermal performance and finish, together with quantities and inspection requirements. The photographs do not establish an LED power rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
