Custom Aluminum Extruded Electric Motor Housing Profiles with Machined Bore Interfaces
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationTransportation Tools, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDM2012
-
Tolerance±1%Processing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Define the bore and end interfaces together

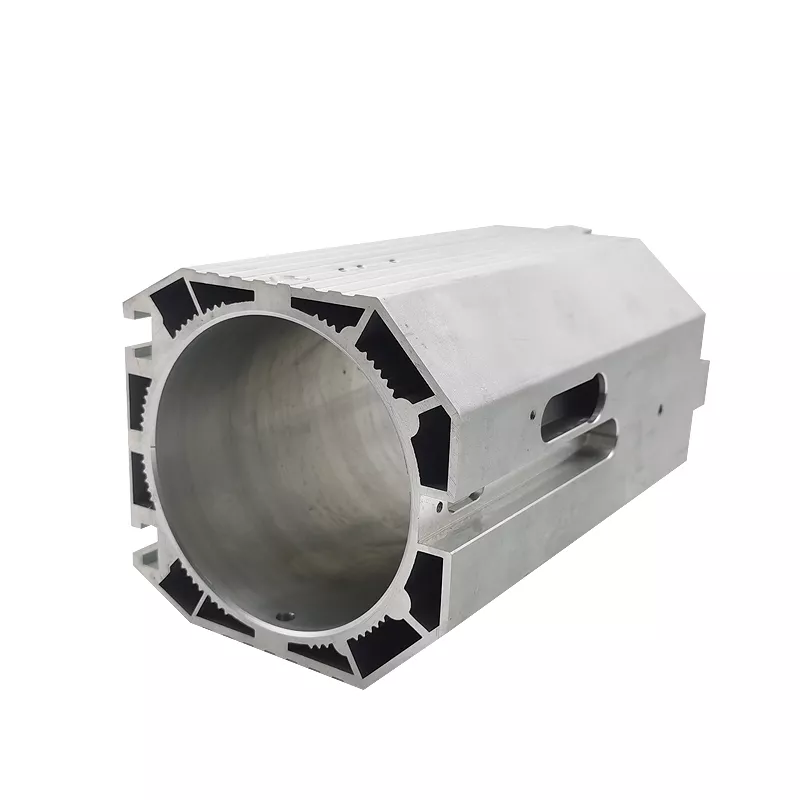

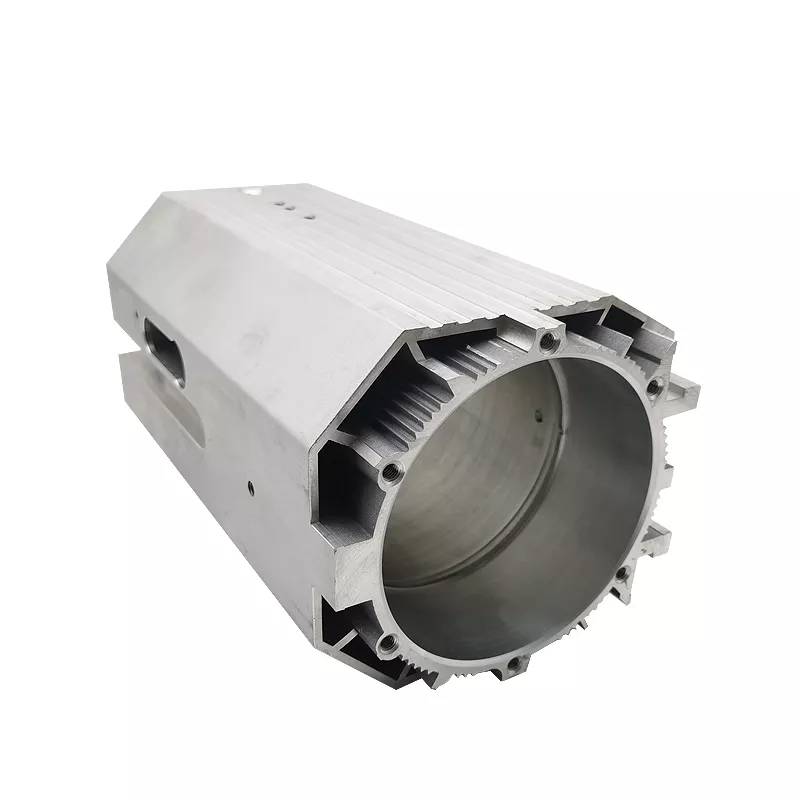

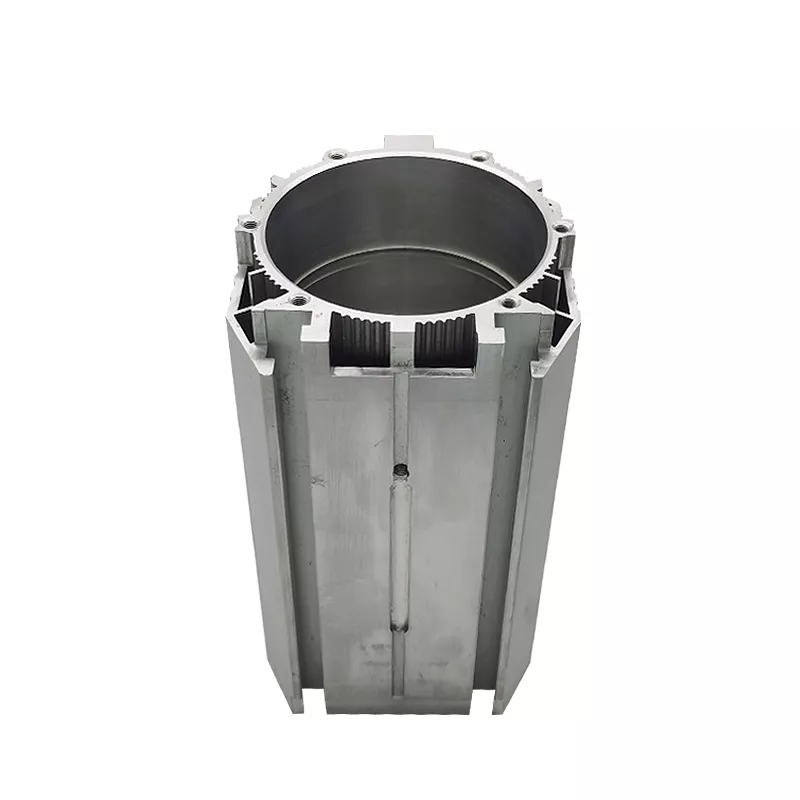

The illustrated housing has a large circular bore, end-face fixing holes and longitudinal features around the outside. For a motor-housing enquiry, show the mating motor components and dimension the bore and end interfaces from the assembly references.
- Profile
- Specify the aluminum alloy, temper, external section and cut length.
- Machining
- Define the bore condition, end faces, mounting holes and any features requiring secondary operations.
Include fit tolerances, required finish and quantities. State any thermal, electrical or environmental requirements that apply to the actual motor assembly, with the current part drawing and revision.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
