Custom CNC Machined 6061 6063 Anodized Aluminum Extruded Heat Sink with Mounting Base
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-2309
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Locate the fins from the mounting-base references

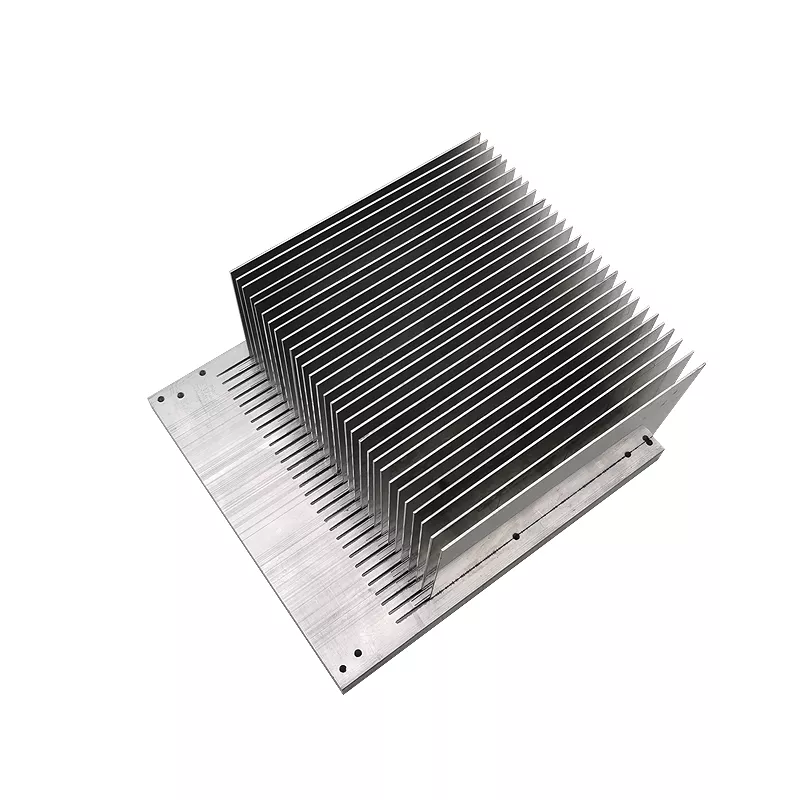

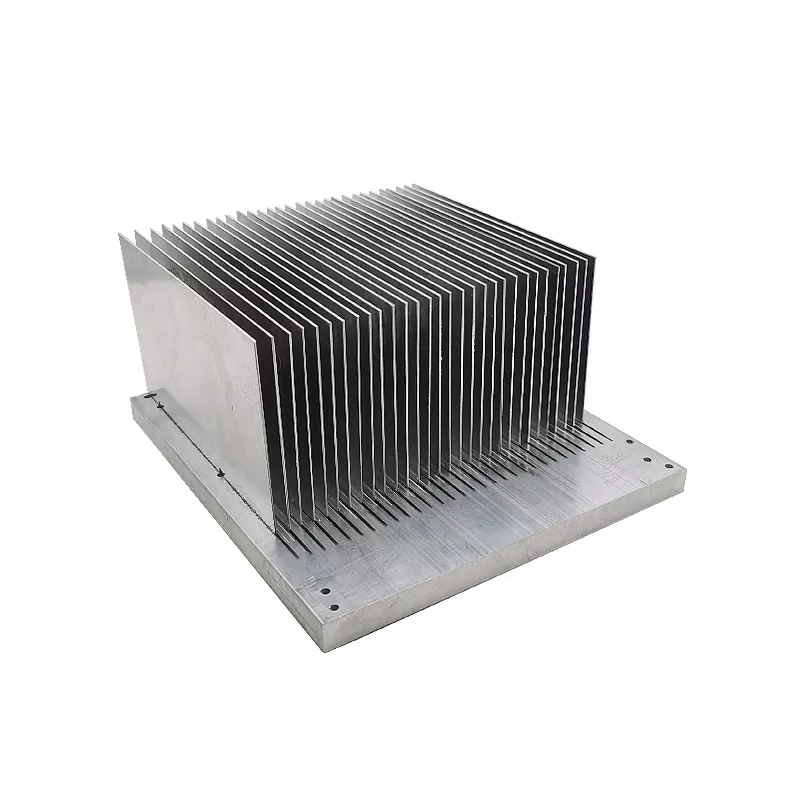

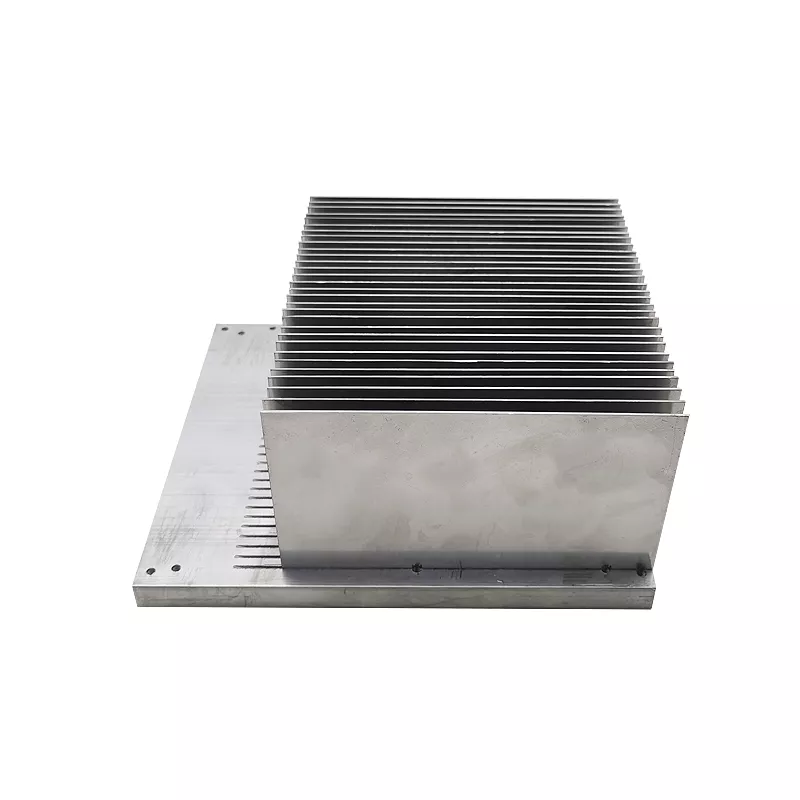

The example has a field of upright fins on a broad base with drilled features along the exposed mounting areas. Define the base outline and hole pattern relative to the heat-source location, then dimension the fin height and spacing.
For a custom aluminum extrusion enquiry, specify the required 6061 or 6063 alloy and temper. Show the cut length and all CNC-machined holes or contact faces on the finished-part drawing.
Finish and installation review
Identify anodizing requirements and the surface condition needed at the thermal interface. Include mounting hardware, available airflow, thermal design requirements and quantities, with inspection criteria for the base and hole positions.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
