Custom Small OEM Aluminum CNC Milling Rapid Prototype Parts with Stepped Bar Profiles and Anodizing
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes

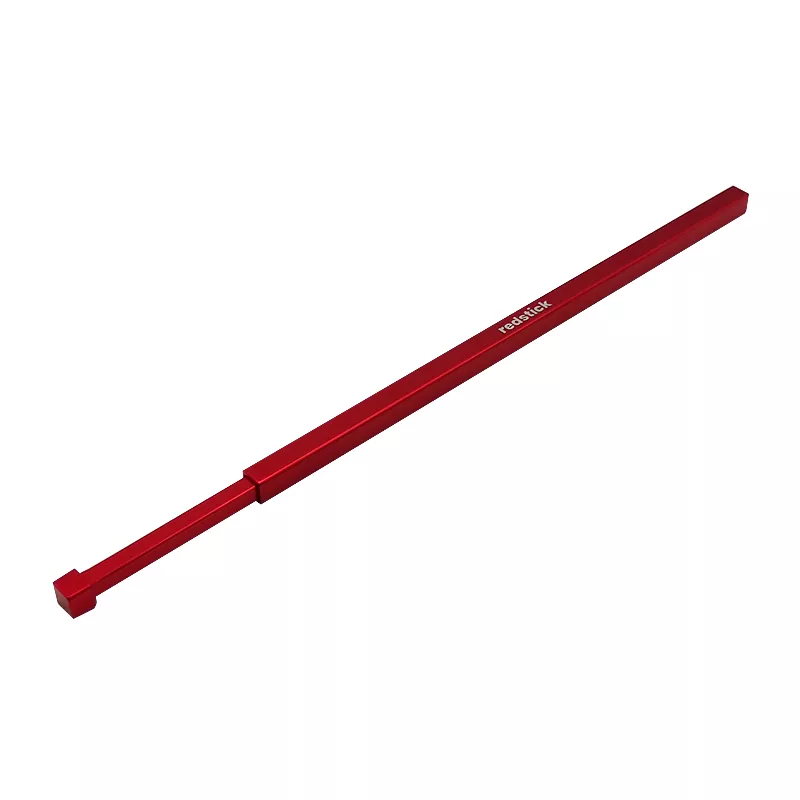

This machining example has a long straight bar profile with stepped sections and shaped ends. A custom OEM prototype enquiry should identify the ordered geometry and the dimensions used to evaluate its fit within the assembly.
Define the prototype drawing
- Show the complete length, section dimensions and transition positions.
- Detail the end features, edge condition and fitted faces.
- Mark inspection references and any secondary machining.
Aluminum is among the listed materials, with CNC milling, turning and rapid prototyping in the machining scope. Specify the selected alloy and anodized finish requirement, including masking where necessary. PDF, CAD, IGES and STEP formats are listed. Provide the prototype quantity and anticipated production volume separately, together with drawing revision and acceptance requirements for quotation.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
