Custom CNC Lathe Machined Cylindrical Parts with Cross Holes and Threaded Shafts for Stainless Steel and Aluminum Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)
Cylindrical profiles with side holes and threaded features

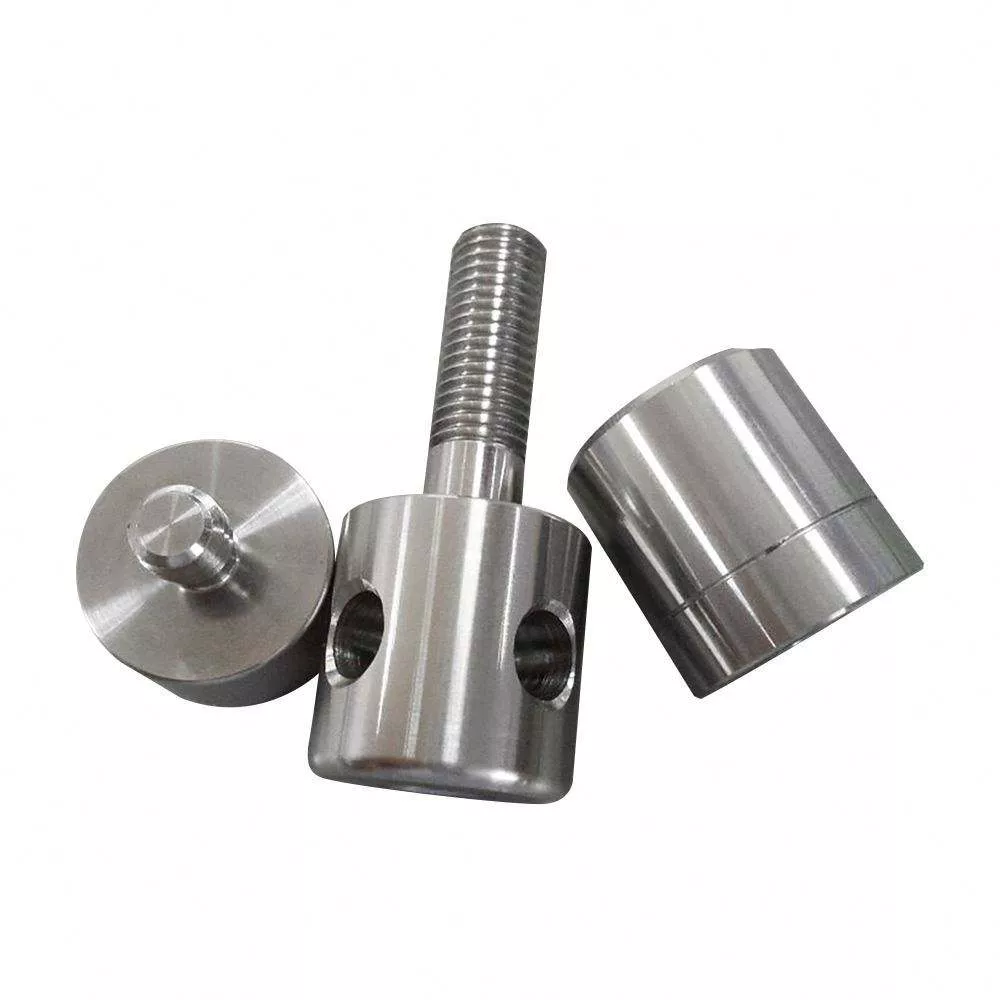

The examples include a cross-drilled body with a threaded shaft, a stepped round piece and a short cylindrical sleeve. Specify which pieces are required and show the hole axes, shoulders and seating faces in section.
For model Dmetal-200389, aluminum alloy is named as the material and stainless steel is among the machining capabilities. Confirm the grade for the selected part and provide quantities and drawings in PDF, CAD, IGES or STEP format. CNC turning, milling and drilling are listed. Define the thread requirements, fits and inspection datums, and select a finish suitable for that metal before manufacture.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
