OEM Custom CNC Machining Service for Auto and Car Parts with Grooved Shafts and Toothed Features
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2405Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm
Review the complete shaft profile

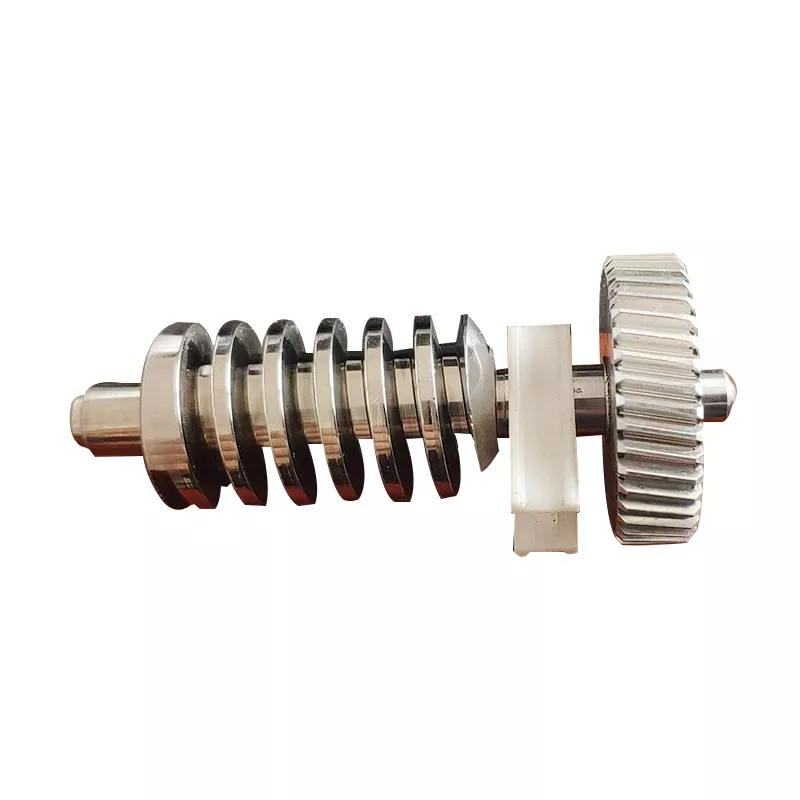

The illustrated assembly has a grooved shaft section, end journals and a toothed round element. The drawing should identify which pieces require manufacture and define their assembly relationship.
For this OEM auto and car-part machining enquiry, include the tooth geometry, groove profile, journal fits and any secondary operations needed for review. The S2405 record lists aluminum alloy, CNC machining, deburring, surface treatment and a minimum order of 100 pieces. Submit PDF, CAD, IGES or STEP files with the required material for each component, drawing revision and quantities.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
