Custom Large CNC Milling and Turning Part Enquiries with Stepped Cylindrical Metal Components
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, PlasticMicro Machining or NotMicro Machining
-
Model NumberS2312MachiningAvailable
-
Surface treatmentAnodized/oxide etc /powder coatedTolerance±0.05
-
ToolingMade by ourselfApplicationPower Supply
-
MaterialAluminumColorSilver White and Gold
-
Product nameCustomized CNC Machining Aluminum Flashlight Housing PartsUsageAluminum Extruded Profiles Extrusion Aluminum
Specify the shoulder and radial fixing feature

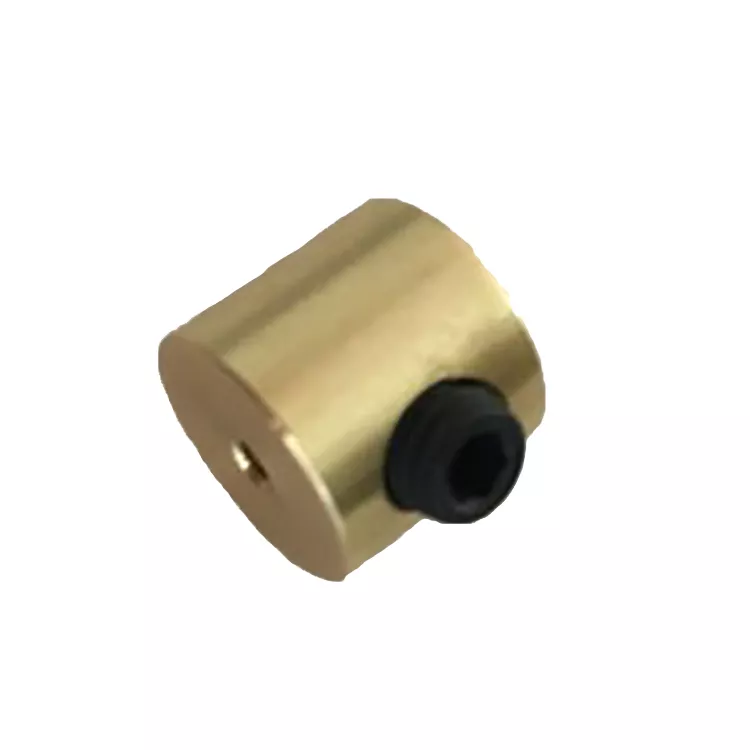

The retained example is a short cylindrical form with a stepped area and a dark radial insert or fixing feature. Dimension the bore or internal interface, outside diameter and side feature from the main axis.
For a large-part machining enquiry, provide the actual overall dimensions and material so the scope can be reviewed. The photograph has no scale and does not define machining capacity. Identify the required turning, milling and finish.
Details beyond the sample appearance
Include quantities, mating-part geometry and inspection dimensions. Use the current drawing revision to define the finished interfaces and any assembly requirements.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
