Custom Drawing Black-Anodized Aluminum Extrusion Profile for Industrial Components

• Grade

  6000 Series
  Temper

  T3-T8
• Application

  Heat Sink, Industrial Equipment
  Shape

  T - Profile
• Alloy Or Not

  Is Alloy
  Model Number

  2201
• Tolerance

  ±1%
  Processing Service

  Bending, Decoiling, Punching, Cutting
• Delivery Time

  22-30 days
  Product material

  6063 Aluminum
• Color

  Black Metal
  Size

  Customized
• Surface treatment

  Anodized/oxide etc /powder coated
  Tooling

  Made by ourself
• Packing

  Carton
  Process

  Sand casting +CNC Machining
• Certification

  ISO9001-2008
  Machining

  Available

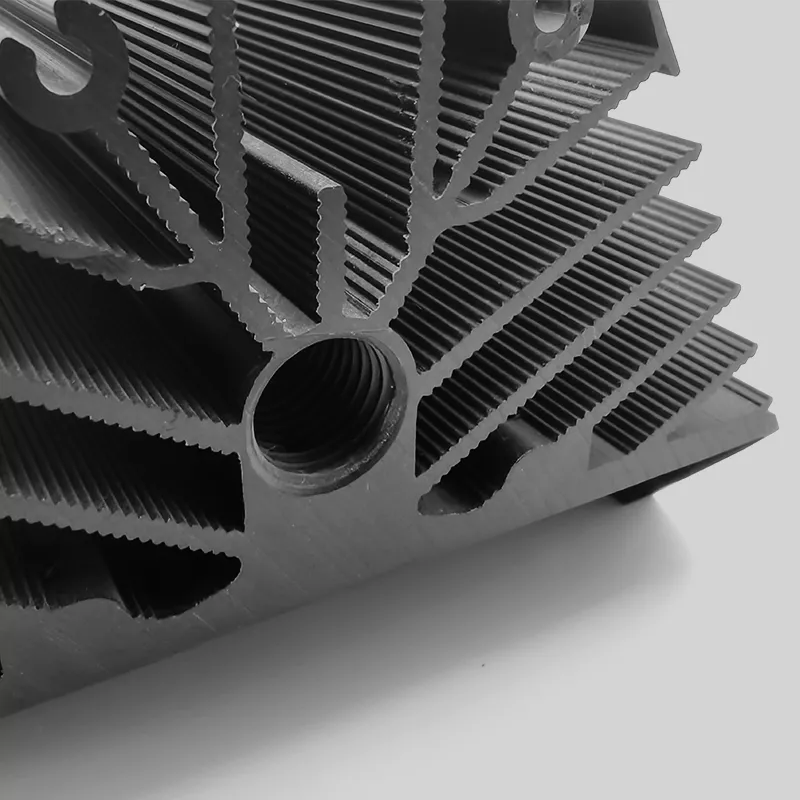

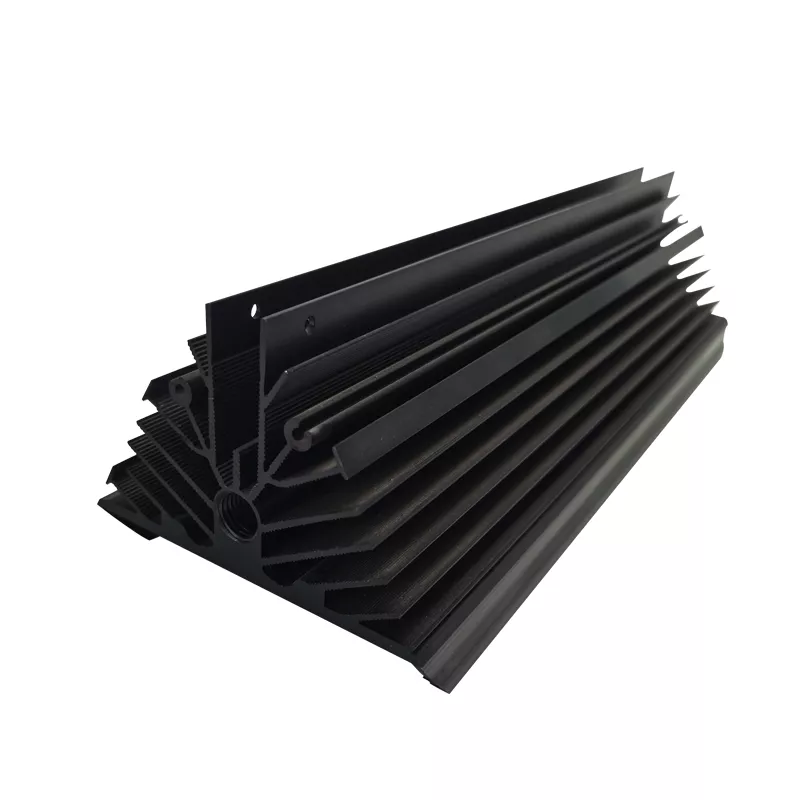

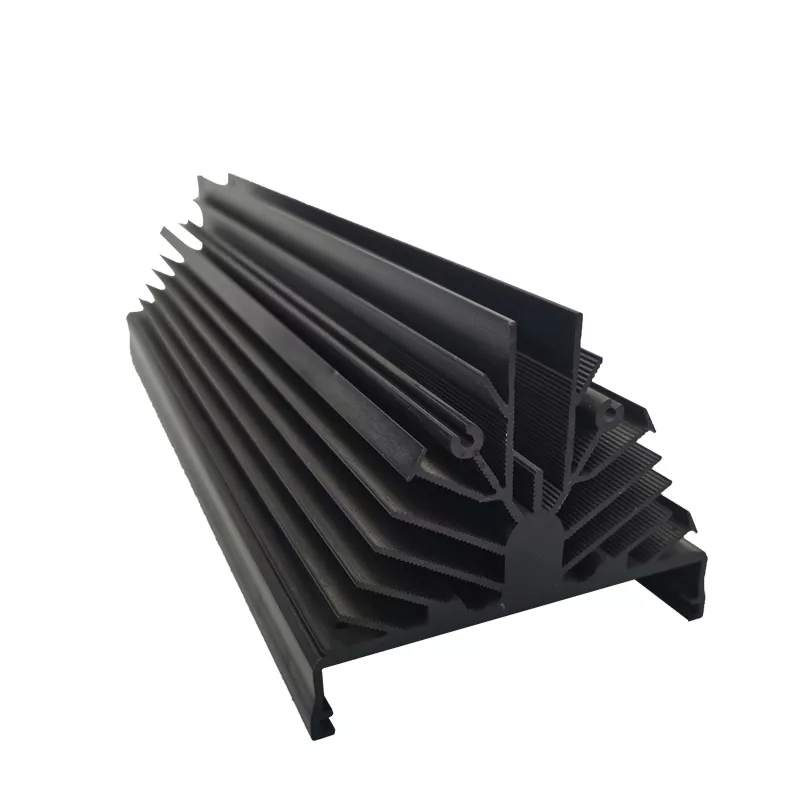

Use the controlled cross-section to identify the industrial aluminum profile required by the order. The example has an irregular finned form with angled parallel fins, hollow internal regions and projecting edge features. A catalogue reference can help locate the enquiry, but it is not a substitute for the actual section and mating drawing.

Dimension fins, cavities and engaging edges

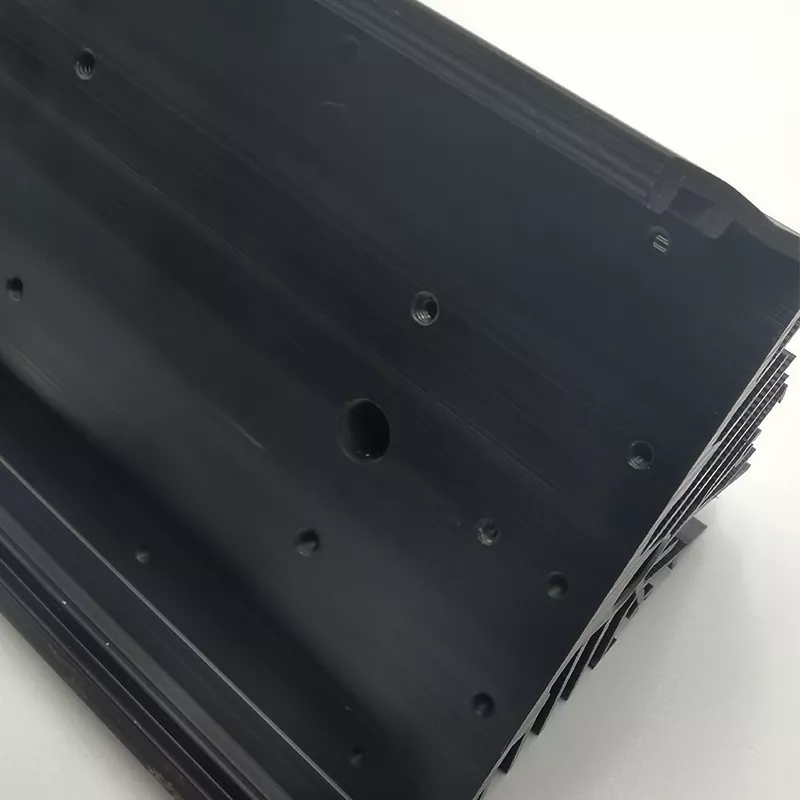

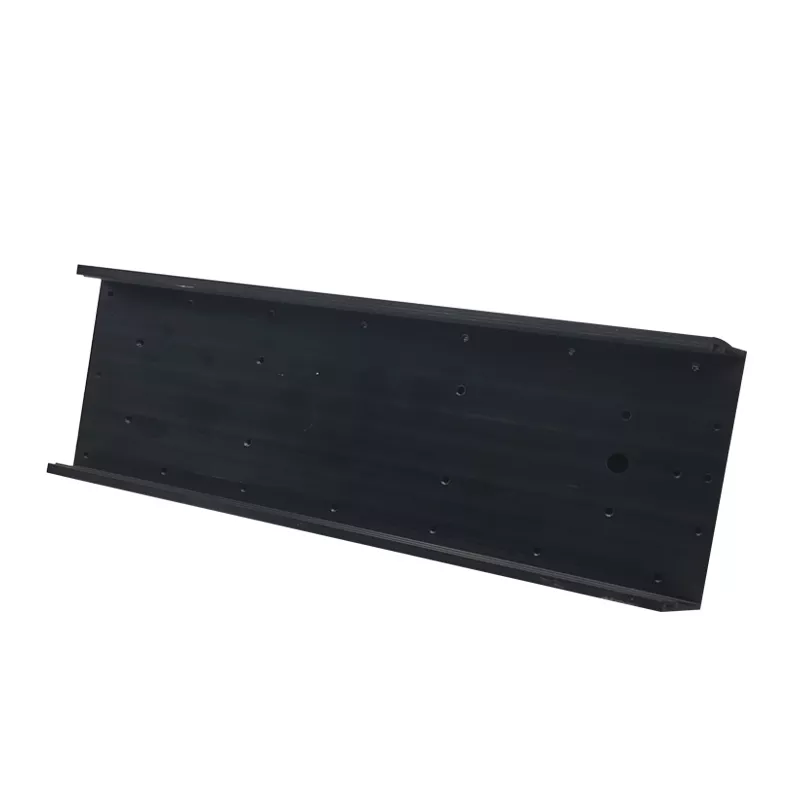

Provide the cut length and section dimensions, including the internal spaces and edge features that meet adjoining parts. Locate fixing or contact surfaces from the assembly datums. Identify any holes, end machining or finished faces required after the profile is made rather than assuming that every listed machining service is included.

• Supply the controlled section and component revision.
• Identify the actual alloy and temper required.
• Locate cavities, edge engagement and mounting interfaces.
• Mark secondary machining and finished dimensions.
• Define the selected finish and inspection condition.

Choose the black anodized finish for the design

Specify the actual 6063 condition if that alloy is required, together with the black anodized finish and any appearance criteria. Mark masking and fit-sensitive surfaces where finishing affects assembly. A dark image alone does not establish a particular coating process or thickness.

Agree the extrusion and secondary-operation scope for the drawing. The historical general sand-casting and CNC field does not require every profile enquiry to follow that sequence. Apply dimensional limits to the features that matter, with measurement criteria and a defined supplied condition, rather than treating ±1% as universal.

State the installation requirements

Include the mating assembly where it determines clearance, fixing or contact. If the design is intended for thermal service, provide the heat load, ambient conditions, airflow and contact arrangement needed for assessment; fin shape is not a tested cooling rating. Confirm current quantities and the complete delivered scope. The enquiry should connect one actual section, material and finishing choice to a clear inspection plan, rather than relying on a model reference to define the component.
