Custom ABS Nylon and PC Injection Molded Scoop Components | OEM Plastic Parts
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS2405Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingCertificationISO9001 CE
-
MaterialPA66/PP/ABS /PC, EtcFeatureHigh Precision Injection Parts
-
Product namePlastic Injection PartsDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Surface treatmentPolish. Etched. Texture.electroplating.paintingColorCustomer's Request
-
ProcessInjection Mould Plastic PartApplicationIndustrial Plastic Parts
-
KeywordPlastic injection
Dimensions along the handle-to-scoop transition

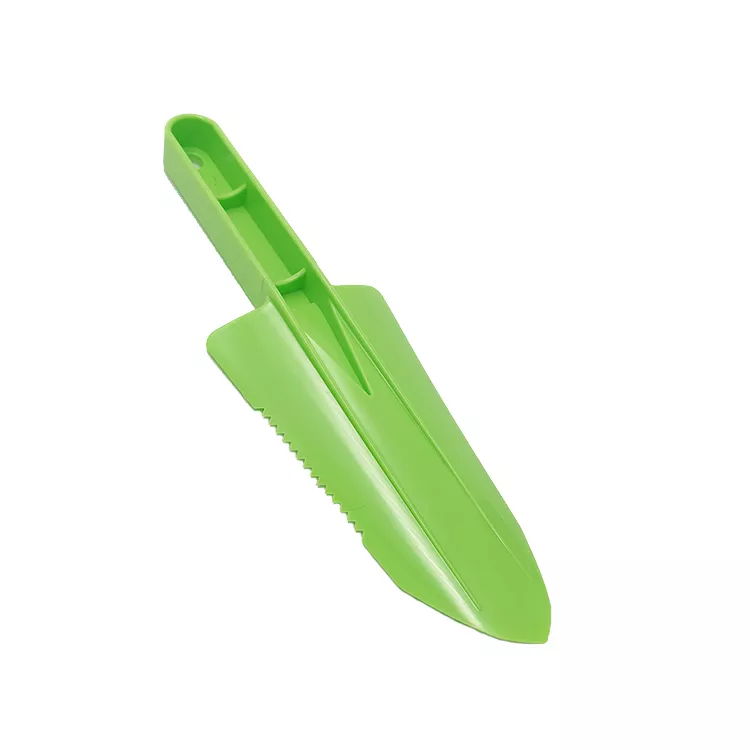

The green example has an elongated scoop, an open handle end and a reinforcing rib along the transition. Define the rim profile and the handle cross-section together so the drawing describes how the part is held and stored.
Select the required ABS, nylon or PC resin grade for review. These options do not establish that the pictured scoop is available in every listed material or that the same dimensions suit each choice.
Production information for the selected design
Include quantities, color and finish, with the inspection dimensions for the hanging opening, scoop edges and rib. State any use-specific material or test requirements separately. Similar green or black scoop photographs in the catalog do not independently verify a different size or model.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
