Custom Plastic Injection Molded Parts with Handles and Raised Surface Features
-
Model NumberS2209Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingColorCustomized
-
SizeCustomized SizeMaterialPA66/PP/ABS /PC, Etc
-
CertificationROHSFeatureHigh Precision
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag

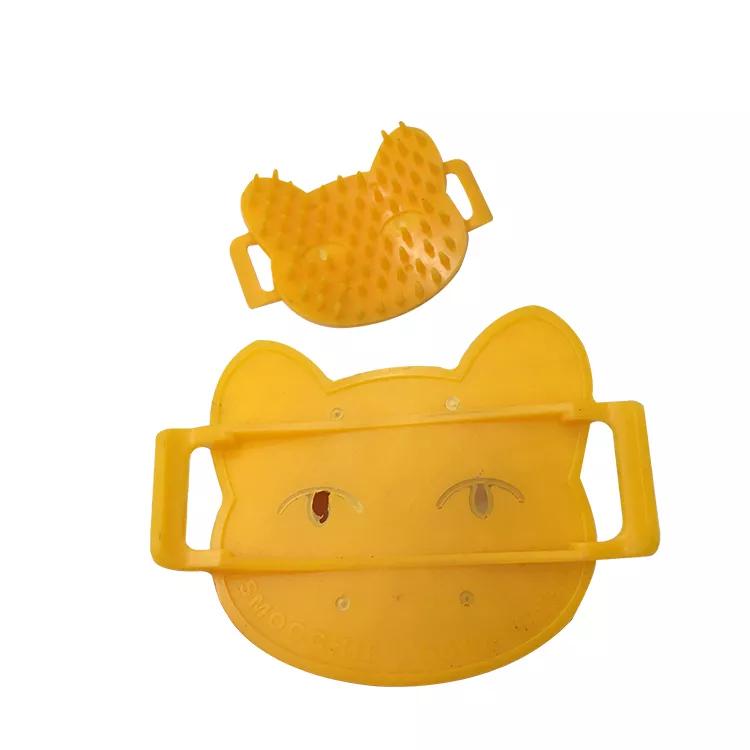

S2209 is a custom plastic injection molding enquiry with PA66, PP, ABS and PC material options, customized size and color, and a matte surface finish. The illustrated example has a rounded outline, side hand openings and raised projections. Those visible features help define the drawing discussion; they do not establish a standard size or a tested use.
Define the openings and raised details
For a molded shape like the illustrated S2209 example, identify the hand-opening dimensions, wall sections and projection geometry. Show which surfaces contact another part and which features need a particular edge condition. The original micro-parts wording does not supply a minimum feature dimension, so include measurable requirements in the drawing instead of assuming a micro-molding capability.
Choose the resin and surface requirement
Specify the PA66, PP, ABS or PC grade appropriate to the actual part design, together with the desired color reference and matte appearance. These materials are alternatives, not interchangeable versions with identical properties. Moulding, cutting and painting are processing services to discuss; any separate plastic CNC or extrusion requirement should be confirmed for its own manufacturing proposal.
For the S2209 quotation, provide the drawing revision, quantity and the dimensions used for acceptance. If the intended use requires contact-safety or compliance documentation, request evidence for the selected resin and finished configuration before approving the order.
