Custom Aluminum Extrusion Heat Sink Profile | Black Anodizing and Machining Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-2309
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable

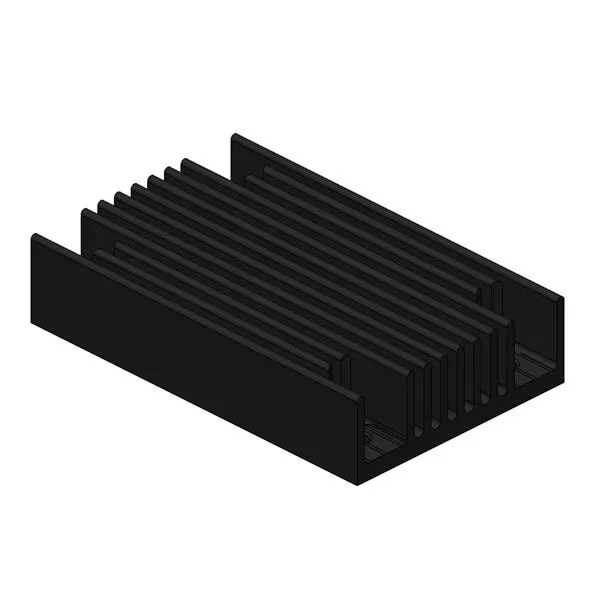

Parallel fins between raised side walls
The black example has a finned center on a flat base with taller walls along the sides. Dimension the fin array and side walls from the base reference face, including the cut length and mounting interfaces.
For an extrusion request, specify the aluminum alloy, temper and profile drawing. The retained sand-casting and CNC process entry does not establish that this example was extruded, so the selected route needs explicit review.
Contact and finish requirements
Mark any holes, machined faces and coating exclusions. Include quantities, black-anodizing requirements and inspection dimensions at the base and walls. State the heat source, airflow and installation conditions if thermal performance must be evaluated; no thermal capacity is verified by the photograph.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
