Custom Aluminum CNC Turning and Milling Parts with Stepped Cylinders and Single Hole Mounting Tabs
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDM240306Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ10 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm

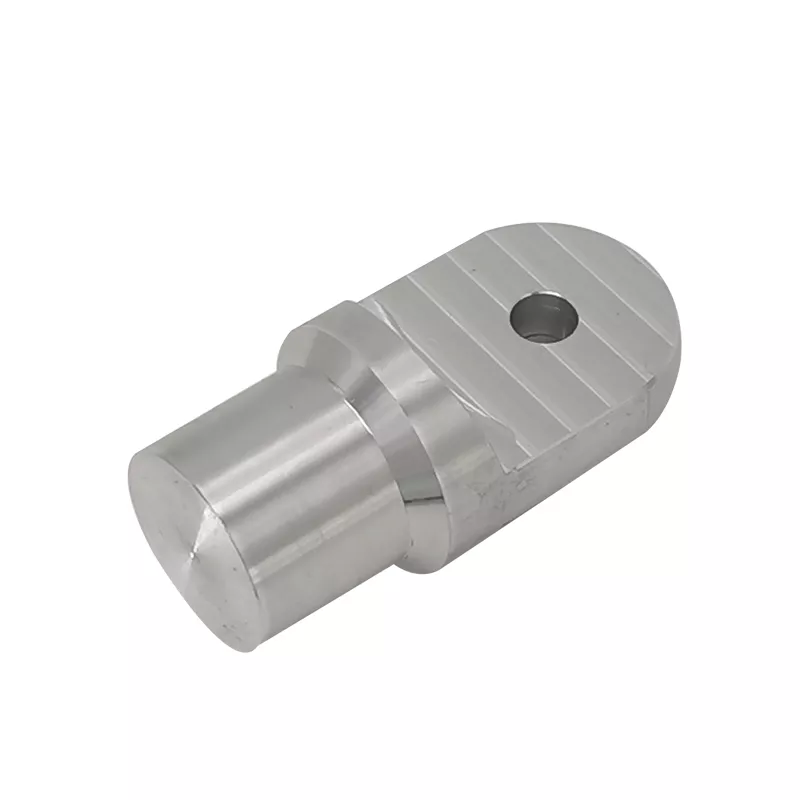

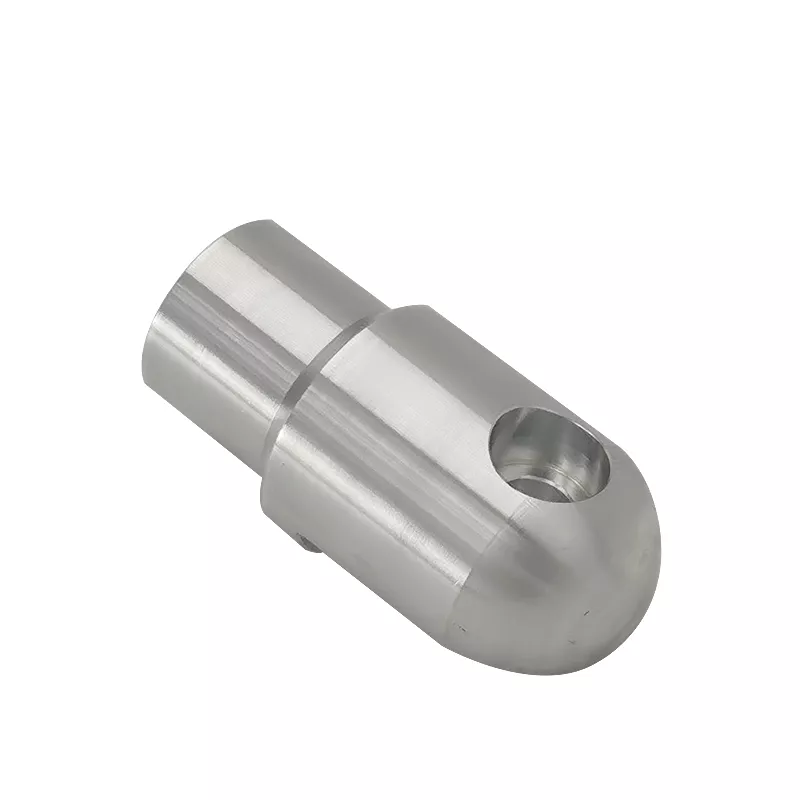

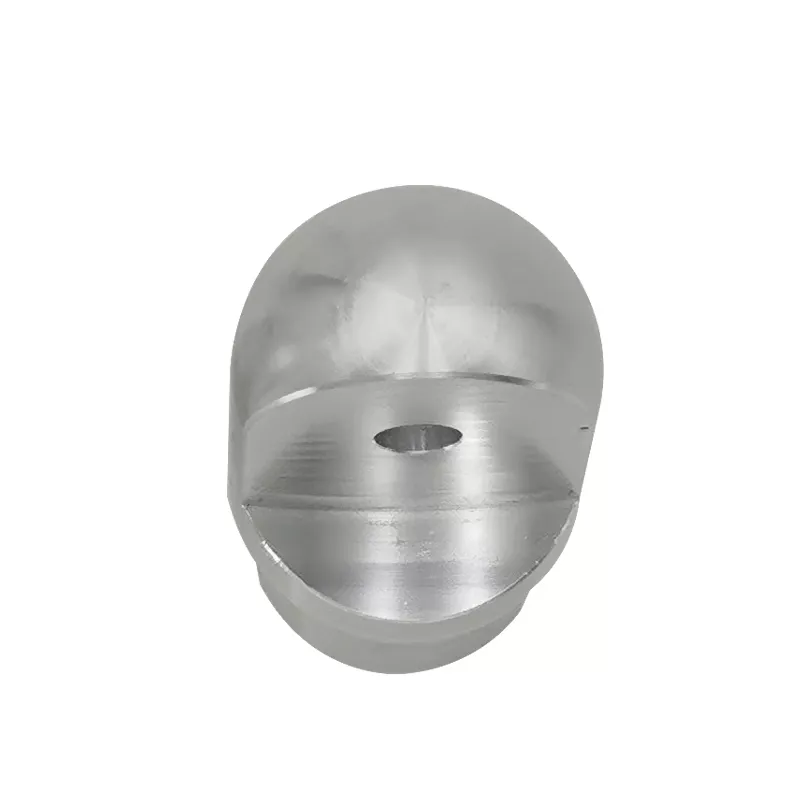

Turned cylinder and a flat single-hole tab
The examples combine stepped cylindrical ends with flattened mounting areas, each containing one hole. Dimension the hole from the turned axis and shoulder references so both operation groups describe the same fitted component.
DM240306 lists aluminum alloy with CNC machining, deburring and surface treatment. The minimum order is 10 pieces. Anodizing, polishing, painting, powder coating and chrome plating are listed finish options. Identify fitted surfaces requiring masking and inspection. Provide PDF, CAD, IGES or STEP drawings, quantities and revision for quotation.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
