Custom Large Aluminum Extrusion Radiator Heat Sink Profiles for Transistor Assemblies
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberS240304
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsinkMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 6 Meters

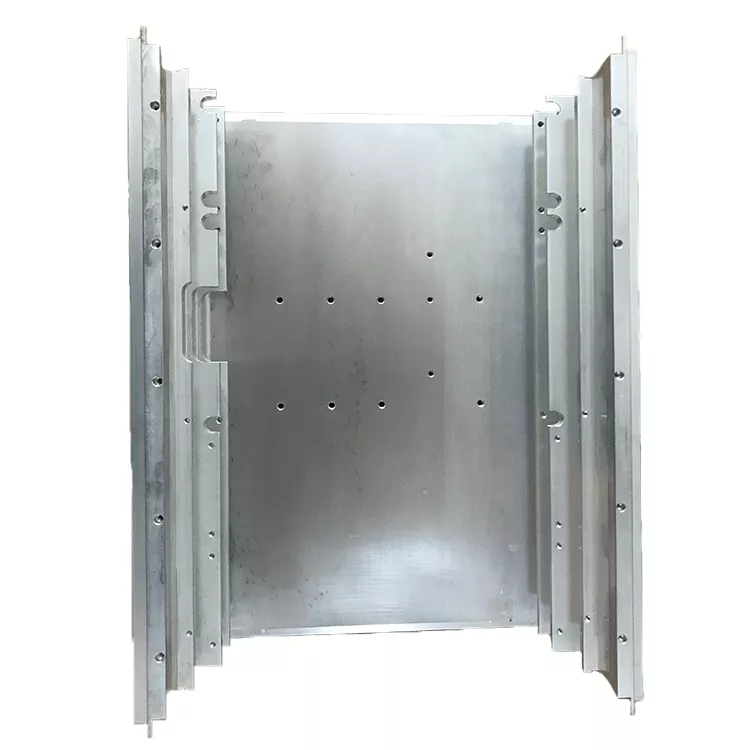

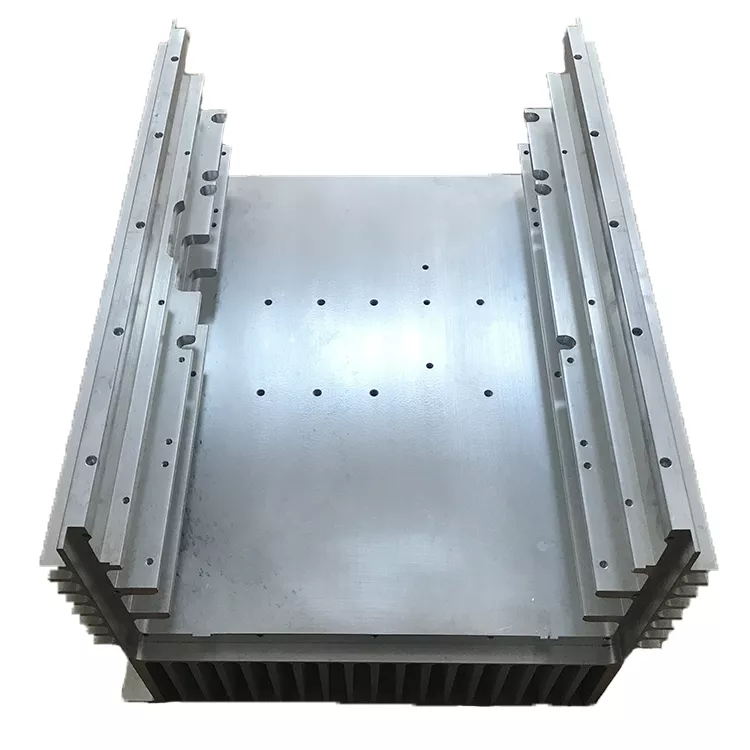

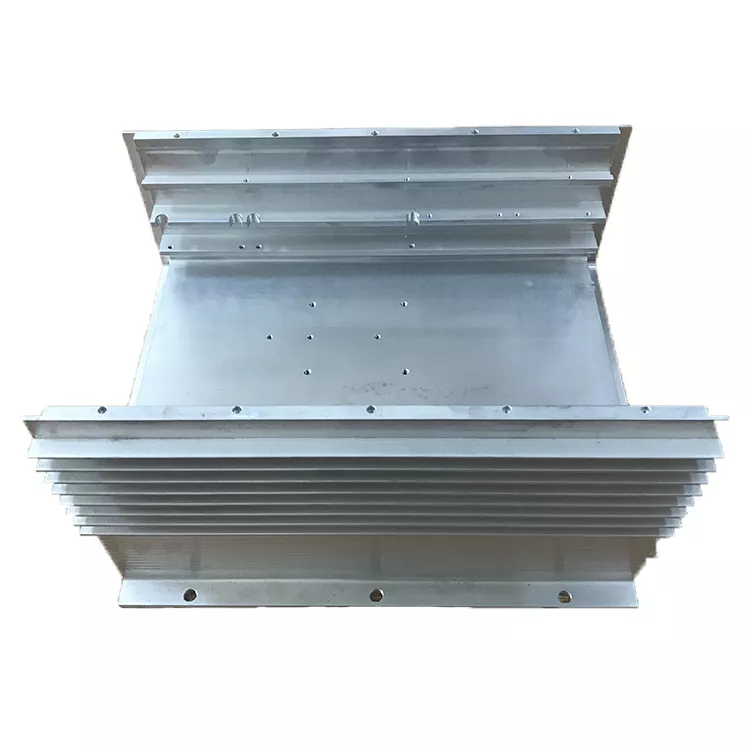

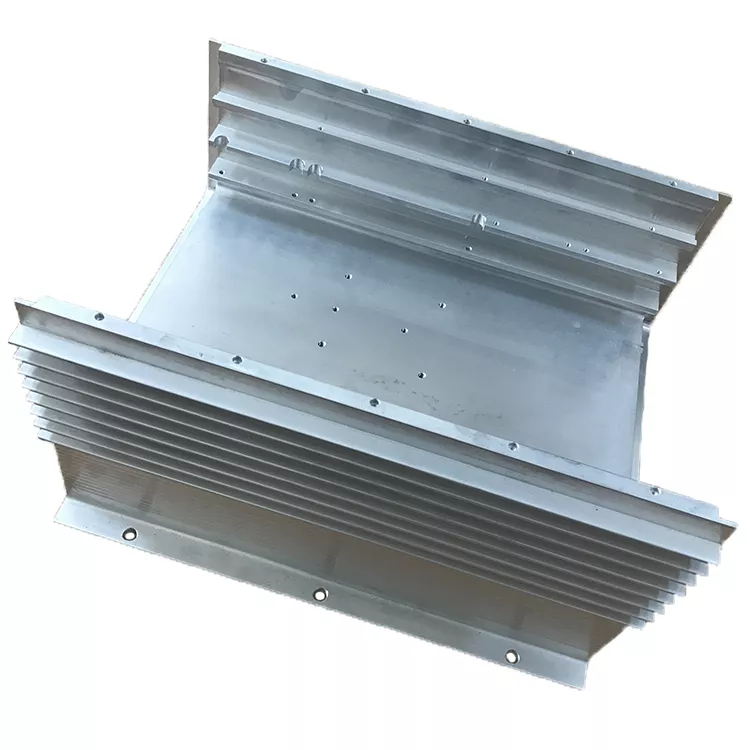

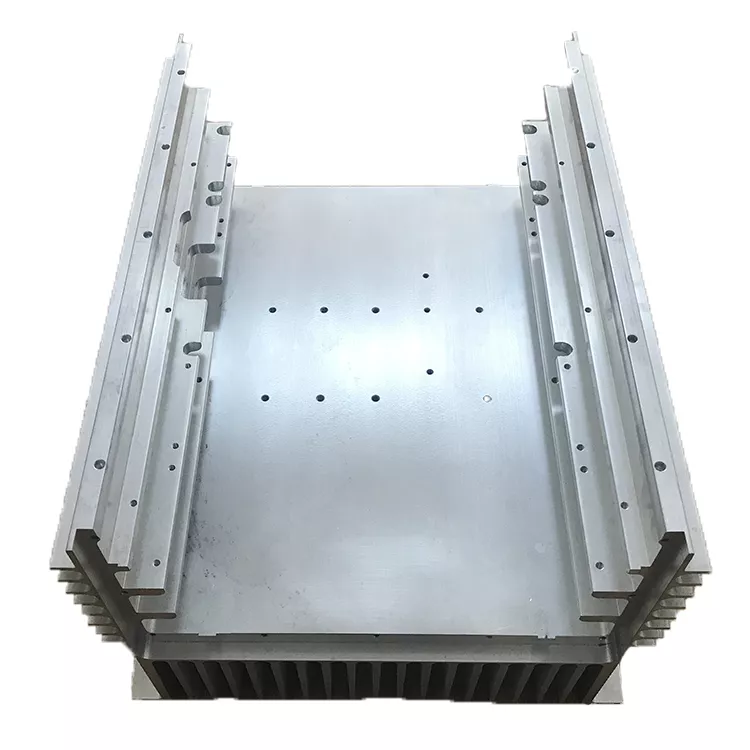

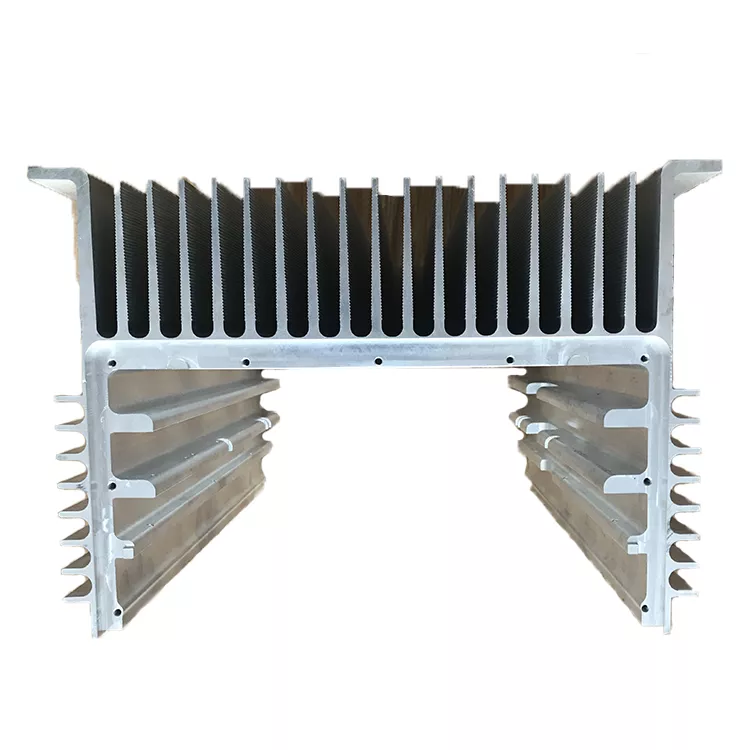

This radiator heat sink profile combines a broad finned upper section with an open space beneath it. Longitudinal channels and attachment features appear on the inner side walls, giving the assembly interfaces a different layout from a flat-base fin block.
Define the transistor assembly interface
For a transistor heat sink enquiry, provide the component mounting arrangement, contact area and space available inside and around the profile. Dimension the base, fins, inner channels and required cut length, then locate any drilled or CNC-machined features.
6063-T5 and 6061-T6 are the listed material and temper options. Select the required combination and identify the fitted faces and dimensions that need inspection. Extrusion, cutting, drilling and CNC fabrication can be reviewed against the finished drawing.
Finish and quotation inputs
Anodized, oxide and powder-coated finishes are listed options. State the color and any masking around contact or fixing areas. Include quantity, drawing revision, heat load and operating conditions so the manufacturing proposal addresses the actual installation and its acceptance requirements.
