OEM Custom ABS Plastic Injection Molded Button Caps and Small Control Panel Components
-
Model NumberS240306Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingCertificationISO9001 CE
-
MaterialPA66/PP/ABS /PC, EtcFeatureHigh Precision Injection Parts
-
Product namePlastic Injection PartsDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Surface treatmentPolish. Etched. Texture.electroplating.paintingColorCustomer's Request
-
ProcessInjection Mould Plastic PartApplicationIndustrial Plastic Parts
-
KeywordPlastic injection

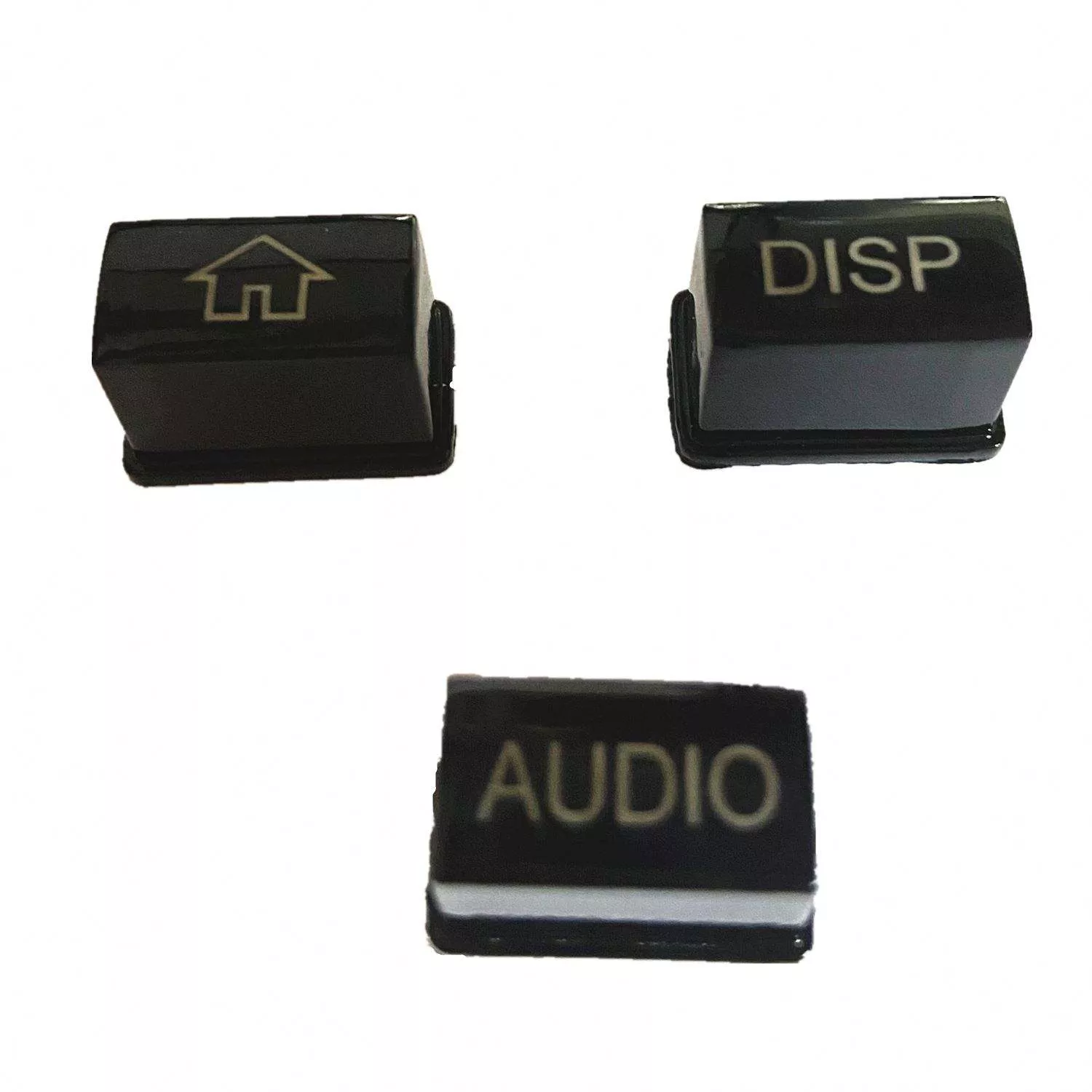

S240306 small injection molded component enquiries include the illustrated rectangular button-cap forms. The examples have a raised face and surrounding lower edge, with different visible legends. Identify the cap design and the required supply condition, including whether markings are part of the quotation.
Cap shape and mating interface
Provide the outer profile, height and the underside geometry that connects the cap to its mating component. Define the required clearances and visible-face dimensions. The photograph shows examples of marked caps; it does not establish compatibility with a particular control mechanism or finished device.
ABS is one of the listed material options, with PA66, PP and PC also available for review. Specify the resin grade, color and the face finish. If legends are required, submit the artwork, location and acceptance reference and confirm the marking method with the proposal.
Order information
Send the drawing revision, quantity per cap design and inspection requirements. Clarify whether the enquiry is for molded caps alone or any matching parts. Product compliance and any durability requirement for markings should be agreed for the actual ordered configuration.
