Custom Extruded Aluminum Heat Sink for LED Projects | High Power Design Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel NumberS2301
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysMaterial6063/ 6061 etc
-
MachiningAvailableSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfSurface ColorCustomized Panton Colors
Parallel fins within a mounting base

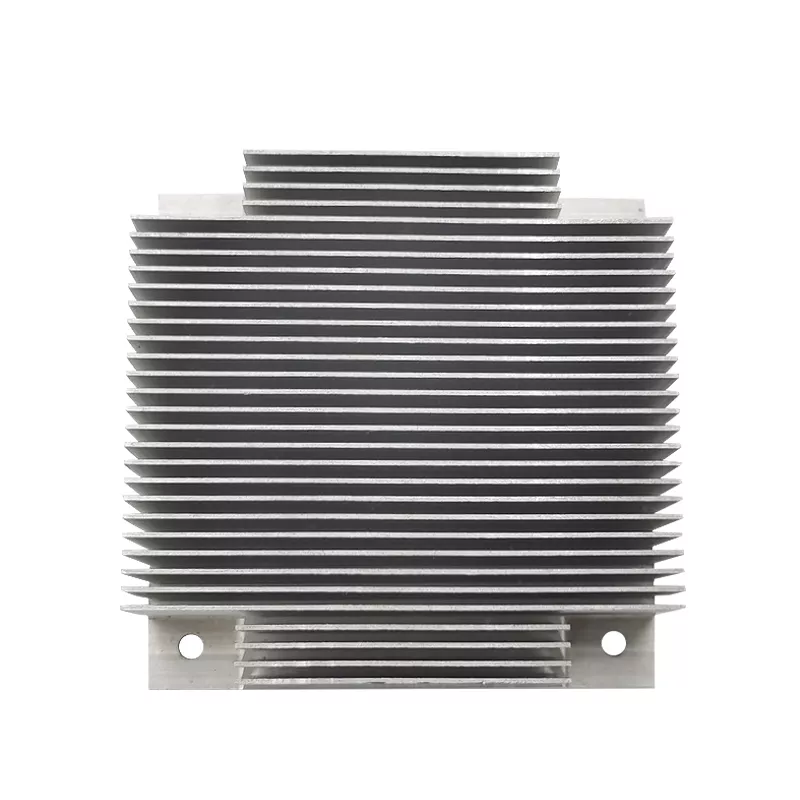

The retained example has a rectangular fin array, side mounting regions and fixing openings. Define the base contact face and hole pattern, then dimension the fins and clearances from those references.
High-power LED requirements need operating conditions
Provide the heat-source contact, input conditions, airflow and installation space, with the selected alloy and profile dimensions. The finned shape does not establish a power rating or compatibility with a particular LED.
Include quantities, machining and surface finish, with dimensional and thermal acceptance criteria. Similar examples in the catalog do not independently verify a different size or cooling capacity.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
