Custom ABS Plastic Injection Molding Parts with Long Channel Profiles, End Bosses and Mounting Inserts
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberDmetal2309Plastic Modling TypeInjection
-
Processing ServiceMoulding, CuttingApplicationCustom Palstic Parts
-
Drawing Format.pdf/ .stp/.stepProcessInjection Molding
-
MaterialPA66/PP/ABS /PC/ Glass Fiber, EtcKeywordCustom Plastic Injection Parts
-
NamePlastic InjectionMOQ100 pcs

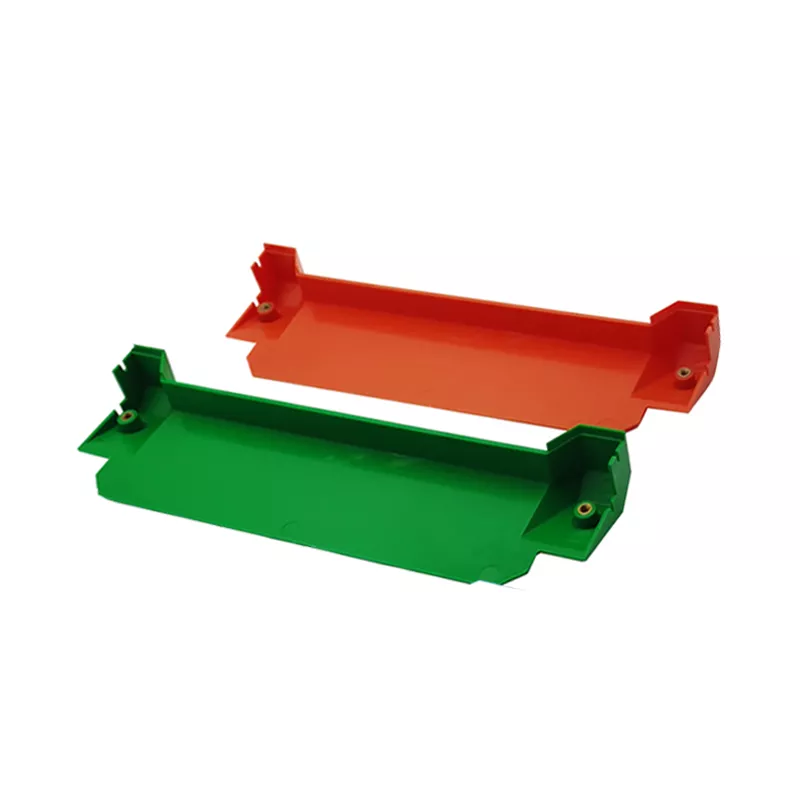

The examples show long shallow channel-shaped pieces with raised walls and bosses near both ends. Inserts are visible at the boss positions. Define the channel section and locate the mounting points from a common reference so they align with the adjoining assembly.
Boss and insert details for mold review
Specify the ABS grade, wall sections, boss geometry and whether insert supply or installation is included. Model Dmetal2309 lists injection molding and cutting, PDF, STP and STEP drawings, and MOQ 100 pieces. Include the quantity and inspection dimensions; sample colors do not identify different resins, and the image does not establish an insert material or thread specification.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
