Custom Plastic Injection Molded Channel Mounting Brackets with PA66 PP ABS PC Material Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Model Number2415601Plastic Modling TypeInjection
-
Processing ServiceMoulding, CuttingColorCan be customized
-
SizeCustomized SizeMaterialPA66/PP/ABS /PC, Etc
-
CertificationROHSFeatureHigh Precision
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag

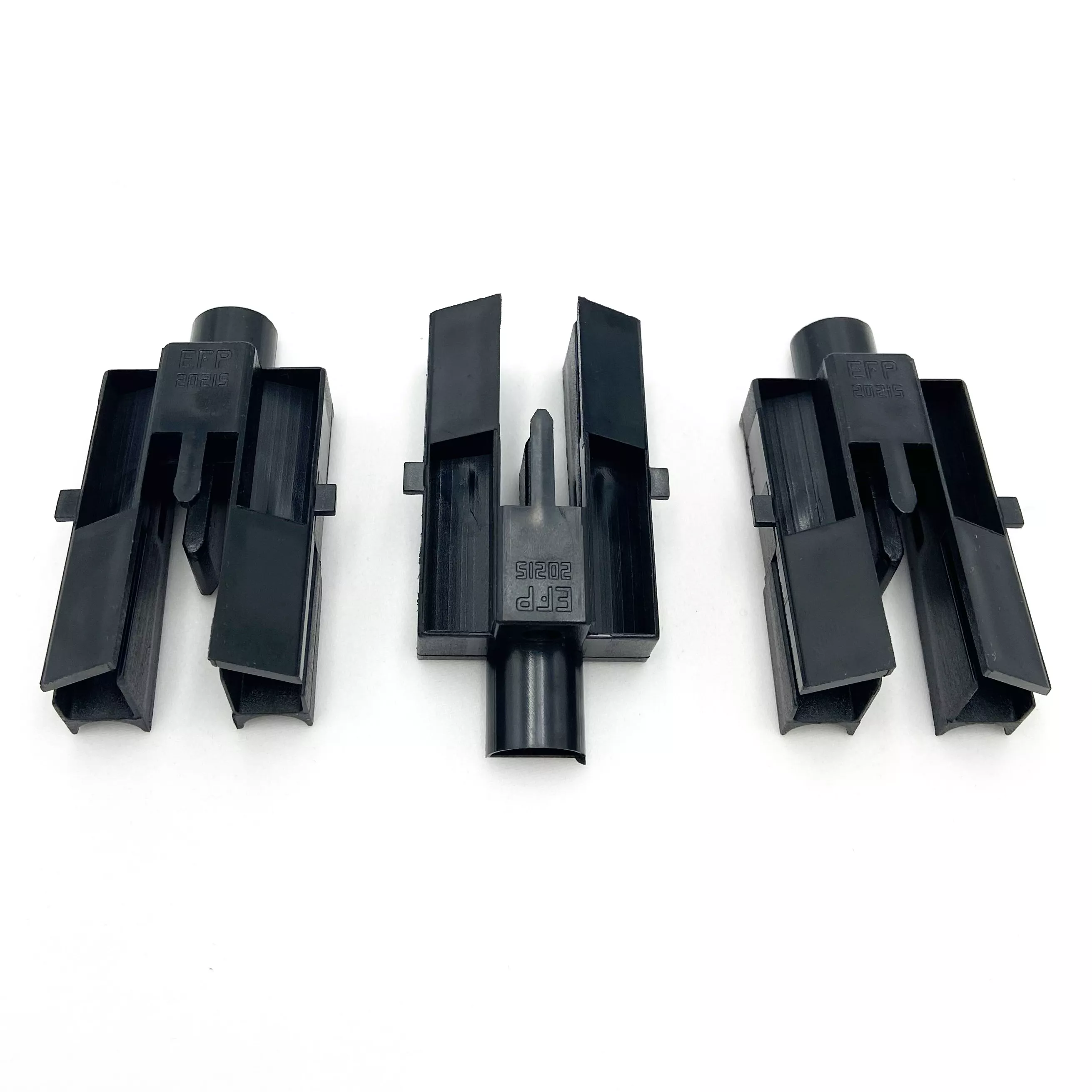

Channels and locating tabs around a cylindrical interface
The examples show molded forms with long open channels, internal webs, tabs and a round end interface. Define how the mating component engages those features, with the channel widths and locating faces dimensioned together.
Specify the resin for the selected part
State the required PA66, PP, ABS or PC grade and any reinforcement or material-document requirements. Include color, surface texture and the dimensions controlling assembly fit.
Provide the part drawing or CAD model, quantities and revision. Mark critical channel, tab and cylindrical interfaces for inspection, with any secondary-cutting requirements listed separately.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
