OEM Custom 5 Axis Aluminum CNC Turning Parts and Laser Metal Cutting with Cross-Drilled Features
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes

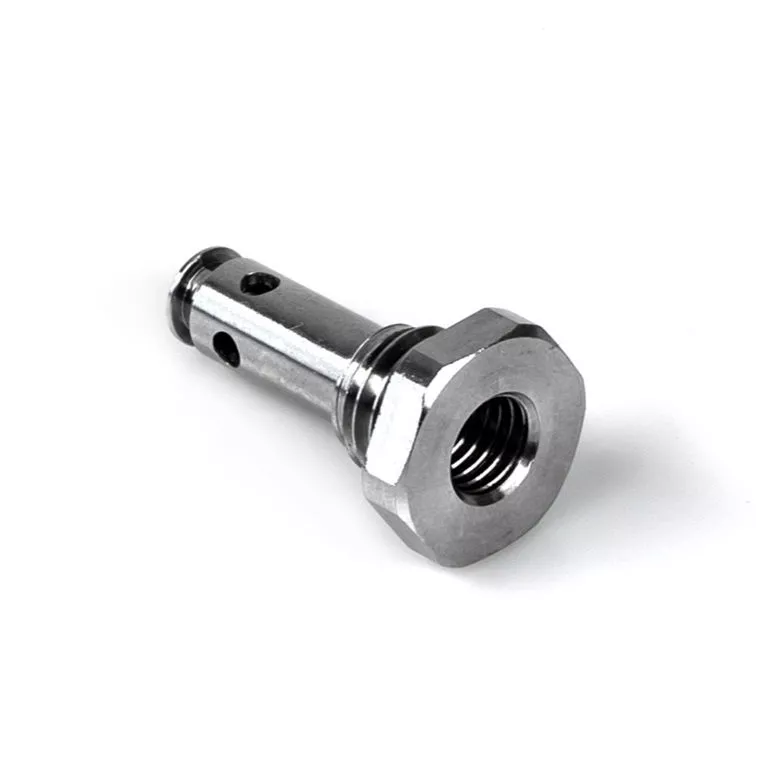

The illustrated component combines a stepped cylindrical shank, cross holes, outer flats and an internal threaded opening. Its drawing should define how the turned diameters, holes and threaded feature relate to the mounting face.
Machining scope from the finished drawing
Specify thread size and depth, shoulder positions, cross-hole dimensions and the references used for inspection. In a 5 axis or laser metal-cutting enquiry, identify the features assigned to each operation and the surfaces that require subsequent turning or milling.
Aluminum, steel and brass are listed material choices, with CNC machining and OEM/ODM service. Select the required alloy or grade and surface treatment, including any fitted-area masking. Provide PDF, CAD, IGES or STEP files, drawing revision and quantity for a quotation covering the finished supplied component.
