Custom Aluminum CNC Milling and Drilling Parts with Multiple Bores and Profiled Faces
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200448Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

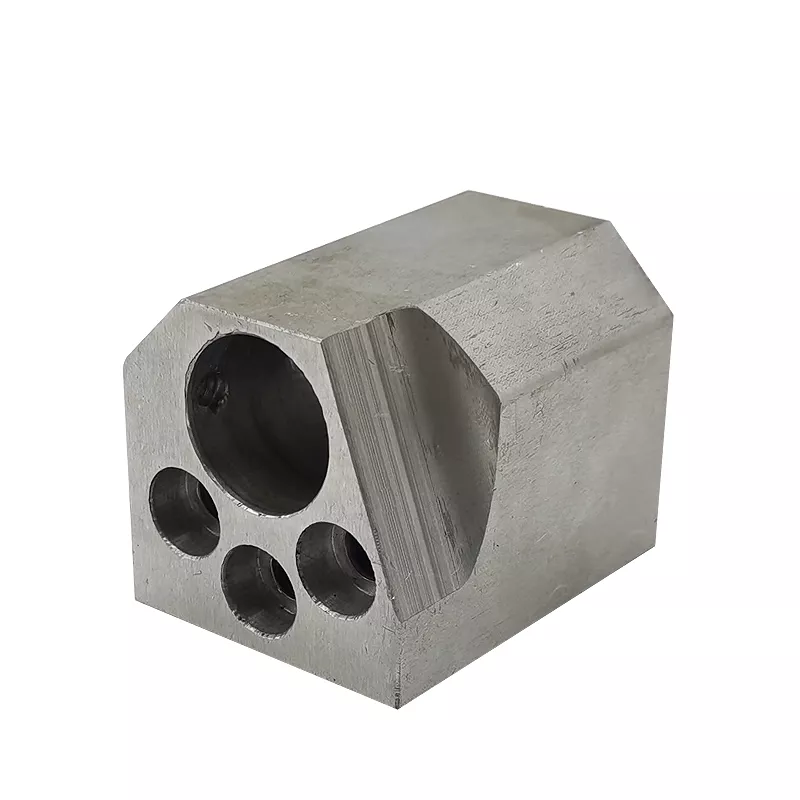

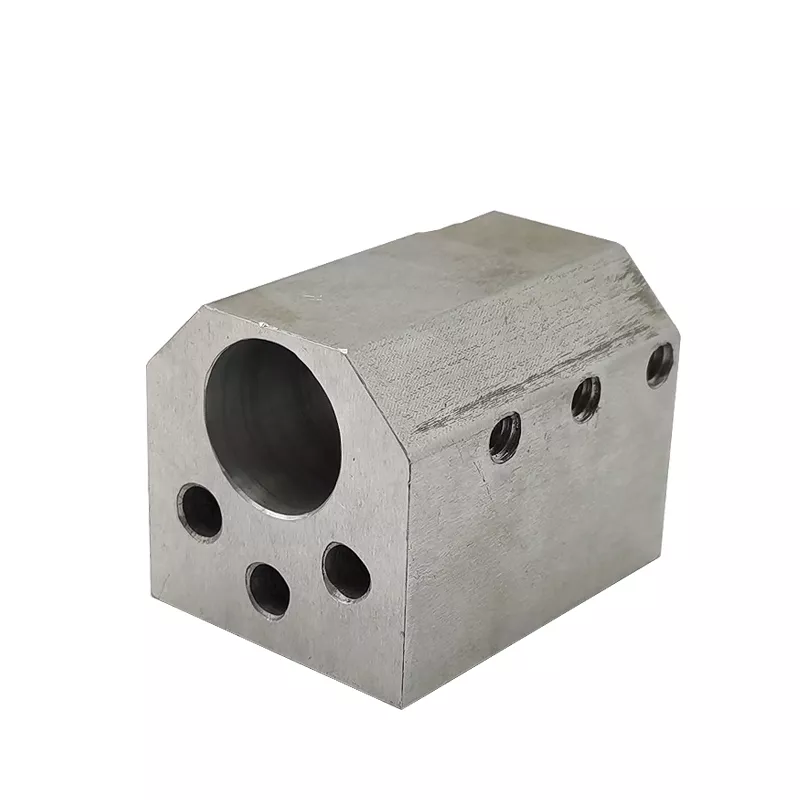

This CNC machining example is a compact block with a large front bore, three smaller openings and a profiled side face. The drawing should show how the bore positions relate to the external faces and to any internal or intersecting features.
Specify the complete block
Dimension the outer envelope, bore diameters and depths, center distances and side contour. Identify any threaded features and provide section views where the internal arrangement cannot be defined from the outside. Mark fitted faces and the relevant inspection references.
Dmetal-200448 lists aluminum alloy, customized sizes and anodized, oxide or powder-coated finishes. State the selected alloy and surfaces requiring masking. PDF, CAD, IGES and STEP formats are listed, with a 100-piece minimum order. Include drawing revision and quantities for quotation.
