Custom Marine Aluminum 1 1/4 Inch Half Pin CNC Turning Machining and Anodizing Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)
One mounting tab above a locating shoulder

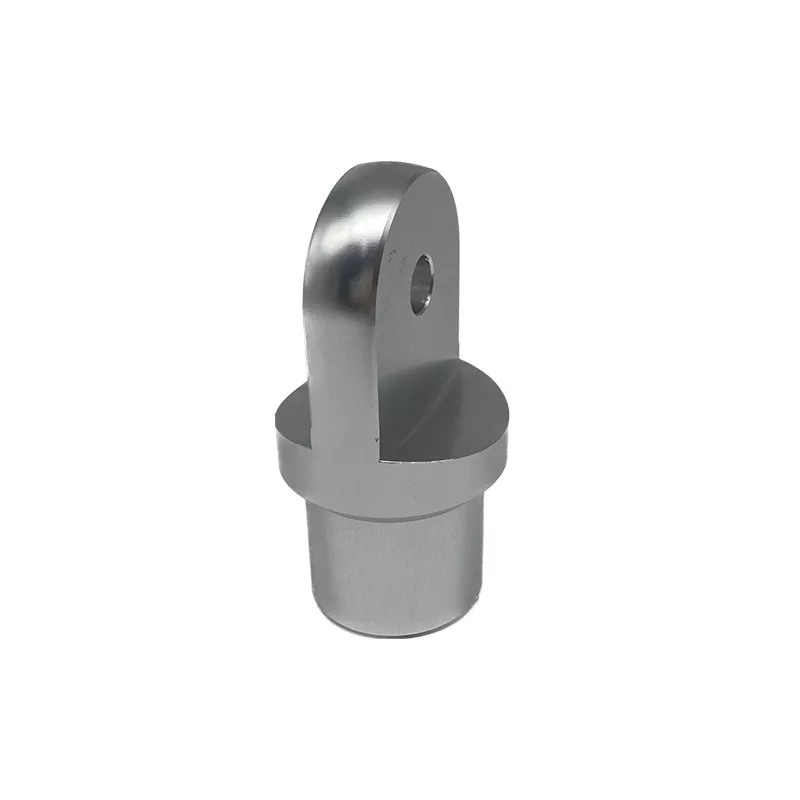

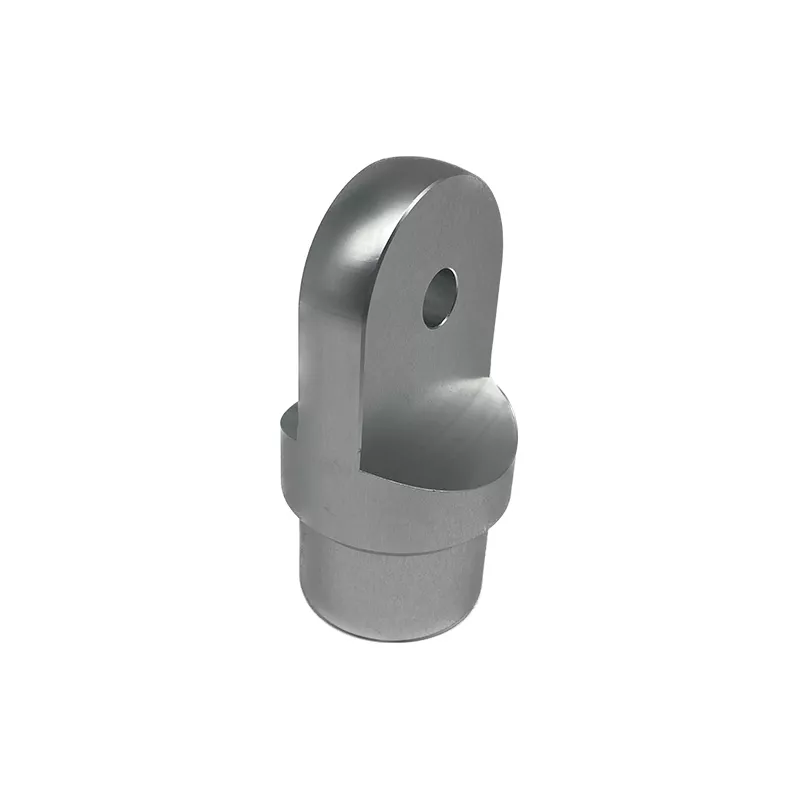

The sample has a single upright tab with a cross-hole, a broad shoulder and a round lower shank. Define the tab thickness, hole axis and shoulder position from the shank reference surfaces.
Specify the mating dimensions
For a nominal 1 1/4-inch half-pin enquiry, provide the actual interface drawing, aluminum grade and required material condition. Identify turning, milling and drilling requirements, with the anodizing specification and finish allowances.
Include the mating hardware, quantities and drawing revision. State operating conditions and inspection criteria for the finished hole, shank and shoulder interfaces.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
