OEM Custom Aluminum CNC Turning and Milling Parts Set Service with Slotted Conical Components
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2012Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

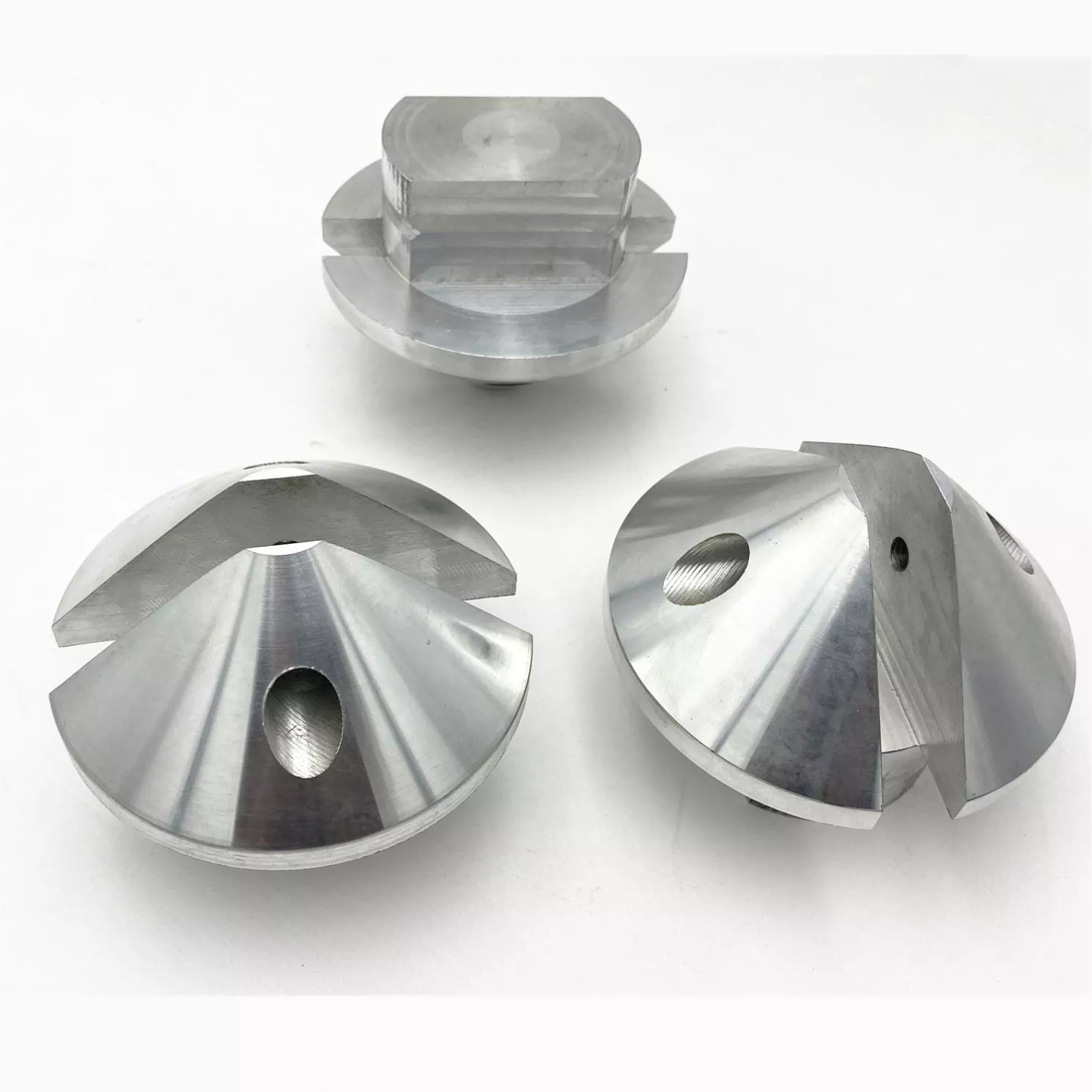

Conical surfaces with intersecting slots

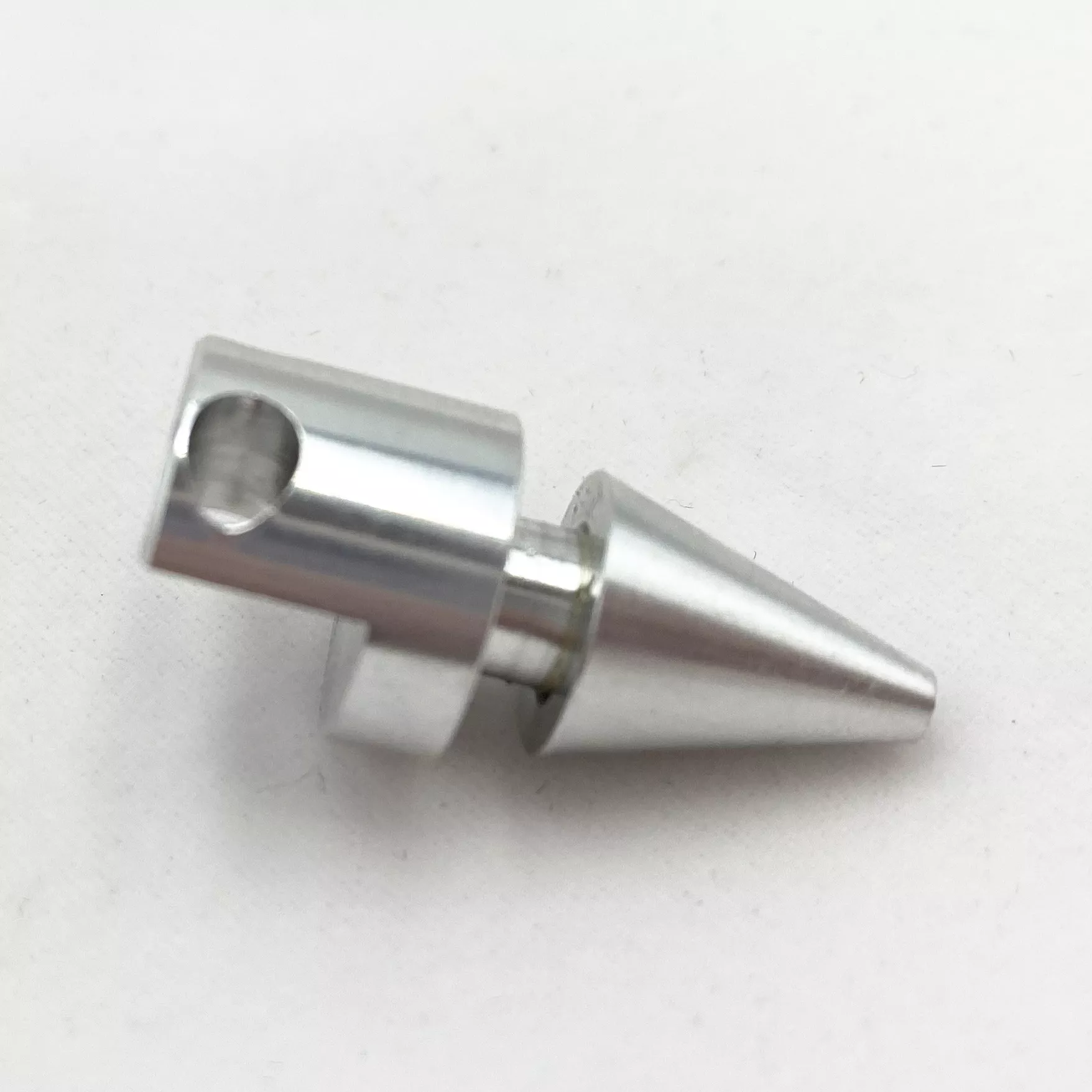

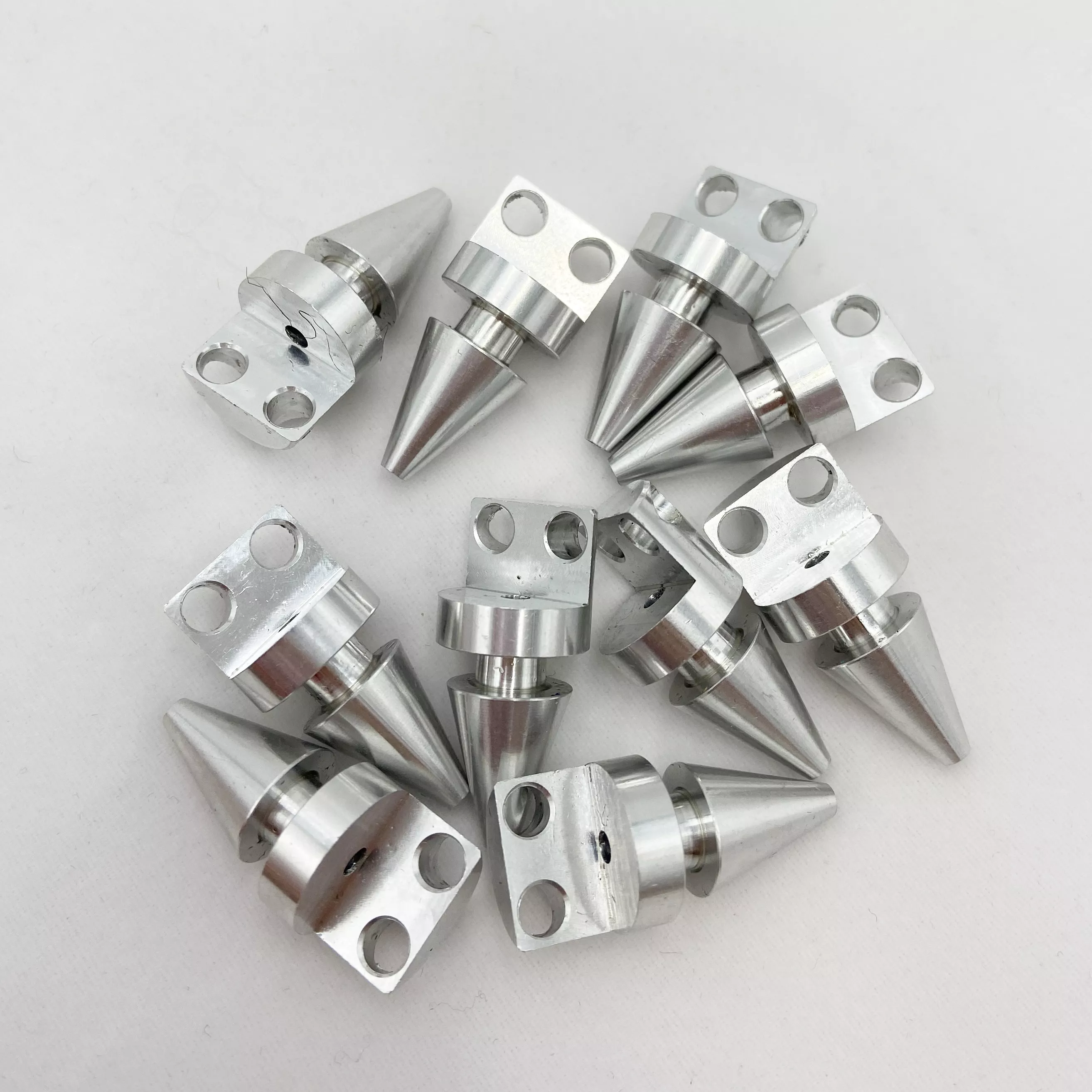

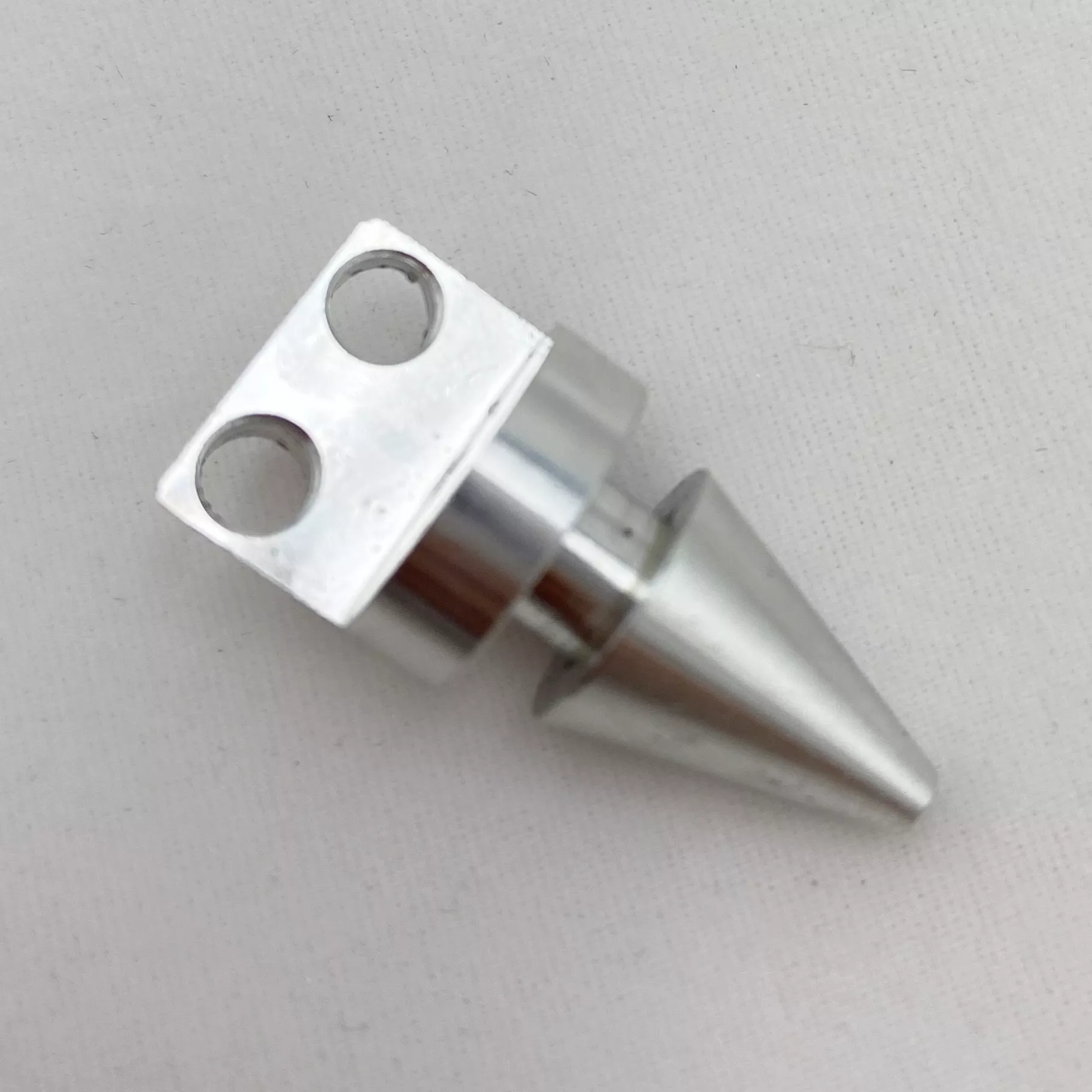

The illustrated components combine tapered circular faces with stepped centers, broad slots and cross holes. These examples can be reviewed as individual custom parts or within an OEM set enquiry, with a separate drawing and quantity for every ordered item.
Define the cone angle, outer and center dimensions, slot width and depth, and cross-hole locations. Show the mating geometry and identify the surfaces used to inspect fit and alignment.
Quotation for the supplied parts
Model 2012 lists aluminum alloy with customized sizes and anodized, oxide or powder-coated finish options. Mark contact surfaces requiring masking. PDF, CAD, IGES and STEP formats are listed, with a minimum order of 100 pieces. Include part numbers, revisions and quantity breakdown for review.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
