OEM Custom Aluminum Extrusion Profiles with Finned Bases, Raised Dividers and Machined Mounting Holes
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationDecorationsShapeflat
-
Alloy Or NotIs AlloyModel NumberS2411
-
Tolerance0.05mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time15-21 daysProduct nameCustom Extrusion Aluminum Heat Sink Enclosure
-
ColorPanton ColorSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfCertificationISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV
-
KeywordHeatsink/ ProfilesMaterial & TemperAlloy 6063-T5/6061-T6
-
Deep processExtrusion Driling Precison Cutting CNCFabricationExtruded+cutting+machining
-
LengthLongest 5.8 Meters

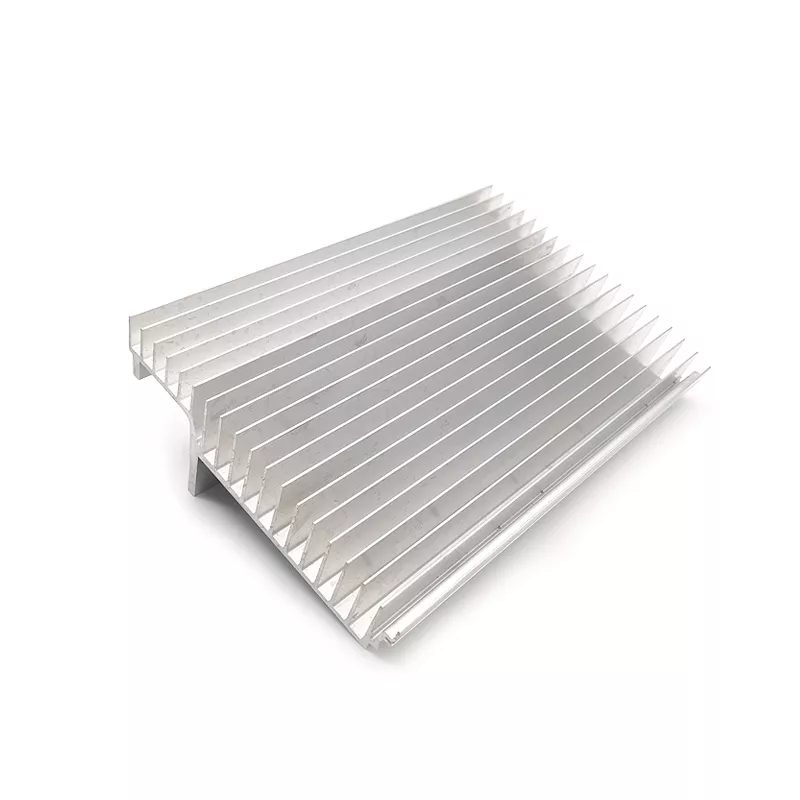

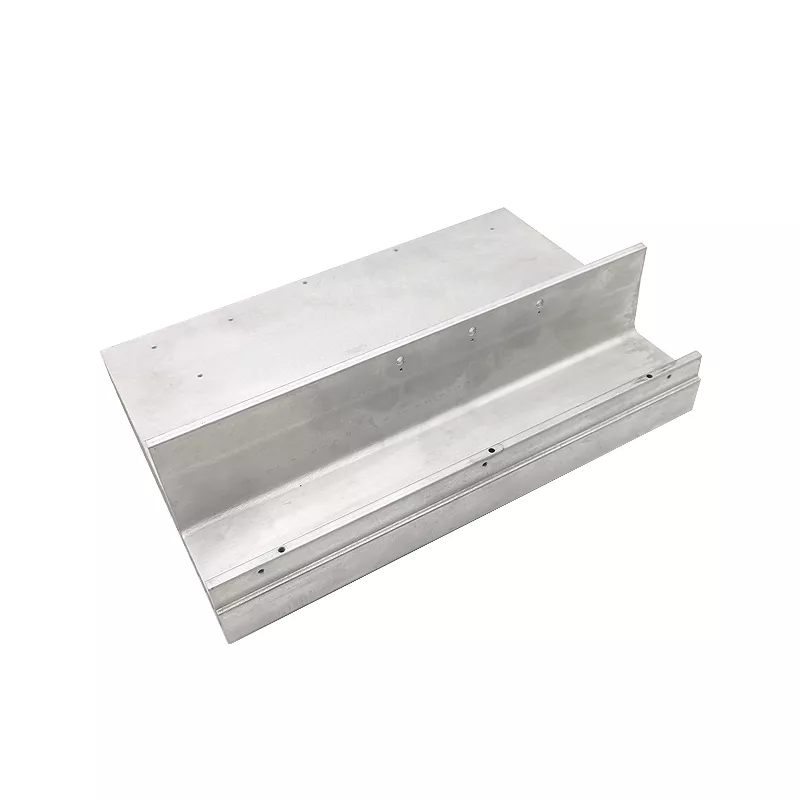

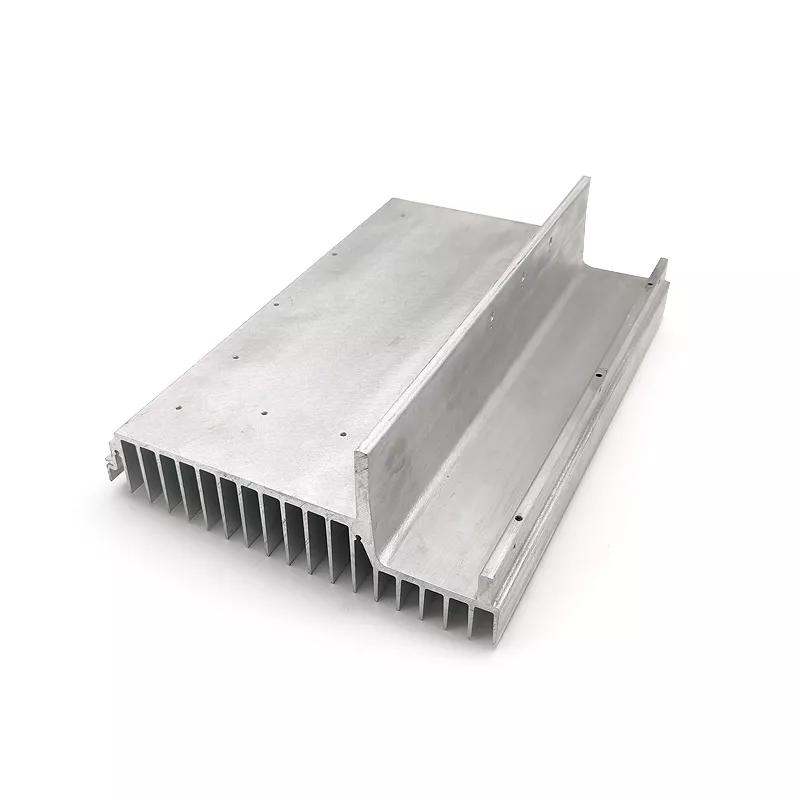

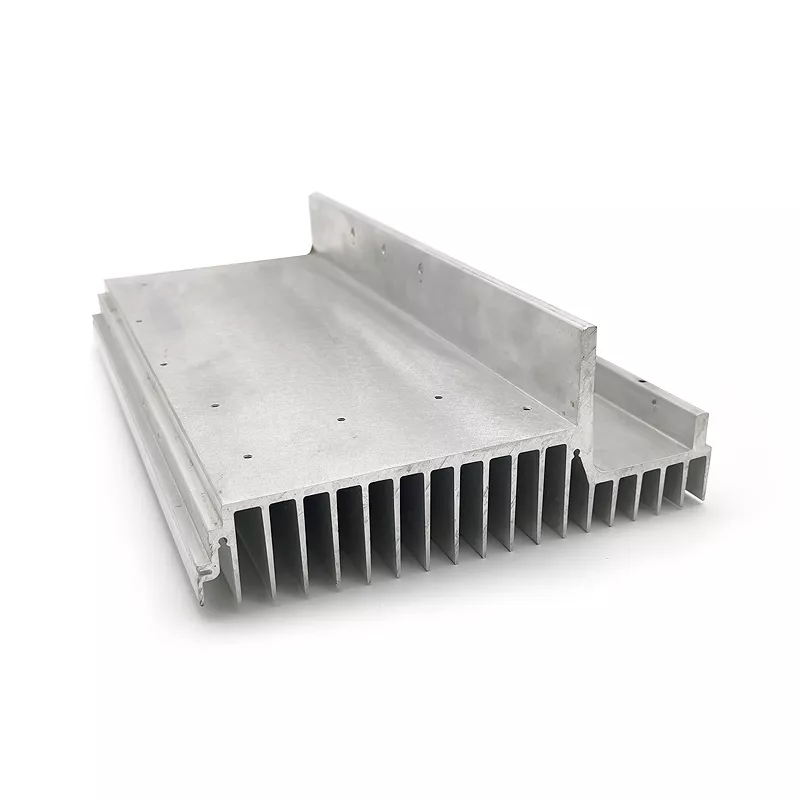

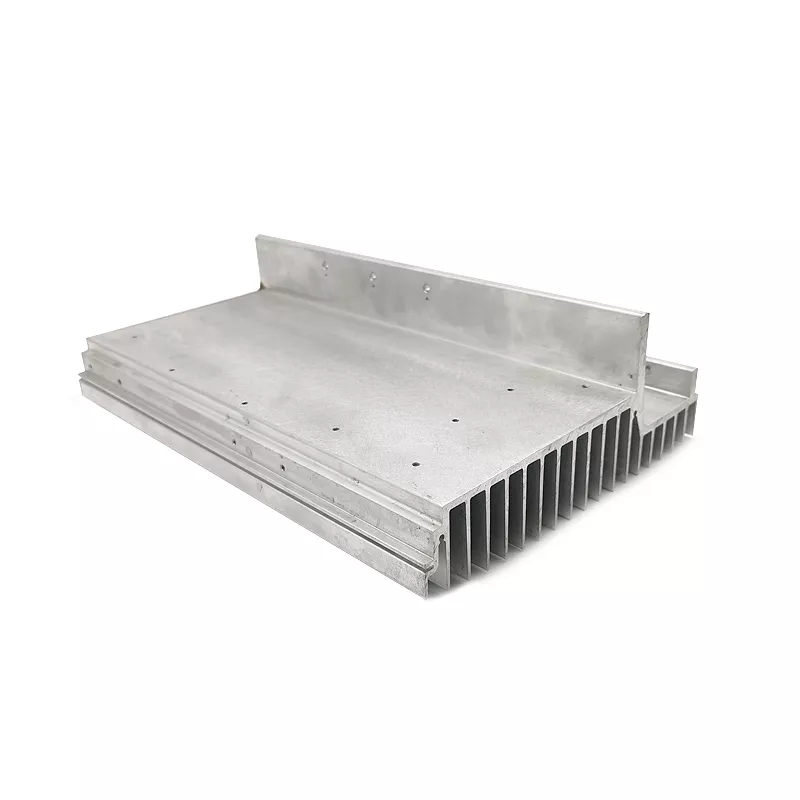

A broad mounting surface, an upright divider and a narrower side area form the top of the example, with a bank of fins below. Show the mounting holes and contact areas against the adjoining components so the divider and side clearances can be coordinated.
OEM section and supplied length
Model S2411 lists extrusion, cutting and machining in 6063-T5 or 6061-T6 aluminum. Choose the required material and temper, then provide the cross-section, cut length, quantities and any end machining. Specify anodized, oxide or powder-coated finish requirements and inspection references. Where cooling matters, include the installation conditions and thermal requirements for assessment.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
