OEM Custom Brass and Aluminum CNC Turning Lathe Parts with Stepped Shafts and Offset Arms
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes

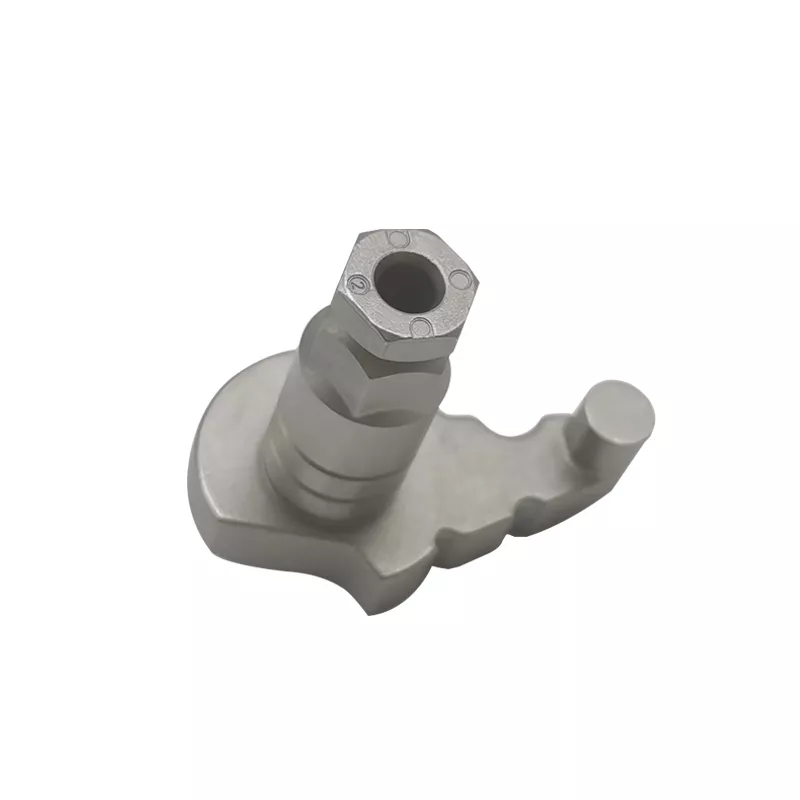

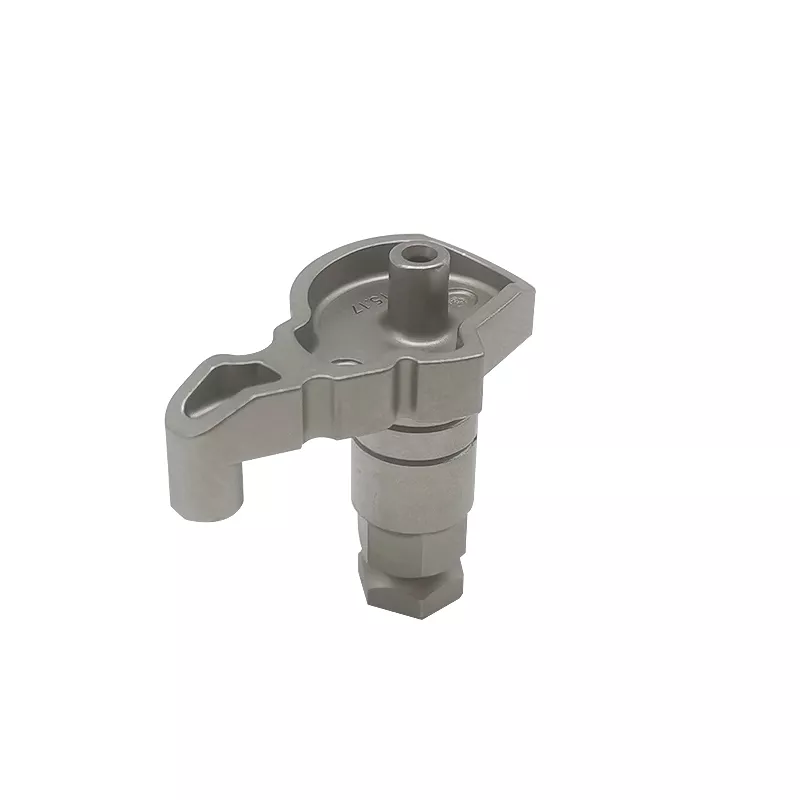

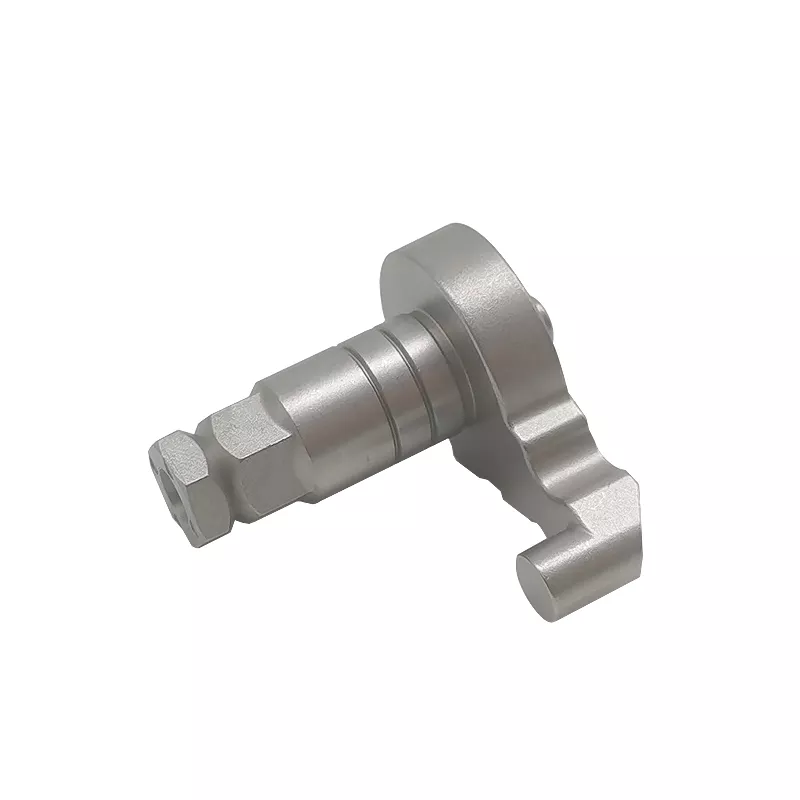

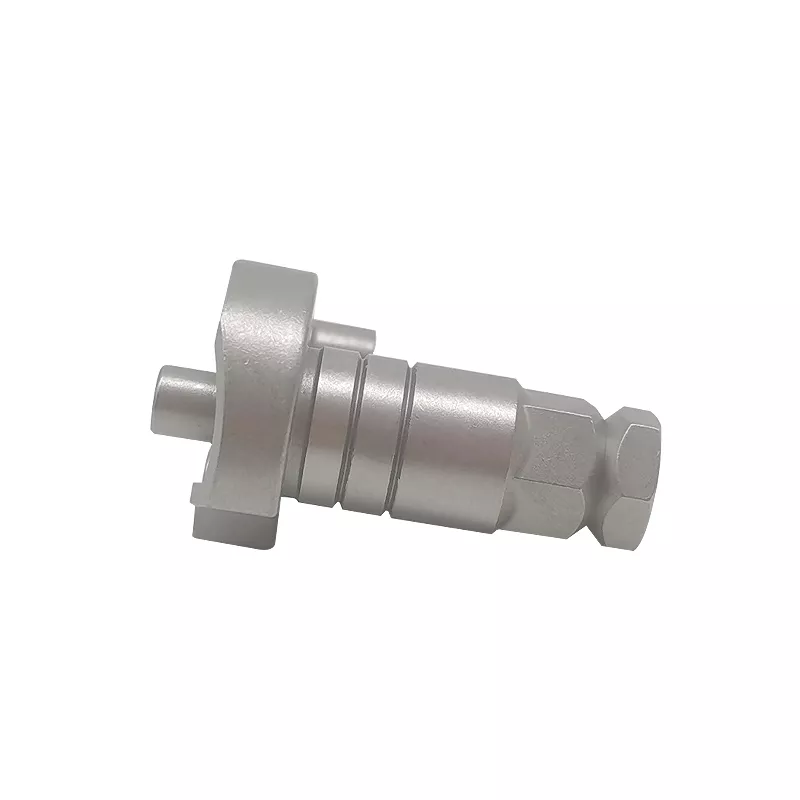

Stepped shaft with an offset arm
The pictured component combines several turned diameters and grooves with flat sections and an offset arm. The quotation drawing should define the rotational features and the arm position together, including the relationship between the shaft axis and the outer mounting features.
Specify shoulder lengths, diameters, groove details and any threaded or bored features. Identify the fitted surfaces and provide mating-part information where it controls clearance or alignment.
Material and finished condition
Aluminum, steel and brass are listed material options for the Dmetal CNC machining service. Select the required material for the ordered component and mark the anodizing, powder coating or plating requirements appropriate to that selection. Send PDF, CAD, IGES or STEP drawings, quantity and revision for review of turning, milling and inspection scope.
