OEM ABS or PC Plastic Injection Parts with Repeated Upright Tabs on a Custom Base Strip
-
Model Numberplastic injection partsPlastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingProduct namePlastic Injection Molding Custom Plastic Parts
-
ColorCustomizedSizeCustomized Size
-
MaterialPA66/PP/ABS /PC, EtcCertificationROHS
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag

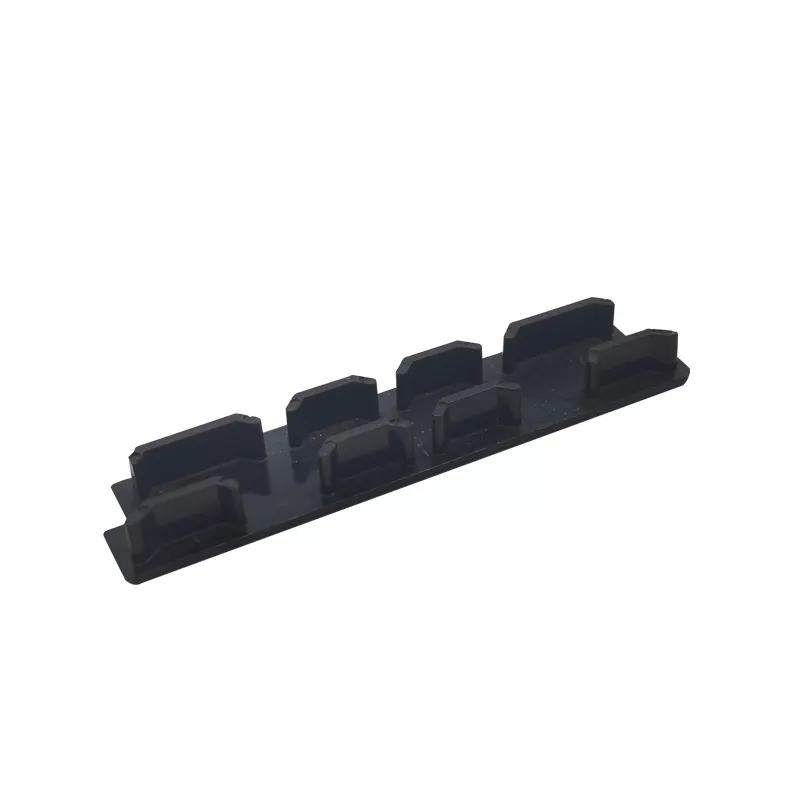

The illustrated plastic injection part has an elongated base with repeated upright tabs arranged along its length. The tabbed geometry provides a clear starting point for an OEM drawing enquiry. ABS and PC are included in the listed material choices, alongside PA66 and PP; the ordered resin grade remains a project specification.
Define the repeated features
Show the number, spacing and height of the upright tabs and the outline of the base strip. Include the mating-part geometry where clearances or engagement are important. The photograph establishes the visible arrangement, while the drawing defines dimensions and acceptable variation along the strip.
Custom size, shape and color are listed, together with molding, cutting and painting. Identify the required surface on the base and tabs, including any faces that should remain untreated. Confirm the intended material and finish combination for the actual component.
For an OEM quotation
Provide the drawing revision, quantity and the inspection points that matter for assembly. State any additional packaging protection needed around projecting tabs. Any stiffness, retention-force or environmental requirements need to be specified for the ordered design and supported by appropriate acceptance evidence.
