Custom Plastic Injection Mold Parts with a Slotted Cup Profile and Raised Rim Features for Industrial Assemblies
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS240306Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingCertificationISO9001 CE
-
MaterialPA66/PP/ABS /PC, EtcFeatureHigh Precision Injection Parts
-
Product namePlastic Injection PartsDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Surface treatmentPolish. Etched. Texture.electroplating.paintingColorCustomer's Request
-
ProcessInjection Mould Plastic PartApplicationIndustrial Plastic Parts
-
KeywordPlastic injection

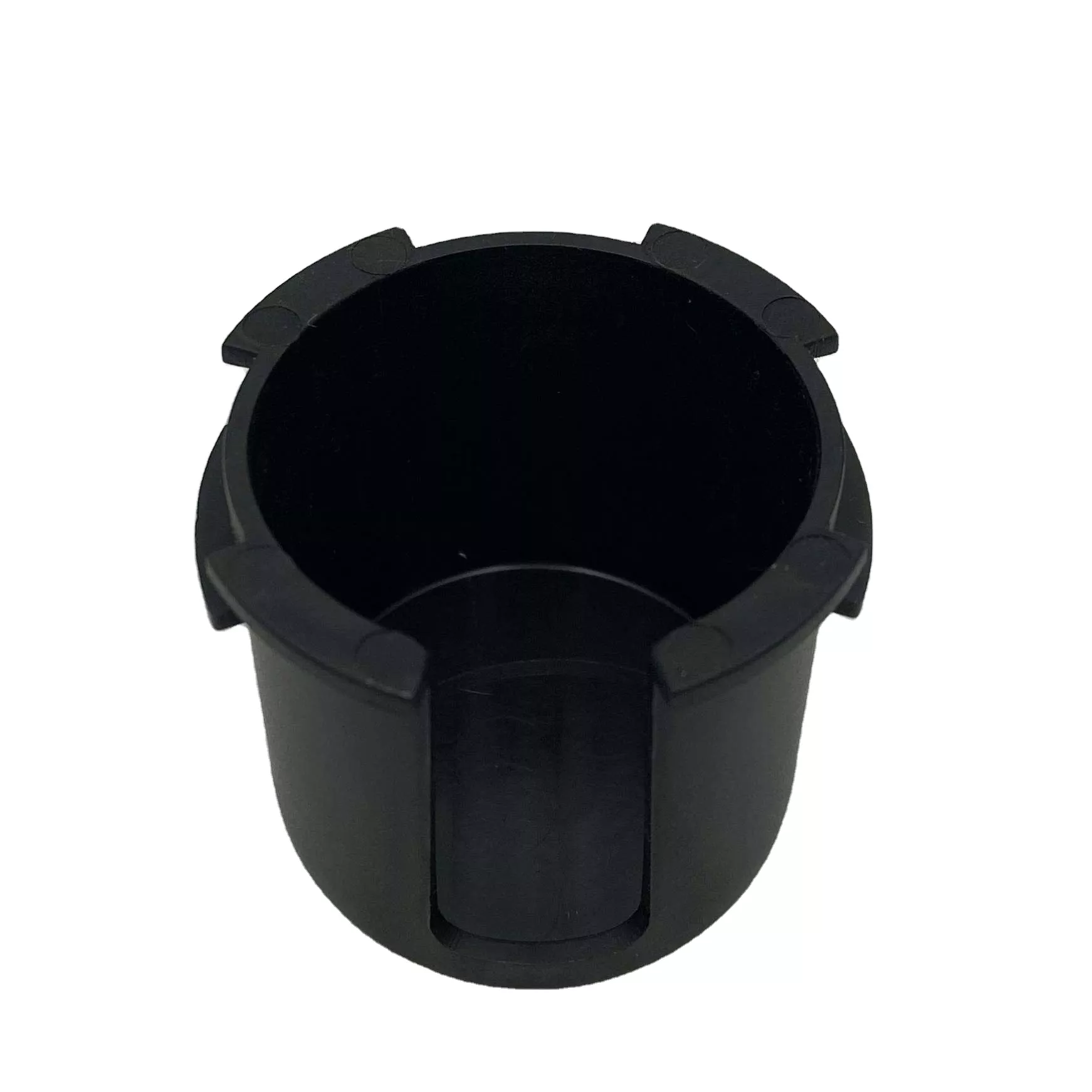

The pictured S240306 part has a deep cup-shaped body, slots in its side wall and raised features around the rim. Define the cavity, outer profile and rim geometry in section views so the mating clearances can be reviewed.
Details for the molding enquiry
- Select the PA66, PP, ABS or PC grade for the intended industrial assembly.
- Dimension the wall slots and rim features from the faces used to locate the part.
- Identify color, surface texture, cutting or painting requirements and the dimensions inspected after finishing.
PDF, CAD, IGES and STEP drawings are listed. Include the quantity and revision; the photograph does not specify a retention force or operating temperature.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
