Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDM2012
-
Tolerance±1%Processing ServiceBending, Decoiling, Welding, Punching, Cutting, extruding
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Fins between two mounting regions

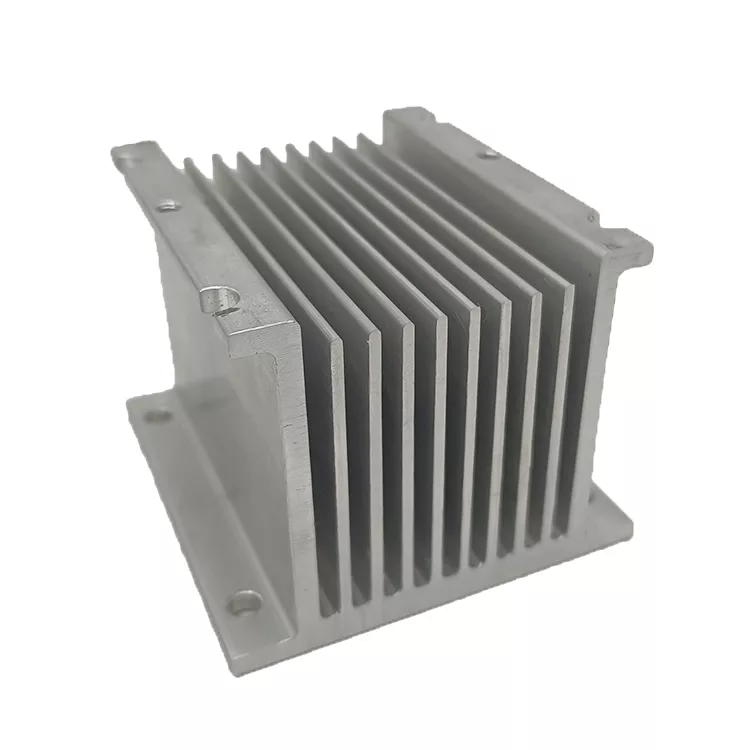

The light-colored example has parallel fins, a broad base and projecting side areas with fixing openings. Dimension the base and side contacts first, then locate the fin array and mounting holes from those surfaces.
For a custom aluminum extrusion, specify the alloy, temper and complete cross-section. Define the base thickness, fin layout and side-fixing geometry on the same drawing, including the allowances needed for any CNC-finished mounting surfaces.
Finished dimensions at the assembly
Include cut length, quantities, finish and any machined holes or faces. Mark the dimensions requiring inspection at the mounting regions and fin clearances. The photograph does not verify a shared size, structural rating or heat-transfer performance for the listed material options.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
