Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-2309
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Use the side flanges as mounting references

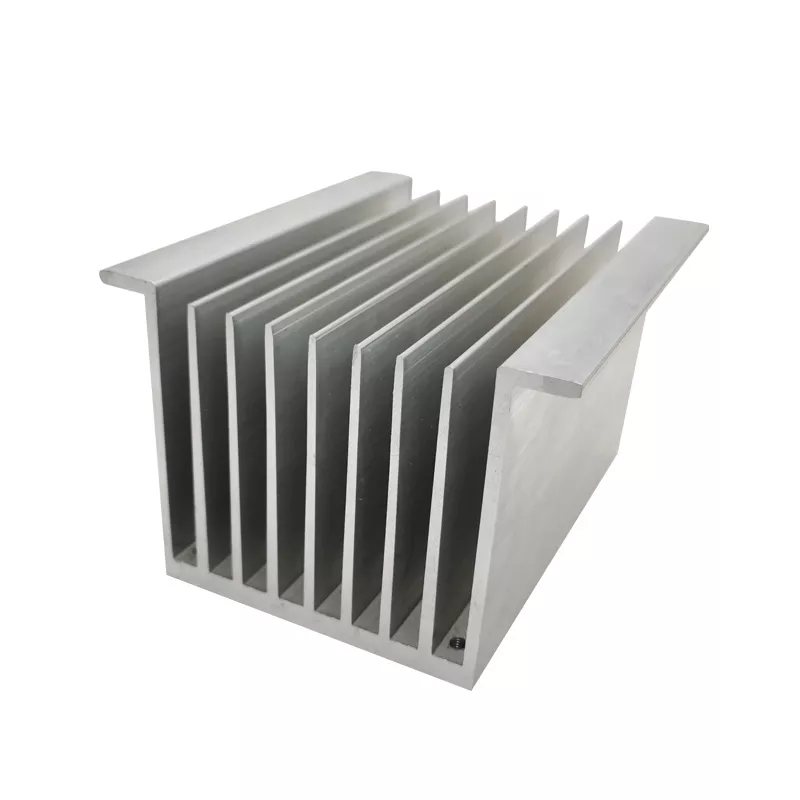

This profile has a row of tall parallel fins between side sections with outward mounting flanges. Specify the flange widths, base geometry and overall height, then locate mounting holes and any end features from those references.
For a custom aluminum extrusion enquiry, state the alloy and temper, cut length and required machining. Identify which surfaces contact the mating assembly and define any finish or flatness requirement there.
Explain the cooling arrangement
Provide the heat-source position, space around the fins, airflow conditions and thermal design requirement. Include quantities, surface-treatment details and the drawing revision for review.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
