Custom Drawing 6000 Series Anodized Industrial Aluminum Extrusion Profiles with Slotted Sections
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-2309
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
A section drawing makes the connector requirements clear

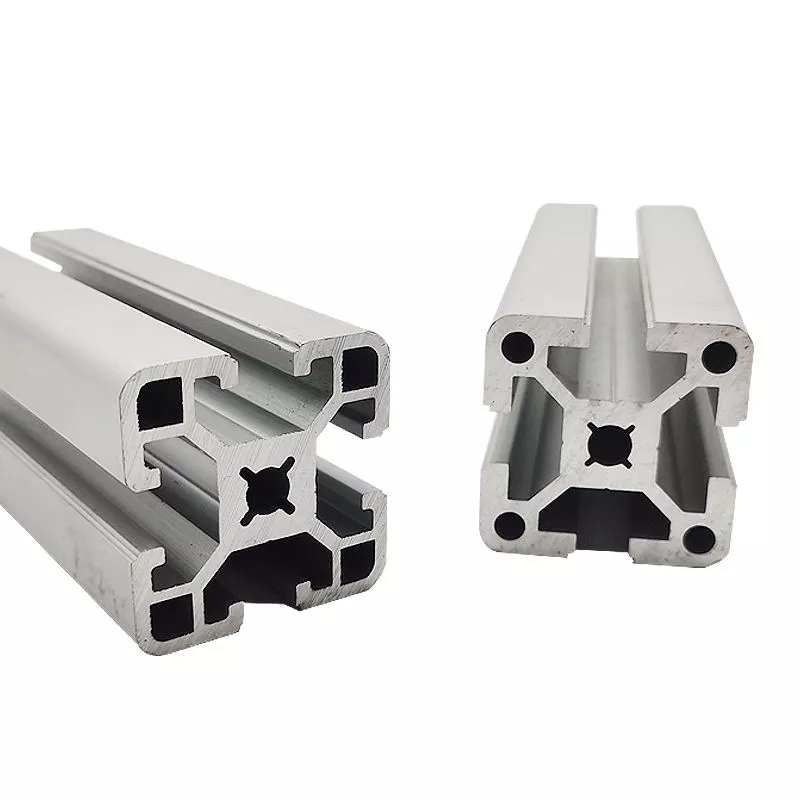

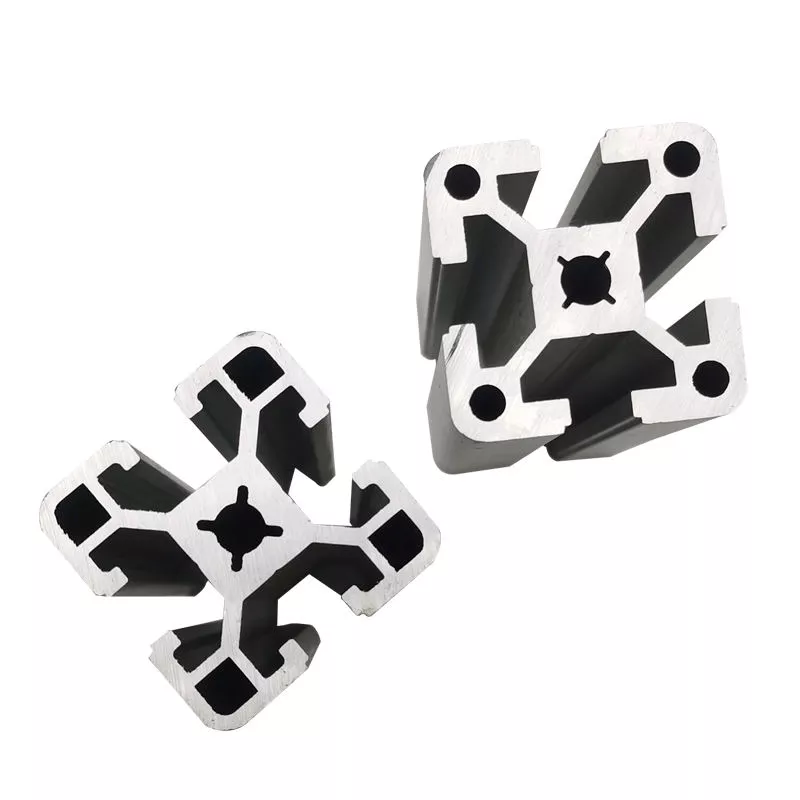

The two examples have hollow central geometry, circular corner openings and slots along their sides. Identify the selected section and dimension its slot entry, internal cavities and mating hardware interfaces; the examples do not define one universal framing connection.
For a custom 6000-series aluminum extrusion, state the selected alloy and temper. Provide cut lengths, end-hole or thread requirements and any secondary-machined locating surfaces.
Finish and assembly references
Specify anodizing or another required treatment with cosmetic and contact areas marked. Include the assembly drawing, quantities and the dimensions controlling alignment between joined sections, so the profile and connector can be reviewed together.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
