Custom Drawing Precision Aluminum CNC Milling Parts with Deep Pockets Ribs and Side Openings
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200444Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)

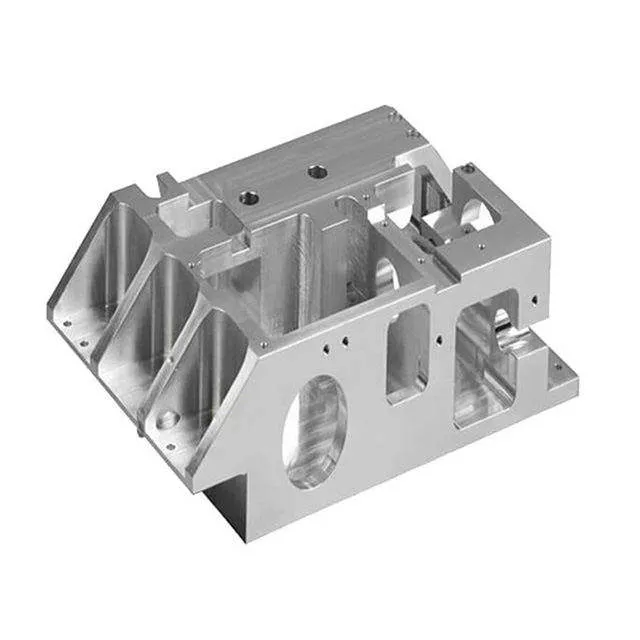

This machining example combines deep internal pockets with separating ribs, mounting features and openings in several outer faces. A complete drawing should relate the internal geometry to the external mounting references.
Pockets and mating interfaces
Specify pocket depths, remaining wall dimensions, opening locations and thread details. Include section views where they establish internal clearance.
Dmetal-200444 lists aluminum alloy and customized sizes. Anodized, oxide or powder-coated finishes can be reviewed with any fitted-face masking. Provide PDF, CAD, IGES or STEP files, revision, quantities and feature-level inspection requirements for quotation.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
