Qingdao OEM Custom ABS Plastic Injection Molding Parts with Curved Bracket and Clip Features
-
Model NumberDmetal2309Plastic Modling TypeInjection
-
Processing ServiceMoulding, CuttingApplicationCustom Palstic Parts
-
Drawing Format.pdf/ .stp/.stepProcessInjection Molding
-
MaterialPA66/PP/ABS /PC/ Glass Fiber, EtcKeywordCustom Plastic Injection Parts
-
NamePlastic InjectionMOQ100 pcs

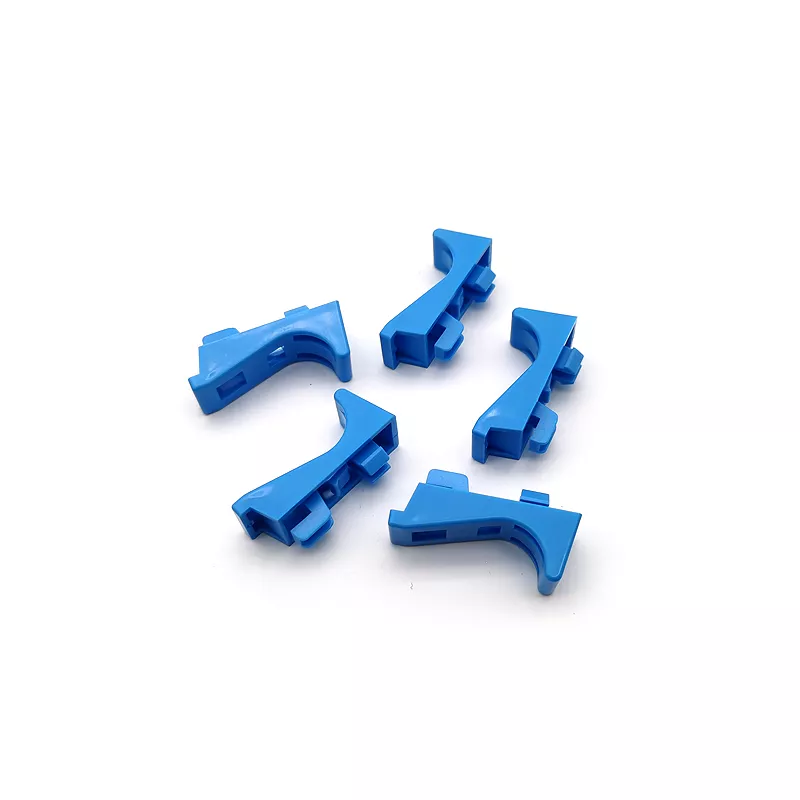

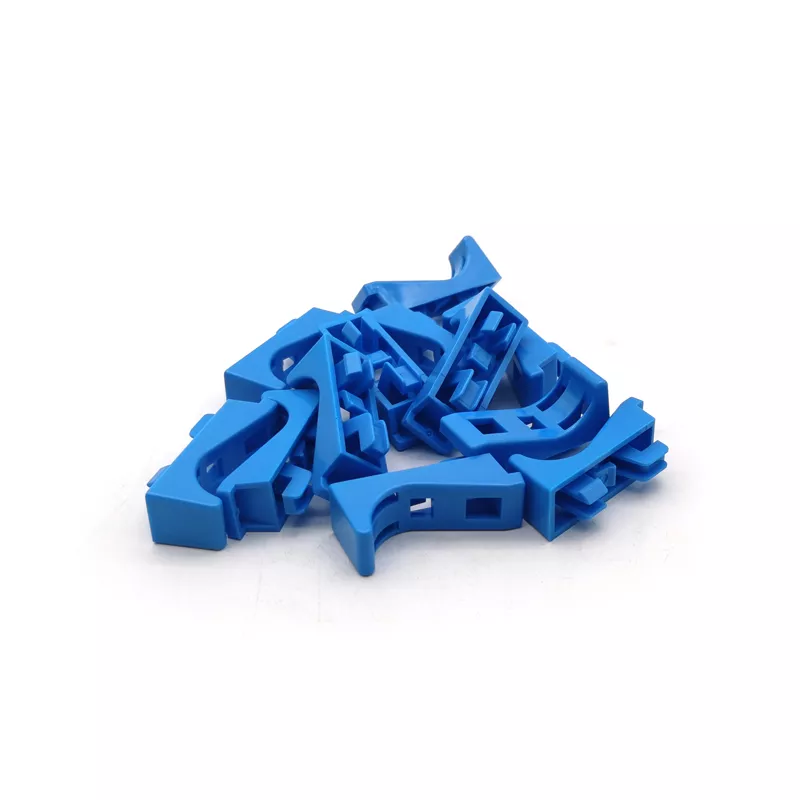

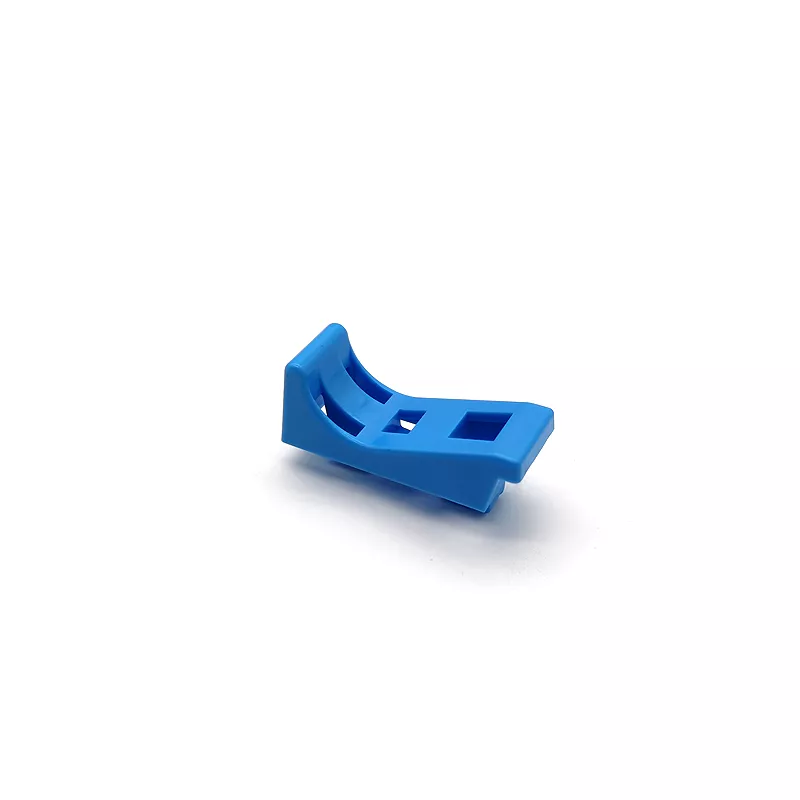

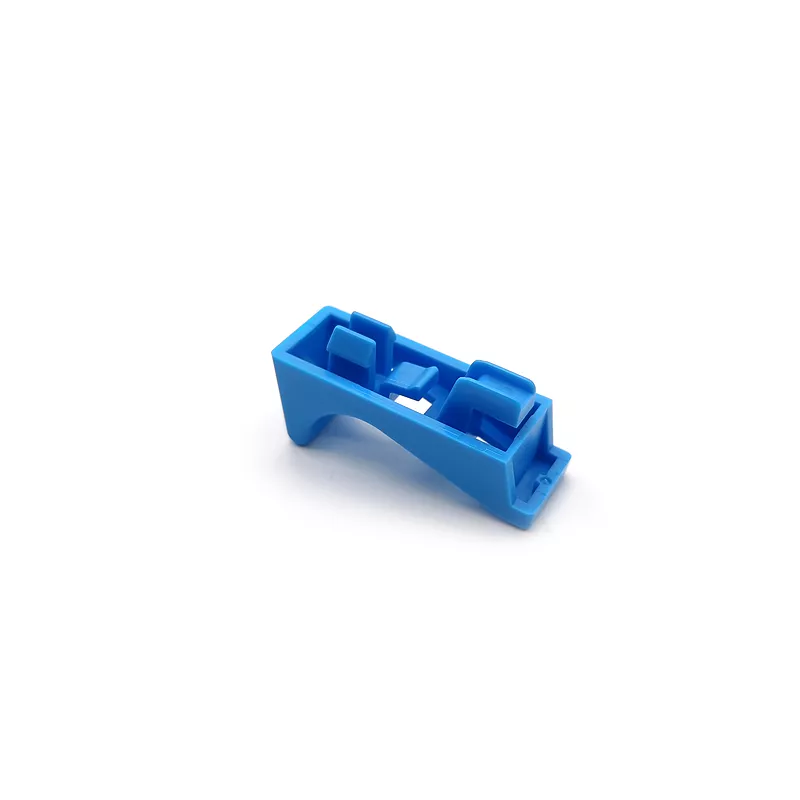

The Dmetal2309 example shows small molded plastic parts with curved edges, projecting tabs and openings in their sides. These bracket-like and clip-featured shapes require a defined mating interface. The enquiry should identify the actual component and orientation shown in the drawing.
Fit around the mating part
Specify the curved profile and the geometry of each tab and opening. Provide the mating-component dimensions and identify the faces that locate the molded piece. If a feature is intended to engage or retain another part, state the functional requirements and acceptance method for that design.
ABS is listed with PA66, PP, PC and glass-fiber material options for review. Specify the exact grade and any reinforcement requirement; neither the blue sample color nor the shape determines these properties. Injection molding and cutting form the listed processing scope.
Information for quotation
Supply PDF and STEP/STP files where available, quantities and the current revision. The listed minimum is 100 pieces. Include critical interface dimensions and any required material evidence. Retention force or repeated-use performance needs its own requirement rather than being inferred from a visible clip feature.
