Custom PP PA Nylon and ABS Injection Molded Plastic Parts with an Open Grooved Profile for Prototype Review
Generate QR code
Product description
Project & Delivery Requirements
-
Model Numberplastic injection partsPlastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingProduct namePlastic Injection Molding Custom Plastic Parts
-
ColorCustomizedSizeCustomized Size
-
MaterialPA66/PP/ABS /PC, EtcCertificationROHS
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag
Define the open end and grooved section

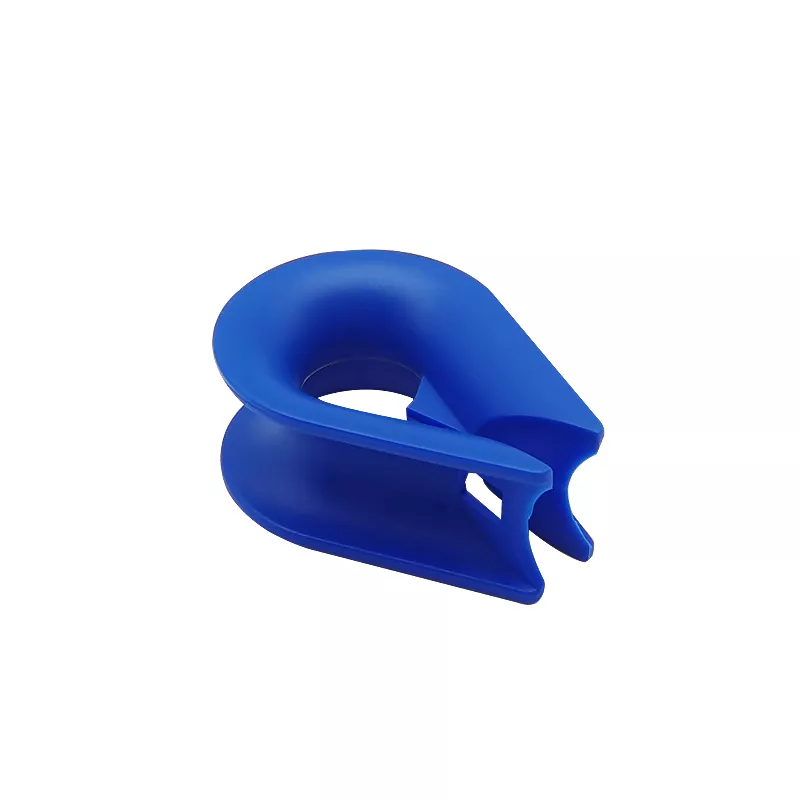

This example has a curved open profile with flared edges and a shaped slot at the open end. A sectioned drawing should define the groove depth, edge thickness, central opening and the surfaces that locate it against the mating component.
For prototype review, specify the selected PP, PA66 nylon or ABS grade and the quantity needed before production tooling is agreed. Injection molding, cutting and painting are listed processes, with customer-defined size, shape and color and a matte finish. State the fit and inspection requirements for the actual design; the photograph supplies no load or wear-life rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
