Custom CNC Turned Steel Component Enquiries with Internal Threads, External Threads and Hexagonal Wrench Faces
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2012Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

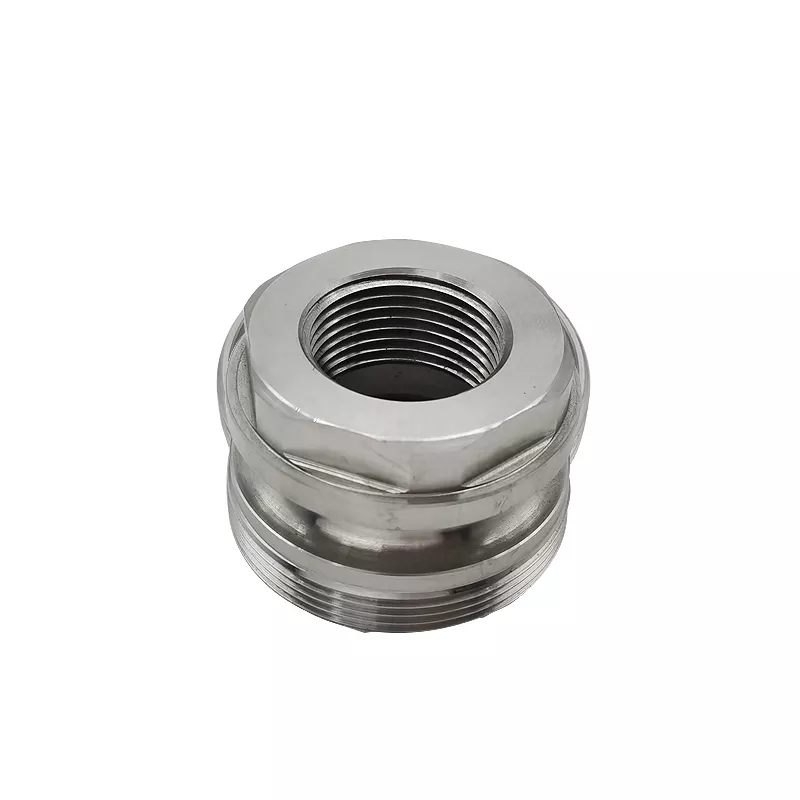

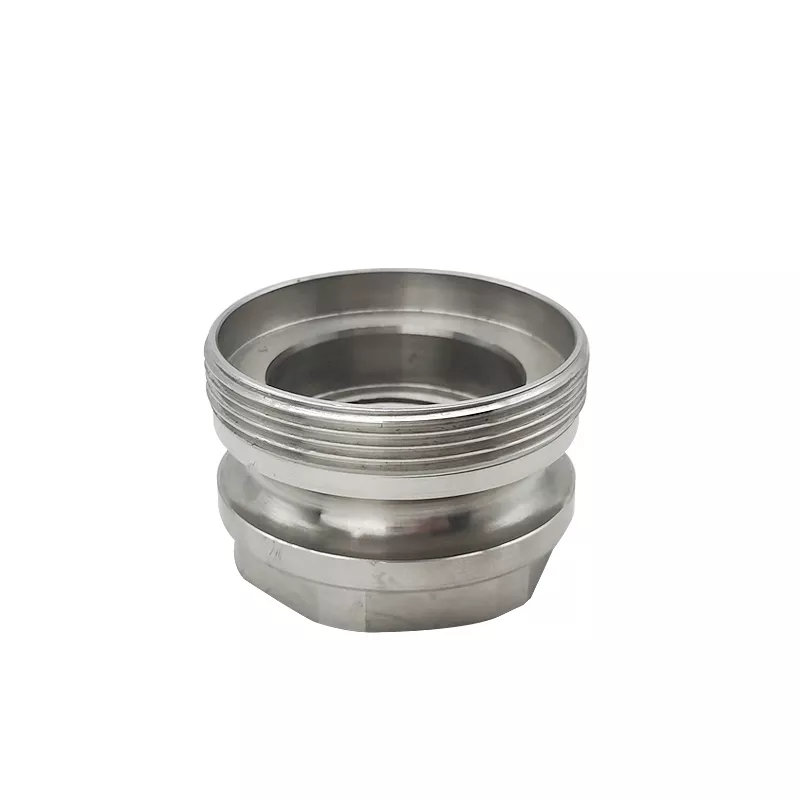

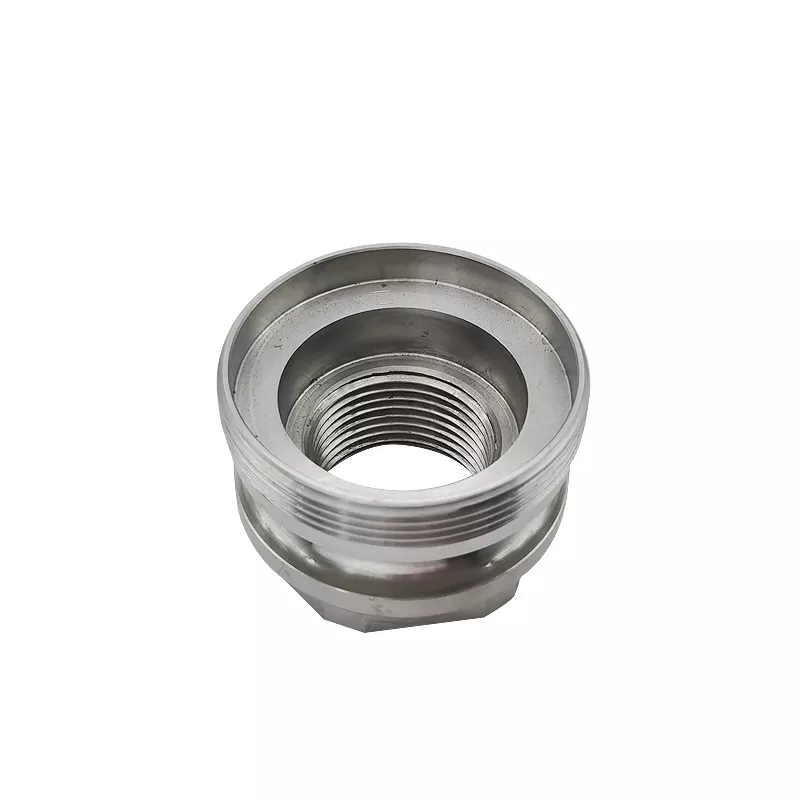

The example has a hexagonal wrench section around an internal thread, stepped shoulders and an external threaded portion. Define the relationship between the two threads and the seating faces in section, including engagement lengths and any required reliefs.
Thread acceptance and material selection
Model 2012 lists steel among available machining materials alongside the named aluminum alloy. Confirm the actual grade for your enquiry. CNC turning, milling and drilling, PDF, CAD, IGES and STEP drawing formats, and MOQ 100 are listed. Include quantities, thread standards, inspection gauges and finish requirements. Agree acceptance criteria for the finished component without inferring sealing or pressure performance from its shape.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
