Custom Aluminum Sheet Metal Fabrication Parts with Formed Brackets Rings and Mounting Plates
-
Model NumberS2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

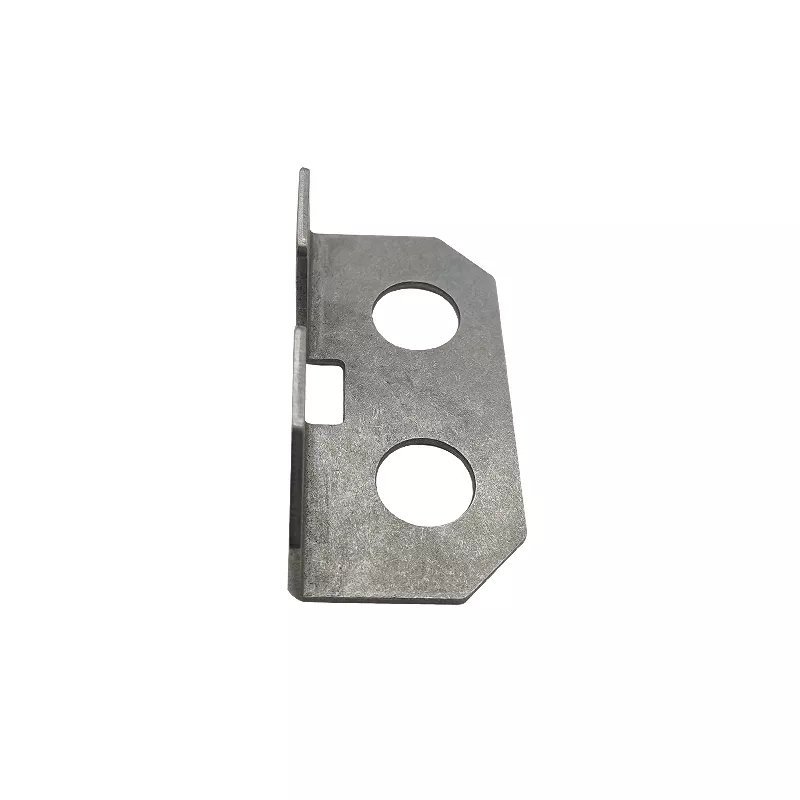

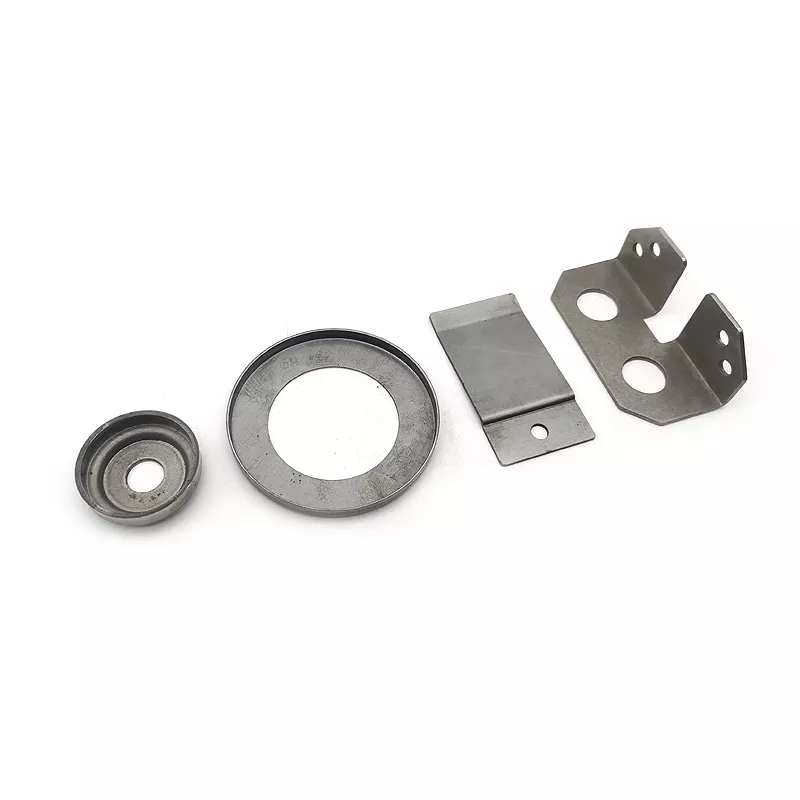

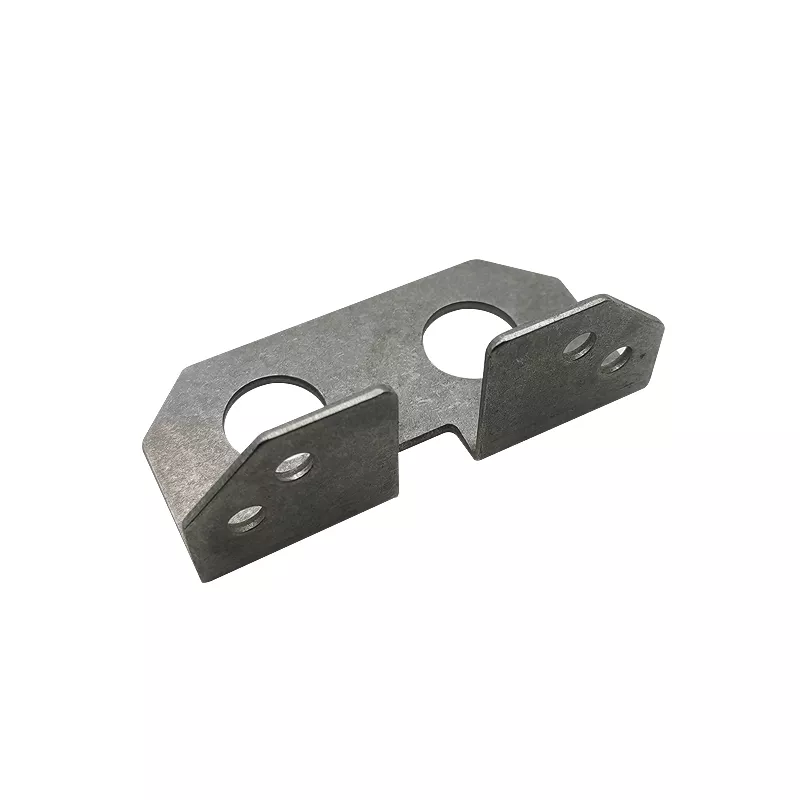

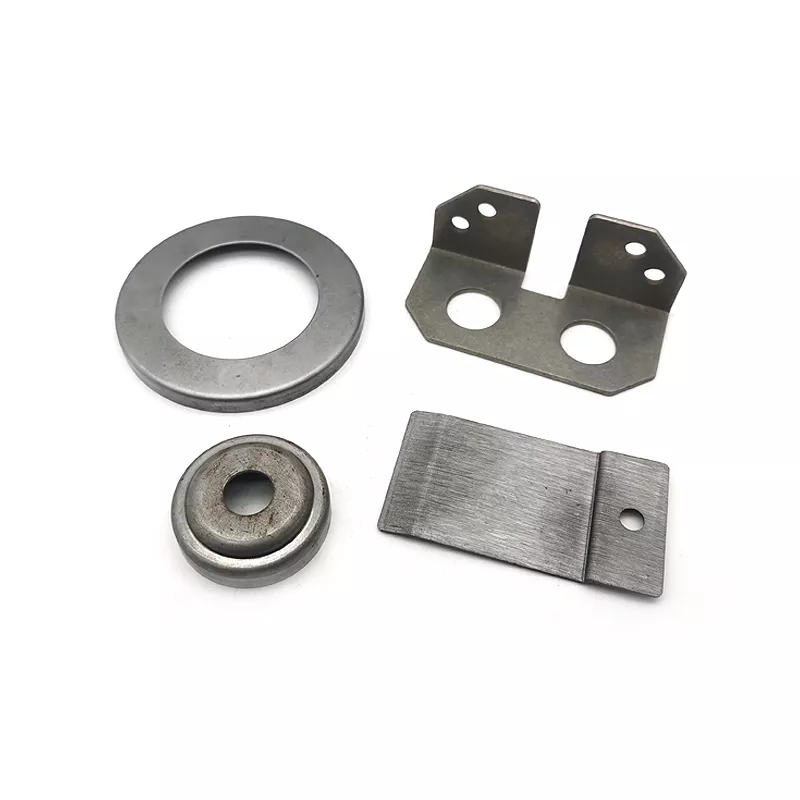

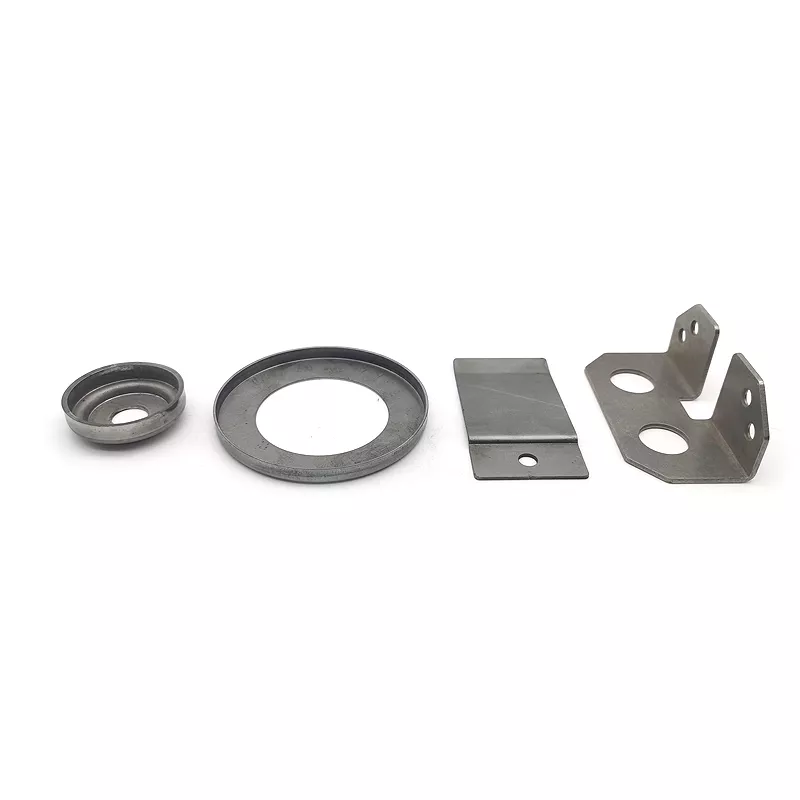

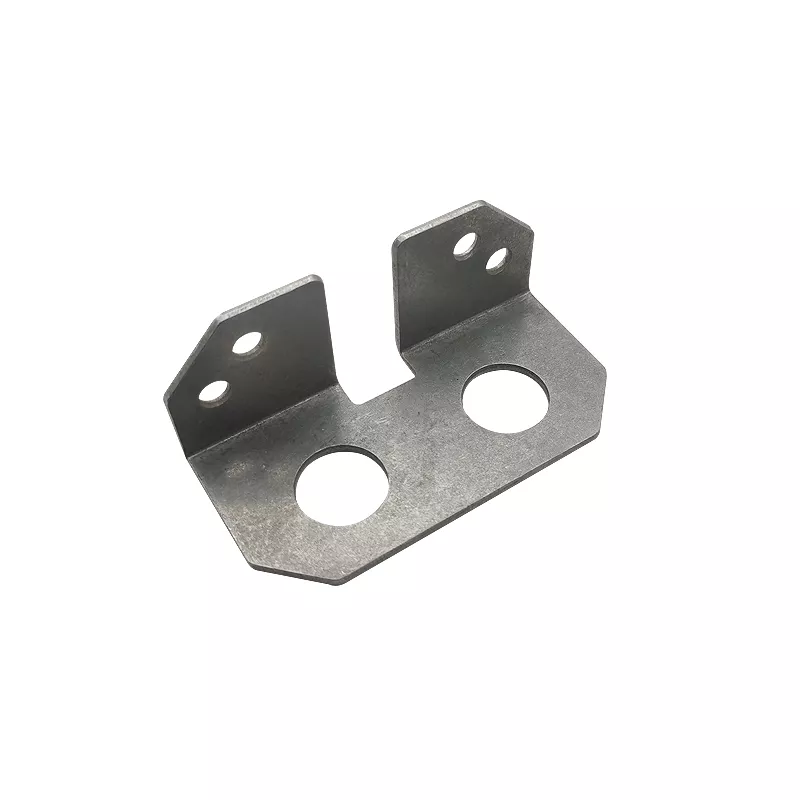

This S2407R fabrication enquiry illustrates separate ring forms, a bracket with upright tabs and a stepped mounting plate. Select the actual component for quotation. Aluminum is a listed material option, with steel, copper, stainless steel 316 and brass also available for project review.
Define each ordered piece
For a ring, specify the inner and outer profile and any formed depth. For a bracket or plate, show the hole pattern, tab positions and contact faces. Provide the grade and thickness for each design rather than treating the pictured selection as a single fixed-material kit.
The source includes laser cutting, bending and stamping, with drilling and assembly where needed. State the required surface condition and select painting, powder coating, plating or polishing for the actual material and component.
Documents and supply scope
Send drawing revisions and quantities per part number, with dimensional inspection points. Identify any companion pieces included in the order and the required packing protection. Confirm material evidence and finished interfaces before production.
