Custom CNC Turned Stainless Steel Component Enquiries with Cylindrical Bodies, Threaded Ends and 5 Axis Setup Review
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes

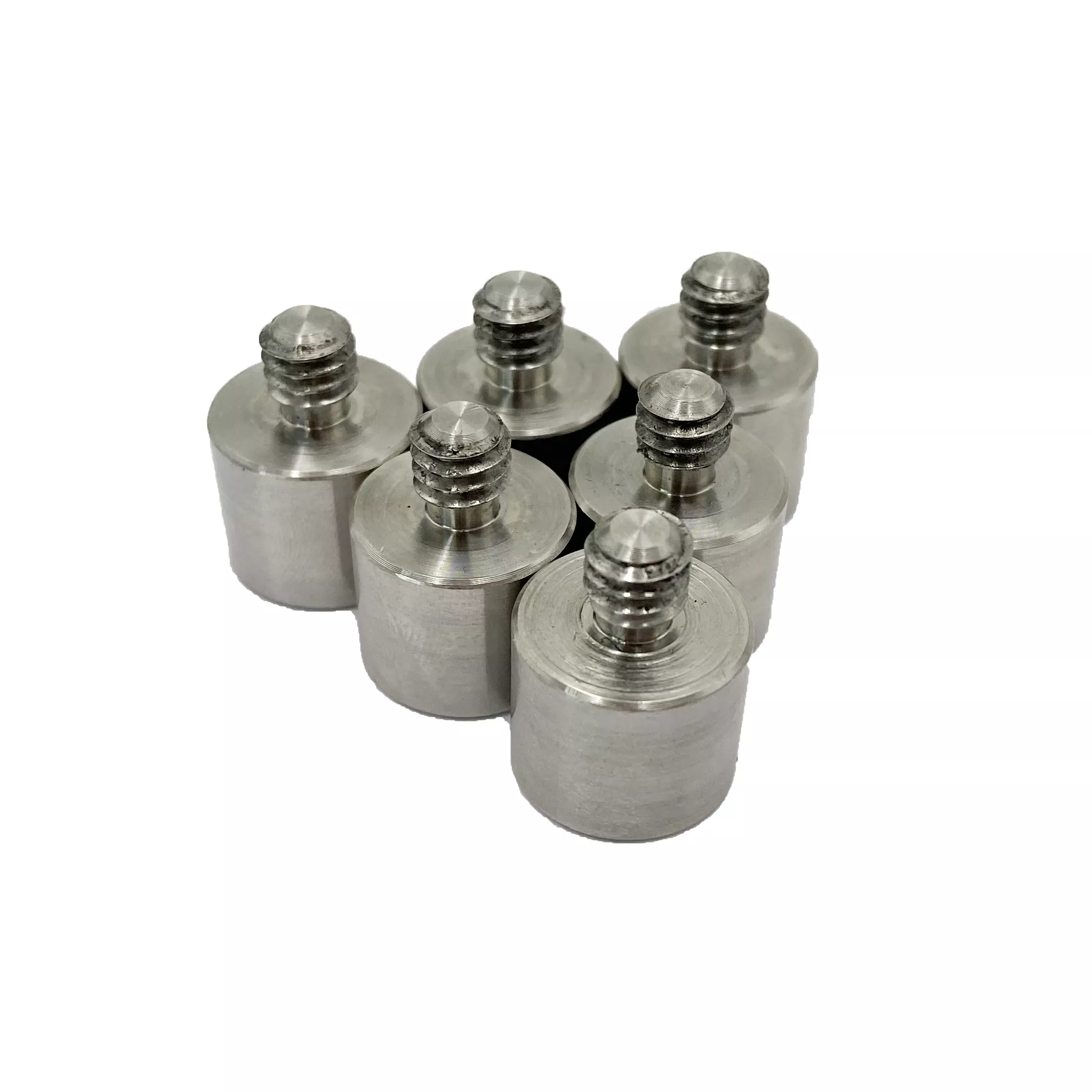

The examples combine cylindrical bodies with external threaded ends and central openings in the opposite faces. Dimension the body, thread and opening from the same axis, and define the seating surfaces against the mating parts.
Thread and machining setup review
Model Dmetal lists CNC turning and milling, with stainless steel among the machining capabilities. Specify the required grade, quantities and inspection dimensions in PDF, CAD, IGES or STEP drawings. Identify any five-axis requirement separately so the setup can be reviewed for the actual geometry. Agree the appropriate surface treatment and define the thread acceptance requirements; neither alloy grade nor thread size can be determined from the image.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
