OEM Custom Precision 5 Axis Aluminum CNC Milling Parts with Open Frame Housings and Anodizing
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200444Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)

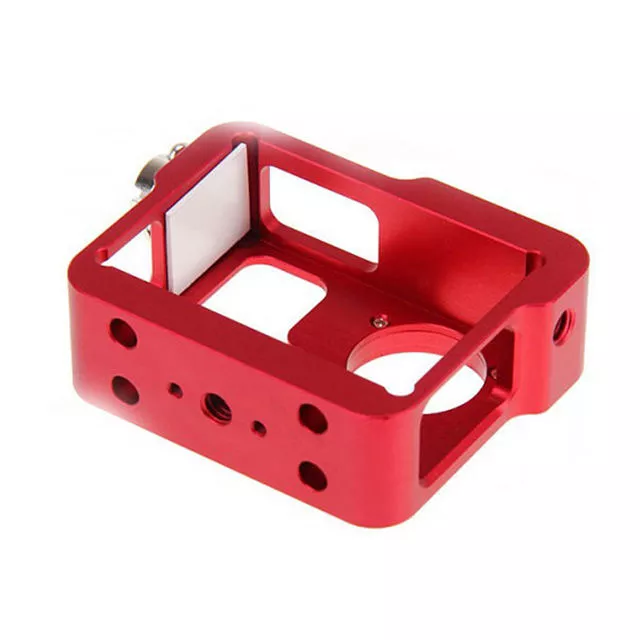

Open frame with openings on several faces
The illustrated housing has side windows, a circular opening and multiple fixing holes. Define its wall thicknesses, opening positions and threaded features from the mounting references.
For a 5 axis CNC milling enquiry, mark the faces requiring machining access and provide the mating-component clearances. Dmetal-200444 lists aluminum alloy, custom sizes and anodized, oxide or powder-coated finishes. Include the selected alloy and finish, masking requirements and PDF, CAD, IGES or STEP drawing revision. Supply quantities and inspection criteria for the finished housing.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
