Custom 6061 6063 Extruded Aluminum Heat Sink Profiles with Machined Mounting Features
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-200329
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6061 6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Match the mounting features to the selected profile

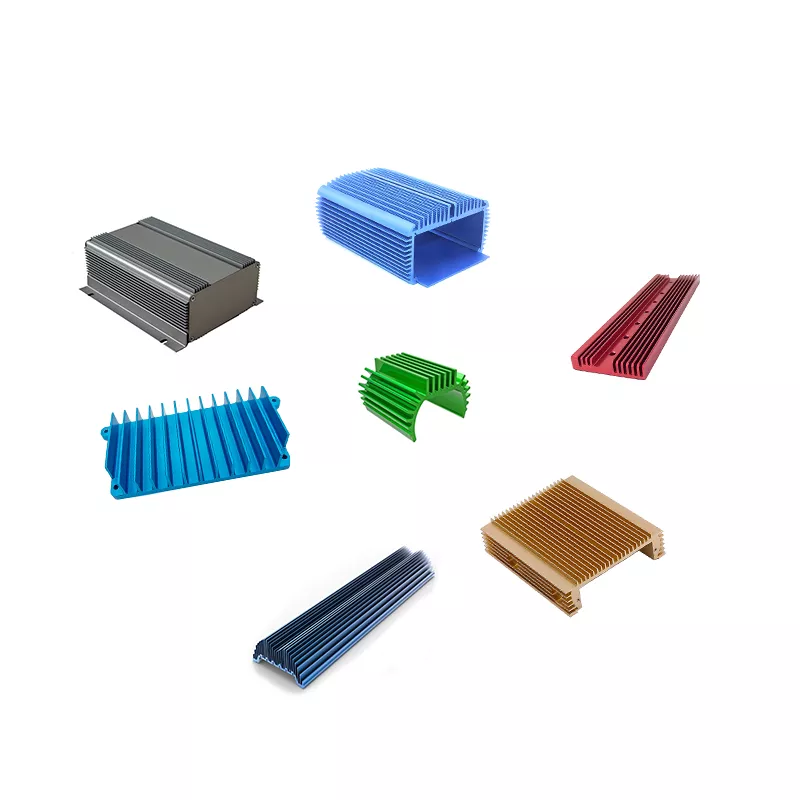

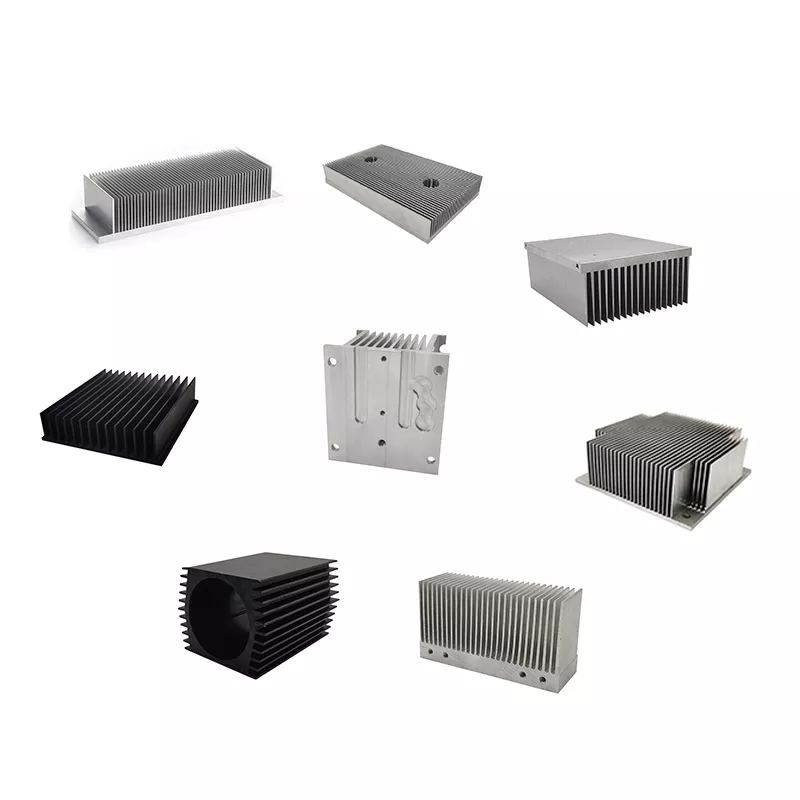

The range includes finned plates, housings and sections with mounting wings or machined openings. Identify the required component on a drawing and show the features that connect it to the heat source and surrounding assembly.
Specify the aluminum section
State whether 6061 or 6063 is required, with the temper, complete cross-section and cut length. Dimension the mounting holes, contact surfaces and any secondary-machining features for that part.
Provide the thermal design requirement and installation conditions, including airflow and available clearance. Add the finish, quantities and drawing revision; list multiple required components separately so each has a defined specification.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
