Custom 6061 Aluminum Extrusion Heat Sink Profiles with Parallel Fins, Mounting Flanges and Machining Options
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel NumberS 2301
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysMaterial6063/ 6061 etc
-
MachiningAvailableSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfSurface ColorCustomized Panton Colors

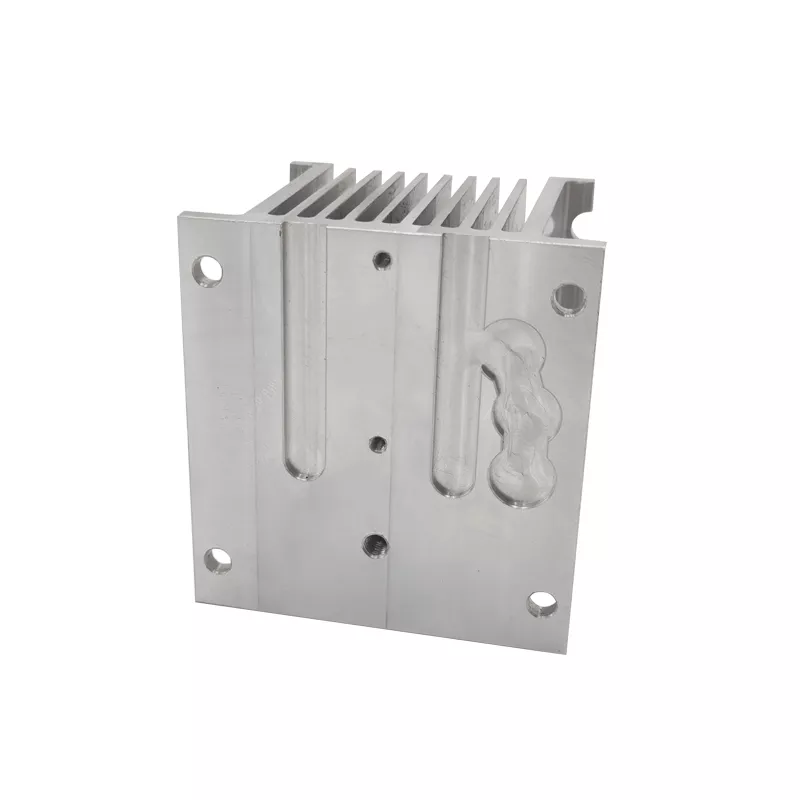

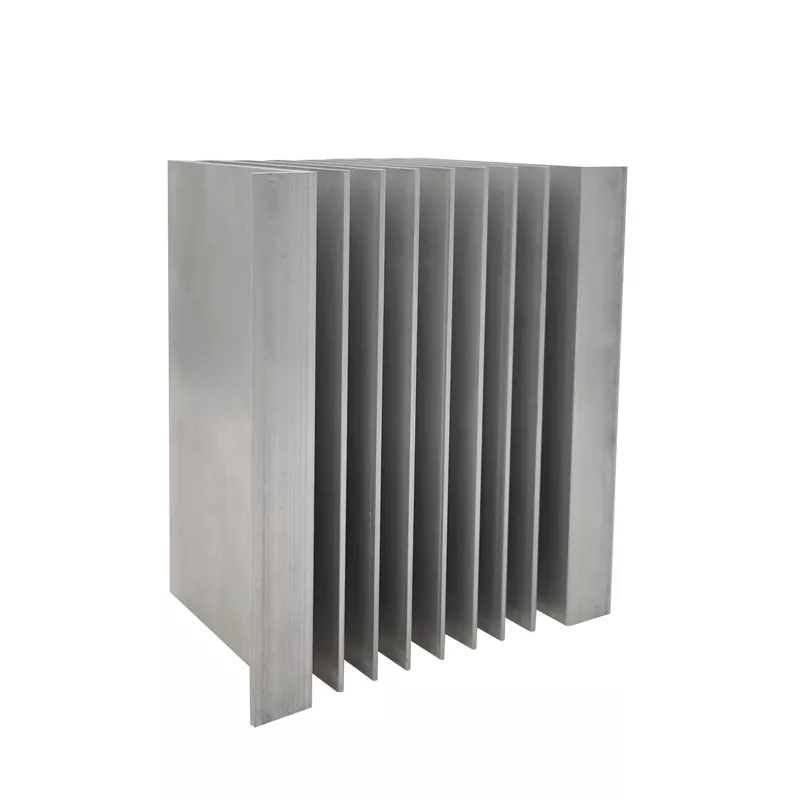

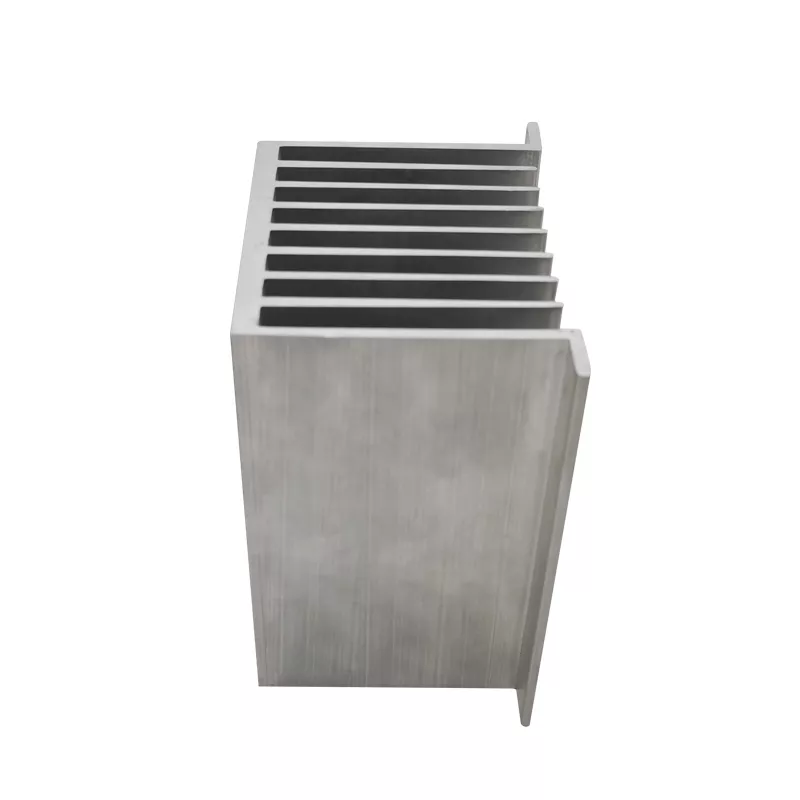

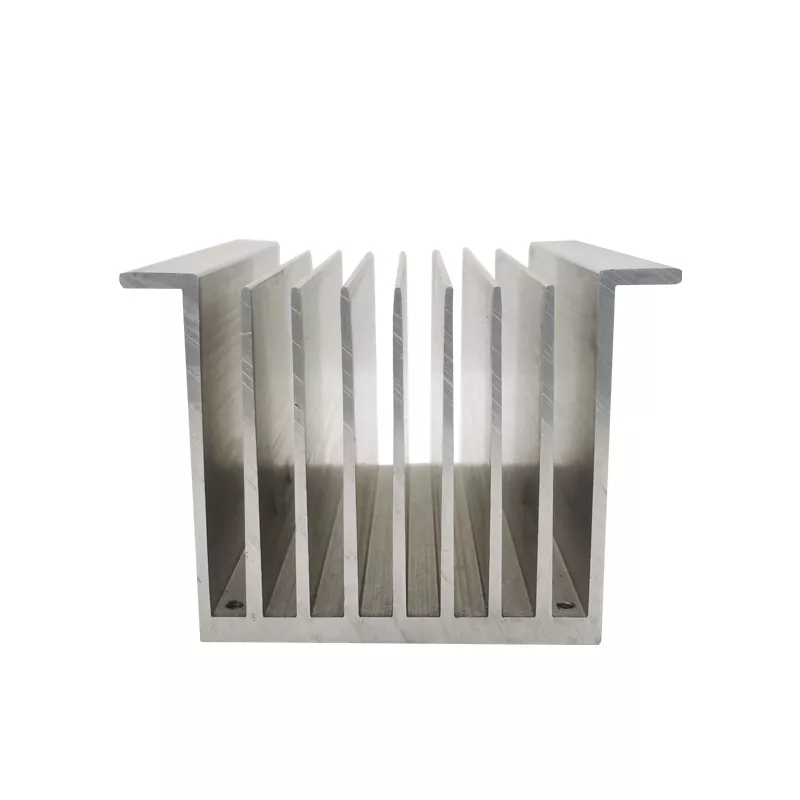

The examples show several parallel-fin layouts, including profiles with extended mounting flanges and fixing holes. Select the required outline and identify the contact face, fixing positions and clearance around the fins.
Material and cooling conditions
6061 and 6063 aluminum are listed for model S 2301, with machining and anodized, oxide or powder-coated finish options. Provide the alloy, temper, profile length and quantities, together with the base thickness and fin geometry. For thermal review, include heat input, airflow, mounting orientation and allowable temperatures. Define any flatness or hole requirements on the drawing; the examples do not specify a tested heat dissipation capacity.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
