Custom Industrial Aluminum Extrusion Brackets with Slotted Mounting Tabs and CNC Machining
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel NumberS2310
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysProduct nameCustom CNC Machining Aluminum Extrusion Profiles
-
Material6063/ 6061 etcMachiningAvailable
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
Surface ColorCustomized Panton Colors
Angled arms and mounting tabs

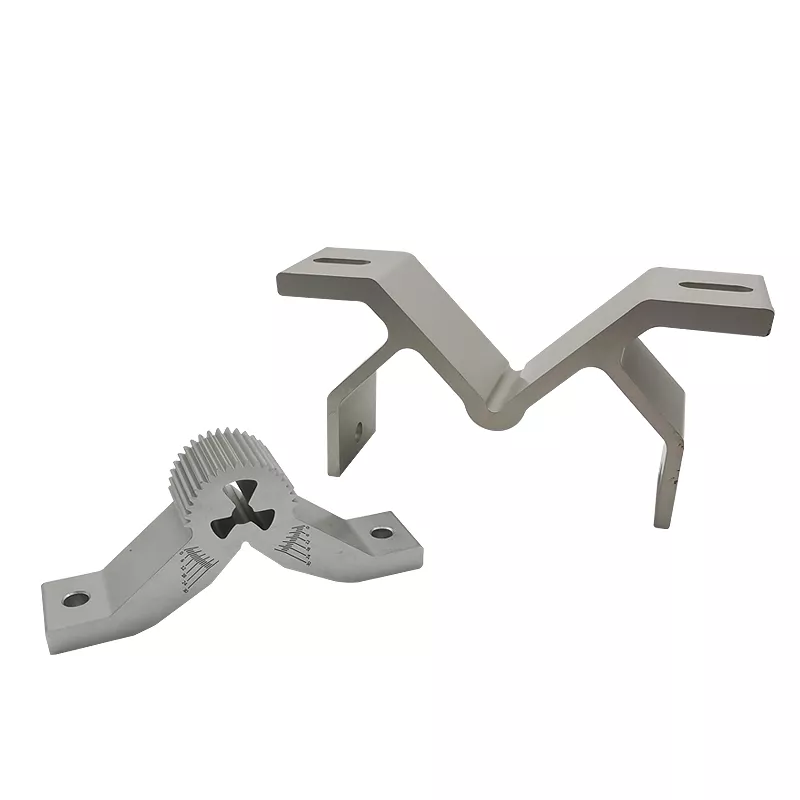

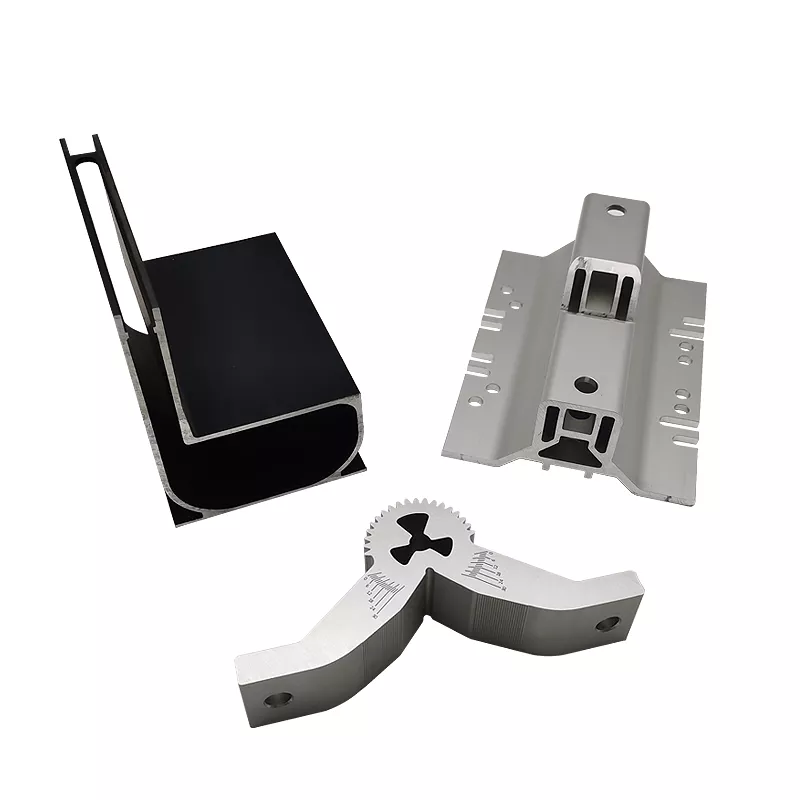

The illustrated components combine angled arms with fixing tabs. One example has elongated slots, while another has a curved, toothed-looking section and round fixing holes. Identify the actual bracket design required; the pictured examples should not be assumed to share one mounting pattern.
Supply the arm geometry, tab positions, section details and hole or slot dimensions. Show the adjoining parts where they control clearance or final alignment. If the curved section forms a working interface, define that interface and its acceptance requirements on the drawing.
Material and manufacturing scope
The listing offers custom aluminum profiles with 6063 and 6061 material options and CNC machining. Specify the alloy, temper and the operations needed for the selected bracket. No load capacity or adjustment range is established by the image.
Anodized, oxide and powder-coated finishes are available for consideration. Include the required color, fitted-face condition, quantity and drawing revision so machining, finishing and dimensional inspection can be agreed for the supplied component.
